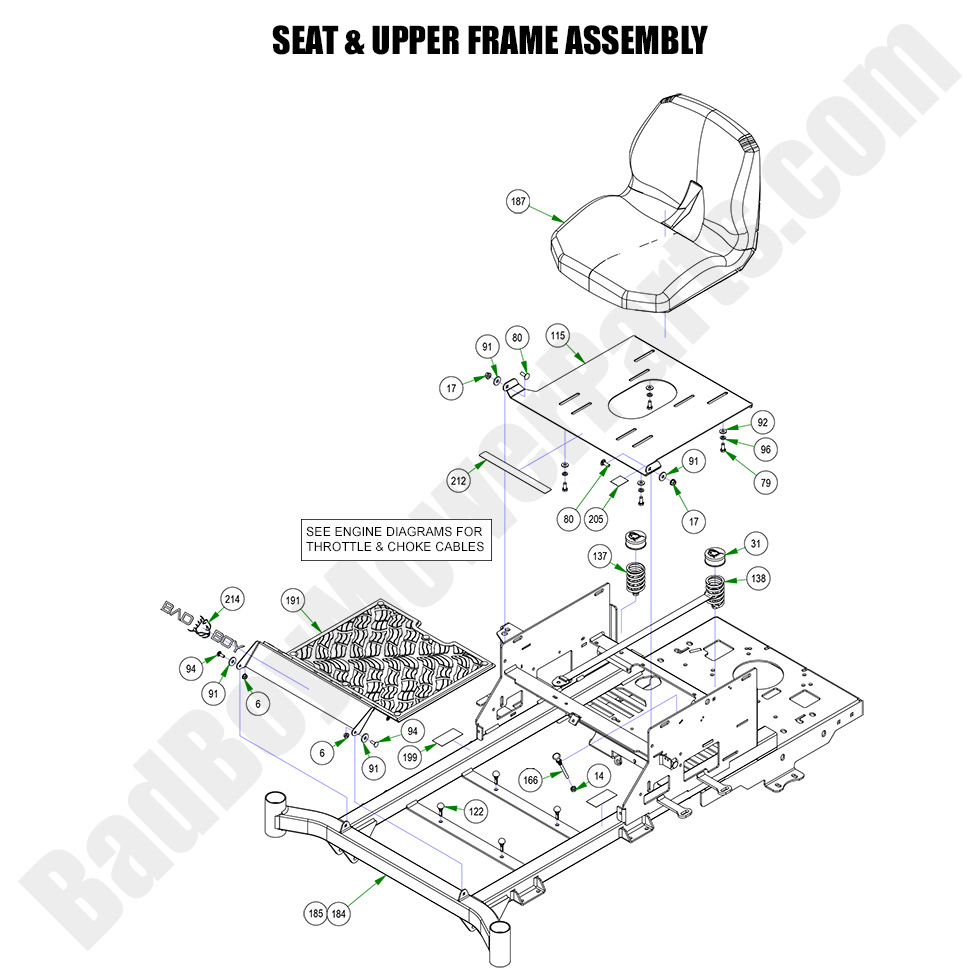

2023 MZ Magnum - Seat & Upper Frame Assembly

2023 MZ Magnum - Seat & Upper Frame Assembly

Upgrade the durability and style of your mower with the 2023 MZ Magnum Seat & Upper Frame Assembly, designed for superior comfort and robust support. This assembly combines a well-crafted seat with a durable upper frame, ensuring enhanced stability and an ergonomic riding position. Detailed assembly instructions and part schematics are available at Bad Boy Mower Part diagrams on BadBoyMowerParts.com, providing valuable guidance for proper installation. Order certified Bad Boy Mower Parts and original Bad Boy Lawn Mower Parts conveniently via Bad Boy Parts Online. Enjoy Free Shipping On Orders Over $100 when you invest in this key assembly, delivering both performance and aesthetic appeal. Engineered for long-lasting strength and tested under rigorous conditions, the seat and upper frame assembly is perfect for both routine maintenance and complete system upgrades, offering a reliable and comfortable experience for every user. Experience unmatched quality and comfort with every installation, guaranteed total excellence

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Seat & Upper Frame Assembly
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
14 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
31 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
79 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
80 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
91 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
92 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
94 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
115 026-2017-00 026-2017-00 - MZ Seat Plate (See Models Used On For Details)
$129.99
122 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
137 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
138 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
187 071-1000-22 071-1000-22 - 2022 - 2024 Magnum Seat
$429.99
199 091-0214-00 091-0214-00 - LH/RH Steering Control Decal (See Models Used On For Details)
$9.34
205 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
212 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
214 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
