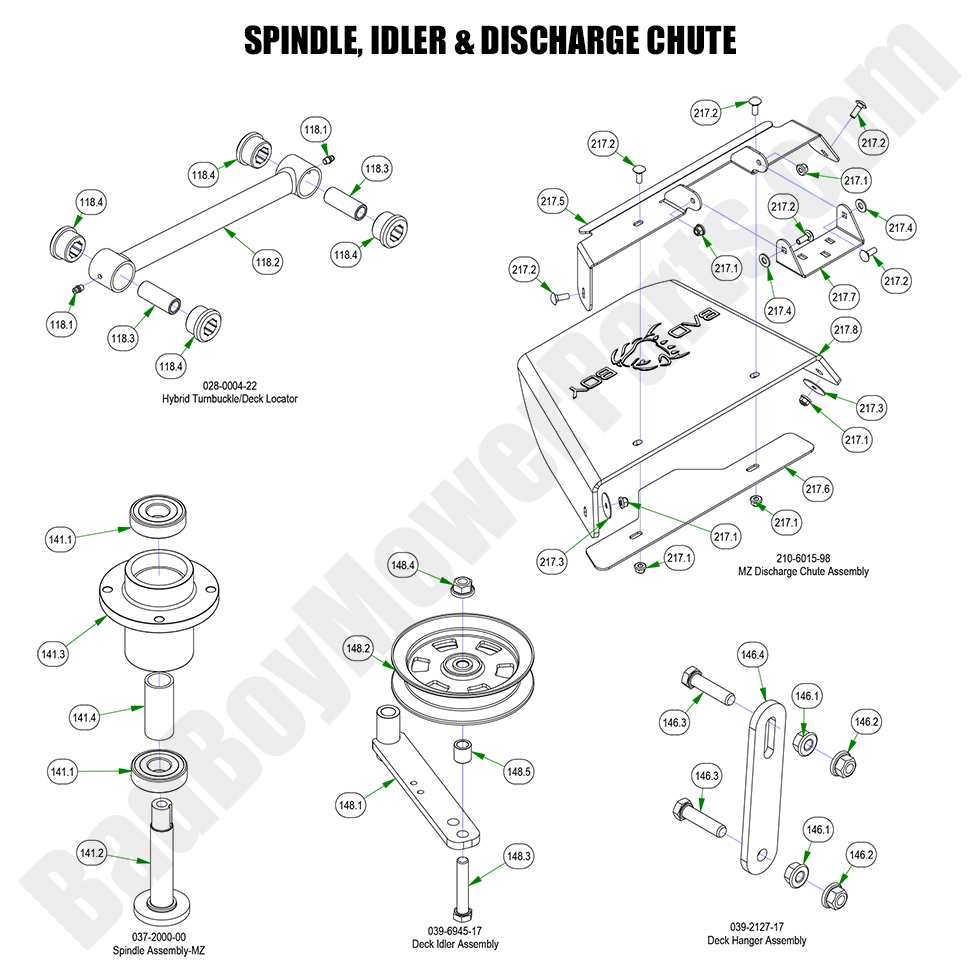

2023 MZ Magnum - Spindle, Idler & Discharge Chute

2023 MZ Magnum - Spindle, Idler & Discharge Chute

Enhance the efficiency of your mowing system with the 2023 MZ Magnum Spindle, Idler & Discharge Chute assembly, engineered for optimal material flow and reliability. This integrated assembly is crucial for directing grass clippings and debris, ensuring a clean and efficient cutting process. Detailed assembly diagrams and component insights are available at Bad Boy Mower Part diagrams on BadBoyMowerParts.com, providing essential guidance for correct installation and operation. Purchase authentic Bad Boy Mower Parts and original Bad Boy Lawn Mower Parts conveniently via Bad Boy Parts Online to maintain peak performance. Enjoy Free Shipping On Orders Over $100 when you invest in this assembly, which is built to last and withstand rigorous use. Constructed with precision and high-quality materials, the spindle, idler, and discharge chute work in unison to enhance efficiency, reduce clogs, and improve overall mower functionality, making them a must-have upgrade for serious lawn care enthusiasts. Performance guaranteed daily.

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
118.0 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
118.1 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
118.3 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
118.4 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
141.0 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
141.1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
141.2 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
141.3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
141.4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
146.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
146.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
146.2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
146.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
146.4 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
148.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
148.1 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
148.2 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
148.3 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
148.4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
148.5 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
217.0 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
217.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
217.2 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
217.3 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
217.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
217.5 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
217.6 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
217.7 206-6020-00 206-6020-00 - Chute Hanger
$28.39
217.8 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
