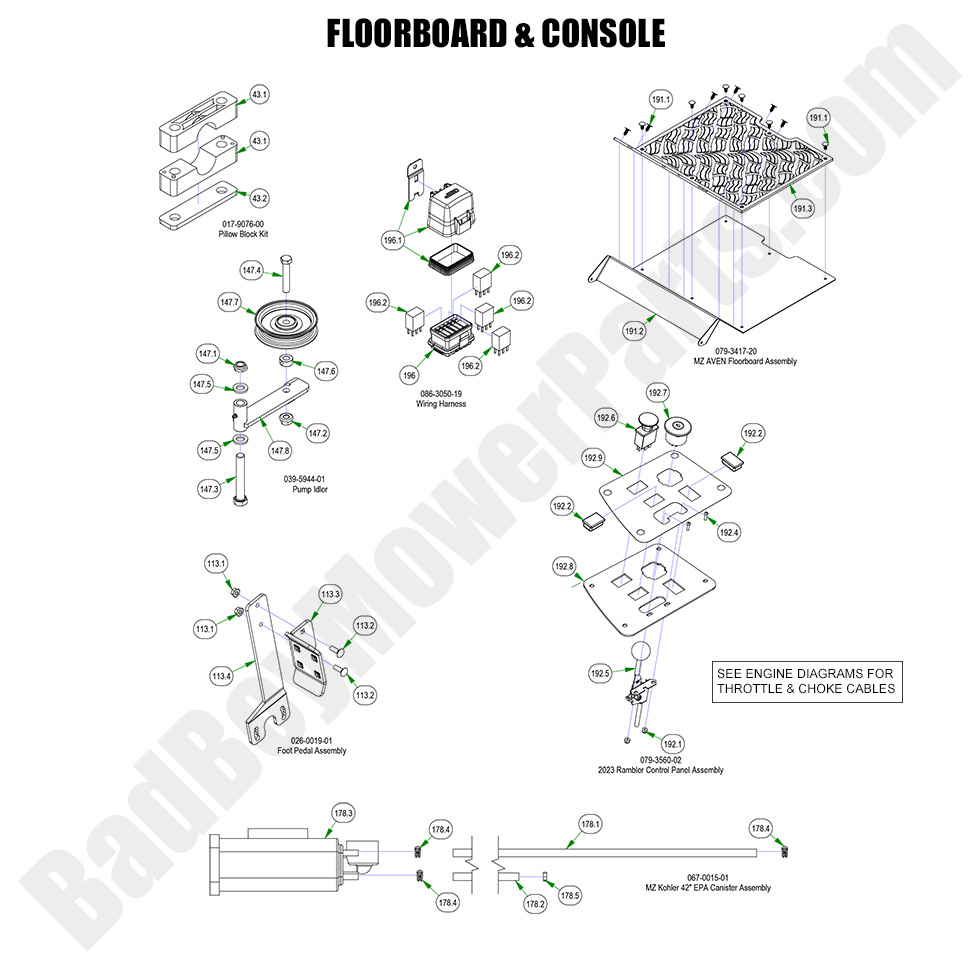

2023 MZ Rambler - Floorboard & Console - Detail

2023 MZ Rambler - Floorboard & Console - Detail

The 2023 MZ Rambler Floorboard & Console - Detail is a key part of the mower’s design, offering both comfort and functionality for the operator. The floorboard and console are engineered for easy access to controls, while also providing a stable platform to support the user during operation. If you need to replace or upgrade these parts, BadBoyMowerParts.com has a full selection of Bad Boy Mower Parts designed specifically for the 2023 MZ Rambler. Our Bad Boy Mower Part diagrams allow you to easily find the exact floorboard or console pieces you need. We also carry other related Bad Boy Lawn Mower Parts to ensure your mower’s overall performance remains optimal. By shopping at BadBoyMowerParts.com, you can get all your replacement parts delivered with Free Shipping On Orders Over $100, making maintenance simple and affordable

Bad Boy Mower Parts Lookup

2023 MZ Rambler - Floorboard & Console - Detail
  Position Number SKU Product Title Price
43.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
43.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
43.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
113.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
113.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
113.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
113.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
113.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
147.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
147.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
147.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
147.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
147.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
147.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
147.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
147.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
147.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
178.0 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
178.1 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
178.2 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
178.3 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
178.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
191.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
191.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
191.2 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
191.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
192.2 018-1040-00 018-1040-00 - Light Plug
$2.99
192.4 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
192.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
192.7 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
192.8 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
196.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
196.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
196.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
