Click Image to Change Diagram

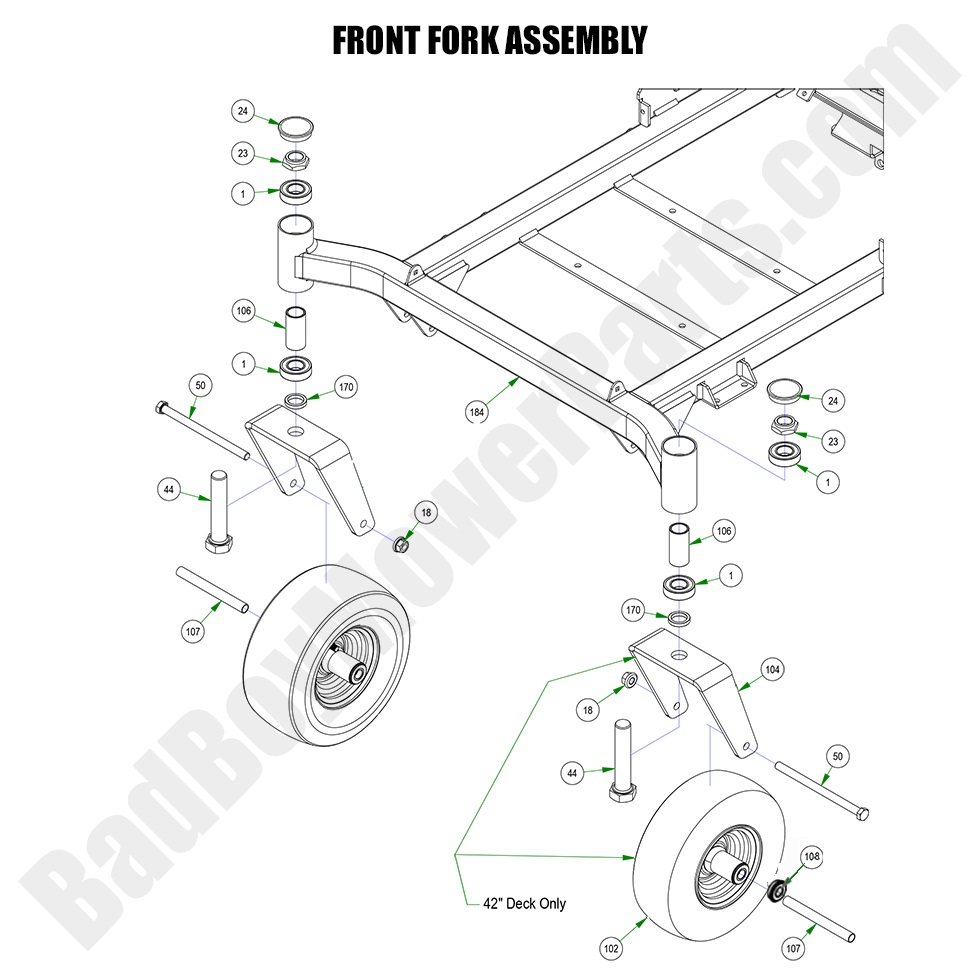

The 2023 MZ Rambler Front Fork Assembly is a crucial part of your mower’s steering and suspension system, providing stability and smooth operation as you navigate your lawn. If your front fork assembly needs replacement or repair, BadBoyMowerParts.com offers the parts you need to keep your mower performing at its best. We offer a full range of Bad Boy Mower Parts and Bad Boy Mower Part diagrams, so you can easily find the right components for your 2023 MZ Rambler. Whether you need new fork arms, bearings, or bushings, our parts are of the highest quality and designed for easy installation. You’ll also find other Bad Boy Lawn Mower Parts to ensure your mower remains in peak condition. Enjoy the convenience of Free Shipping On Orders Over $100 when you shop for your replacement parts with us.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 010-1050-00 | 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$18.39
|
||
18 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
23 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
24 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
||
44 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc |
$7.69
|
||
50 | 018-0035-00 | 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt |
$4.83
|
||
102 | 022-8051-22 | 022-8051-22 - 11 x 4.00 - 5 Front Tire Assembly (Black) |
$57.67
|
||
104 | 023-0005-00 | 023-0005-00 - MZ 8mm Front Fork 42" only |
$42.58
|
||
106 | 025-0003-00 | 025-0003-00 - Front Bearing Spacer |
$14.04
|
||
107 | 025-0008-00 | 025-0008-00 - Front Wheel Spanner - MZ |
$15.60
|
||
108 | 022-7009-00 | 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier |
$13.36
|
||
170 | 058-1000-00 | 058-1000-00 - MZ Bar Stop |
$6.41
|
