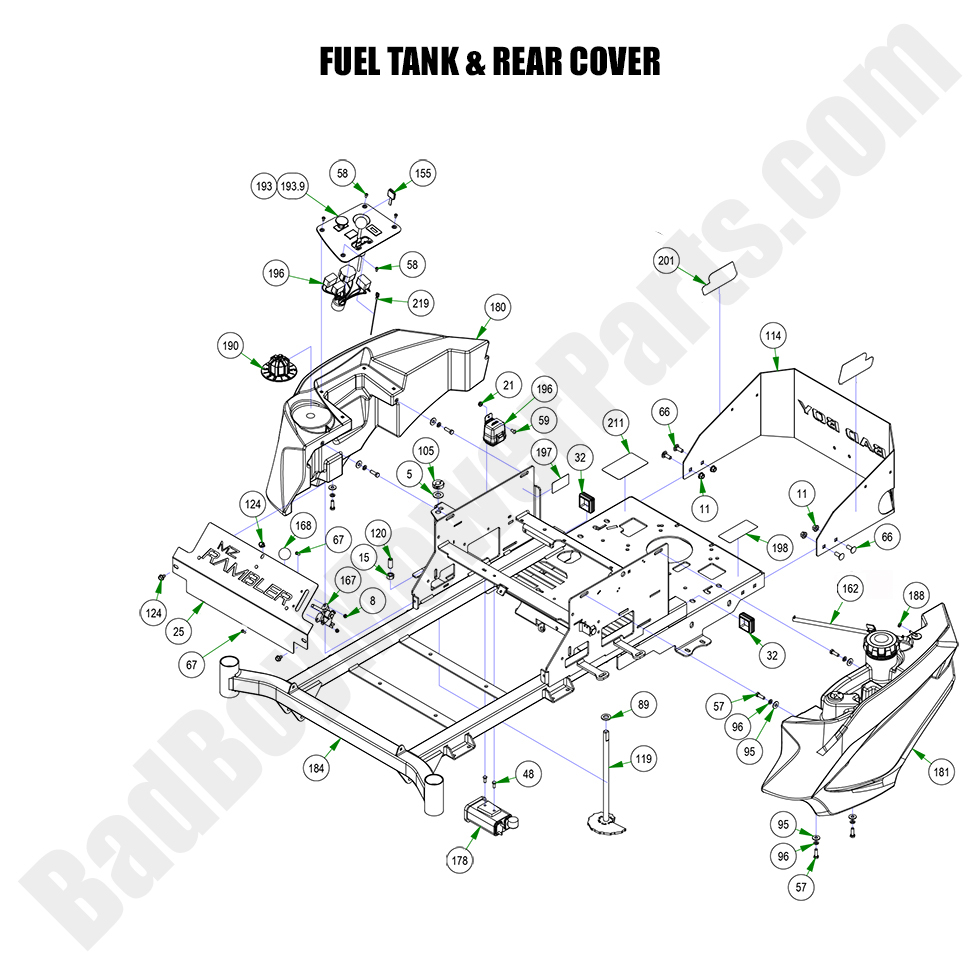

2023 MZ Rambler - Fuel Tank & Rear Cover

2023 MZ Rambler - Fuel Tank & Rear Cover

The 2023 MZ Rambler Fuel Tank & Rear Cover are vital components for your mower’s fuel system and overall durability. The fuel tank ensures you have a reliable source of fuel for extended mowing sessions, while the rear cover helps protect internal components from debris and damage. If you're in need of these parts, BadBoyMowerParts.com offers an extensive selection of Bad Boy Mower Parts tailored to the 2023 MZ Rambler. With our clear Bad Boy Mower Part diagrams, you can easily locate and purchase the right fuel tank or rear cover for your mower. We also carry other Bad Boy Lawn Mower Parts to support your mower’s long-term performance. Best of all, we offer Free Shipping On Orders Over $100, ensuring you get the parts you need quickly and affordably.

Bad Boy Mower Parts Lookup

2023 MZ Rambler - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
5 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

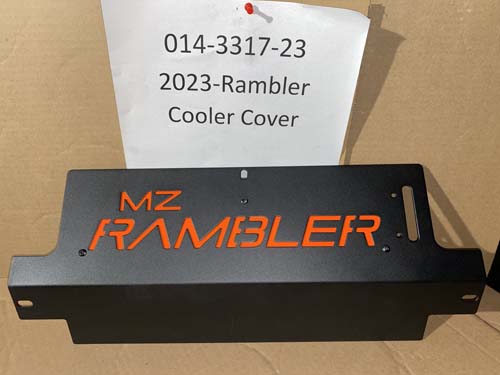

25 014-3317-23 014-3317-23 - 2023 Rambler Cooler Cover Assembly
$74.89
32 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
48 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
57 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
58 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
59 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
67 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
89 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
95 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
105 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
114 026-0223-00 026-0223-00 2022-2024 MZ Rear Plate
$90.99
119 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
120 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
124 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
155 042-9000-00 042-9000-00 - Ignition Key
$4.06
167 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
168 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
178 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
180 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
181 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
190 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
193.9 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
196 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
197 091-0009-00 091-0009-00 - ANSI Decal
$2.99
198 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
201 091-0301-19 091-0301-19 - 540CC Back Plate Cluster
$14.97
211 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
219 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
