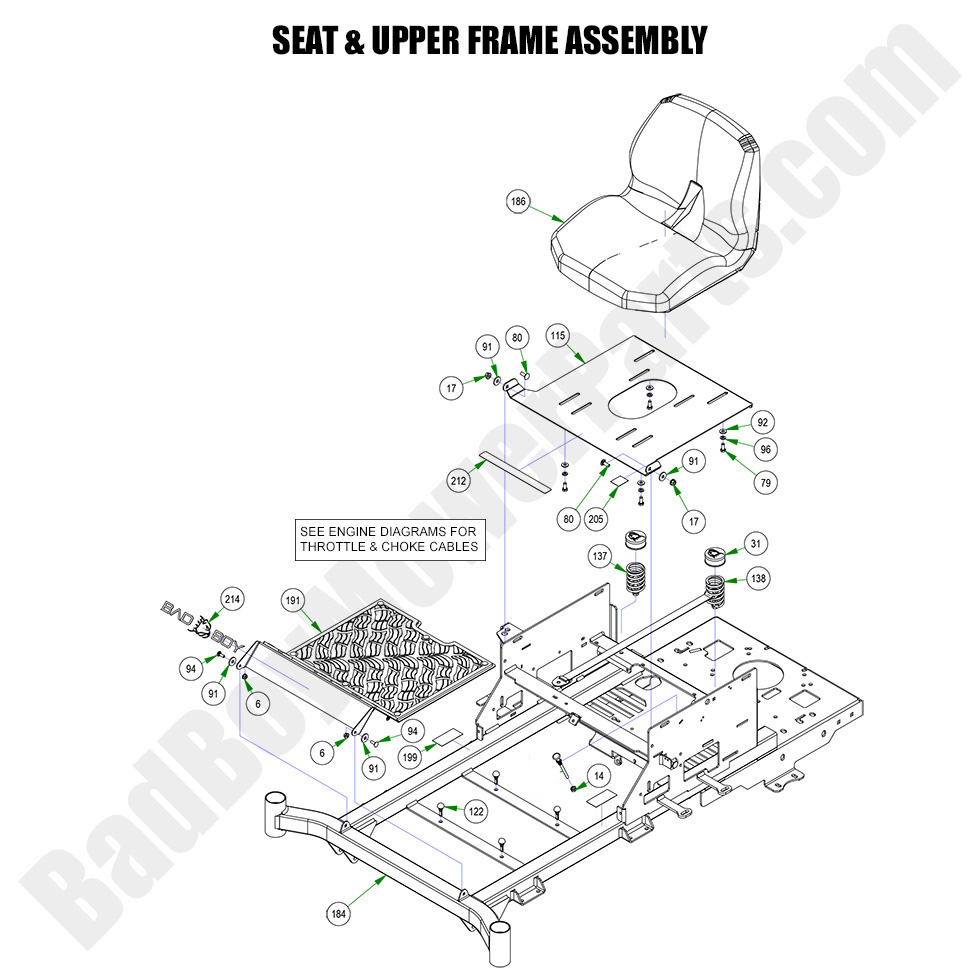

2023 MZ Rambler - Seat & Upper Frame Assembly

2023 MZ Rambler - Seat & Upper Frame Assembly

The 2023 MZ Rambler Seat & Upper Frame Assembly is a critical component for ensuring both comfort and durability for the operator. The seat provides a comfortable ride while the upper frame supports the seat and other essential parts of the mower. If you need replacement parts, BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts that are compatible with your 2023 MZ Rambler. Whether you're looking for a new seat or the upper frame, we provide clear Bad Boy Mower Part diagrams to help you identify and locate the correct parts. With Bad Boy Lawn Mower Parts available for various models, you can trust our website to deliver high-quality components. Plus, enjoy the added benefit of Free Shipping On Orders Over $100, so you can easily keep your mower in top shape.

Bad Boy Mower Parts Lookup

2023 MZ Rambler - Seat & Upper Frame Assembly
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
14 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
31 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
79 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
80 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
91 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
92 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
94 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
115 026-2017-00 026-2017-00 - MZ Seat Plate (See Models Used On For Details)
$129.99
122 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
137 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
138 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
186 071-1000-00 071-1000-00 - 2023 MZ Rambler, 2018-2021 MZ Magnum Seat For 48" & 54" Units w/ Kohler Engines
$429.99
199 091-0214-00 091-0214-00 - LH/RH Steering Control Decal (See Models Used On For Details)
$9.34
205 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
212 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
214 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
