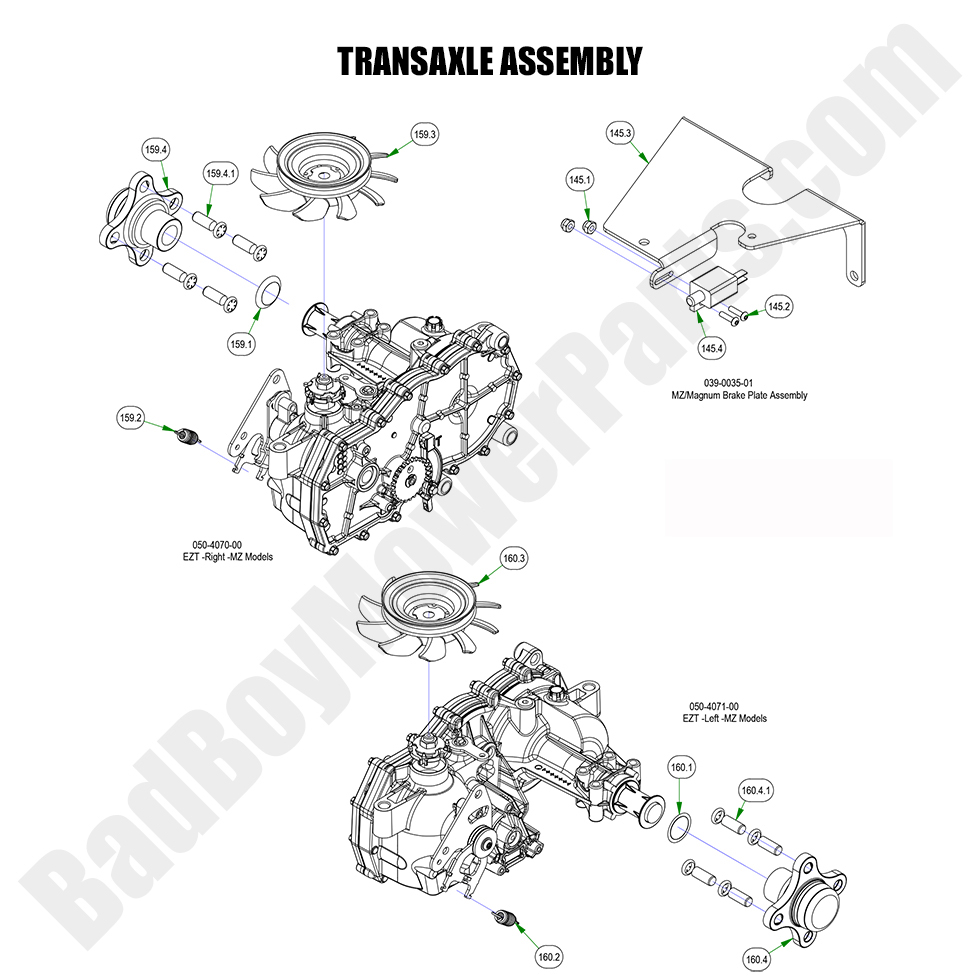

2023 MZ Rambler - Transaxle Assembly

2023 MZ Rambler - Transaxle Assembly

The 2023 MZ Rambler Transaxle Assembly is responsible for transferring power from the engine to the rear wheels, enabling the mower to move effectively and efficiently. When it’s time to repair or replace the transaxle, BadBoyMowerParts.com provides a wide selection of Bad Boy Mower Parts that are compatible with the 2023 MZ Rambler. Our site features detailed Bad Boy Mower Part diagrams, so you can easily locate the correct transaxle assembly and other related components. Whether you’re upgrading or replacing worn parts, we offer high-quality Bad Boy Lawn Mower Parts designed for longevity and performance. Don’t forget, Free Shipping On Orders Over $100 makes it even easier to keep your mower running smoothly and affordably.

Bad Boy Mower Parts Lookup

2023 MZ Rambler - Transaxle Assembly
  Position Number SKU Product Title Price
145.0 039-0035-01 039-0035-01 - 2017-2023 MZ/Magnum Brake Plate Assy.
$18.72
145.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
145.2 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
145.3 039-0035-00 039-0035-00 - MZ Brake Lock Bracket (See Models Used On for more details)
$9.61
145.4 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
159.0 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
159.1 015-8003-00 015-8003-00 - MZ Series Transaxle Seal & Retainer Kit
$86.54
159.2 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
159.3 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
159.4.1 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
159.4 050-2078-00 050-2078-00 - MZ 4 Bolt Hub Kit (See Models Used On For Details)
$95.22
160.0 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
