2023 MZ Rambler - Transaxle & Rear Wheels

2023 MZ Rambler - Transaxle & Rear Wheels

The 2023 MZ Rambler Transaxle & Rear Wheels play an important role in your mower’s ability to move smoothly and efficiently across the lawn. The transaxle provides power to the wheels, while the rear wheels ensure stability and maneuverability. When it’s time to replace these components, BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts that are compatible with your 2023 MZ Rambler. We also provide detailed Bad Boy Mower Part diagrams to make it easier for you to find the exact parts you need. Whether you need a new transaxle, wheels, or related parts, you can count on us for high-quality Bad Boy Lawn Mower Parts. Plus, enjoy Free Shipping On Orders Over $100, so maintaining your mower’s performance is both simple and affordable.

Bad Boy Mower Parts Lookup

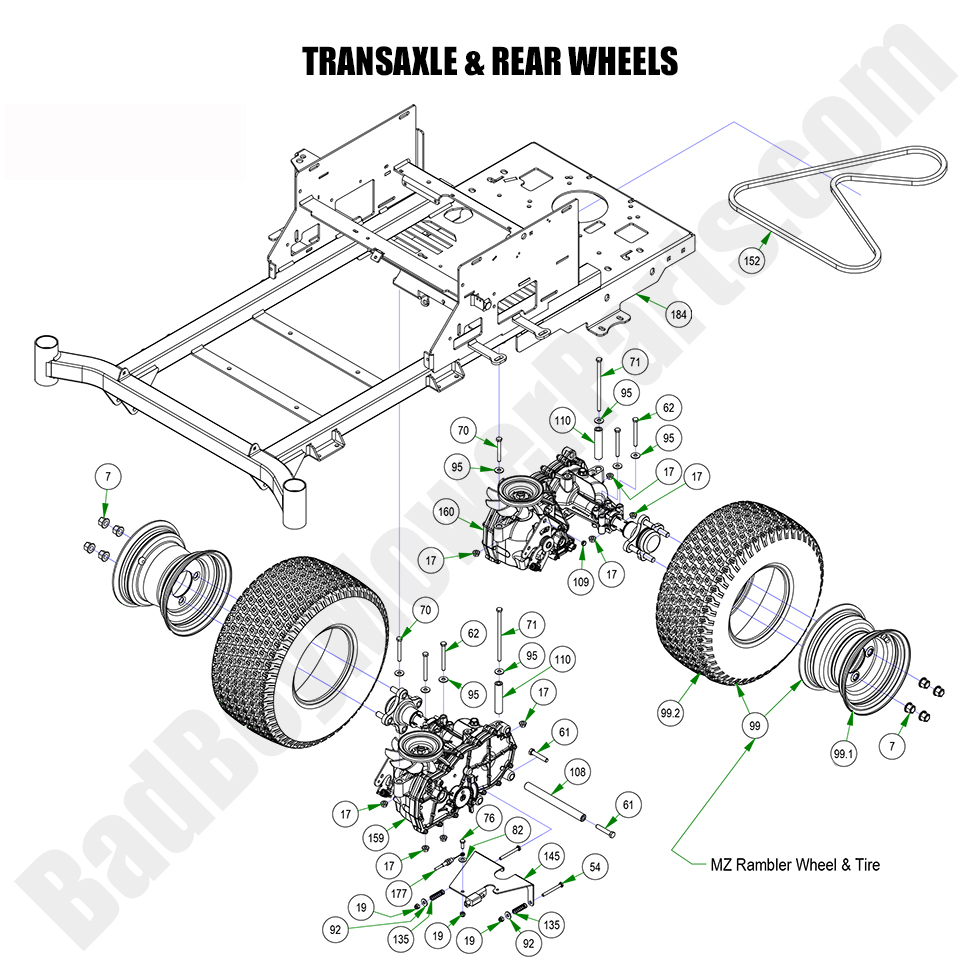

2023 MZ Rambler - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
54 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
61 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
62 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
70 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
71 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
76 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
82 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
92 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
95 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
99.1 022-2051-22 022-2051-22 - Rim for 022-2050-22
$106.99
99.2 022-2052-22 022-2052-22 - Tire for 022-2050-22 18x8.5-8
$189.99
99 022-2050-22 022-2050-22 - 18x8.50-8 w/8" Tire & Wheel (Black)
$229.99
108 025-0016-00 025-0016-00 - Transaxle Spacer-MZ (See Models Used On For Details)
$14.04
109 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
110 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
135 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
145 039-0035-01 039-0035-01 - 2017-2023 MZ/Magnum Brake Plate Assy.
$18.72
152 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
159 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
160 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
177 064-8057-17 064-8057-17 - 2017-2025 MZ Brake Cable- 18.37" CABLE ONLY
$25.54
