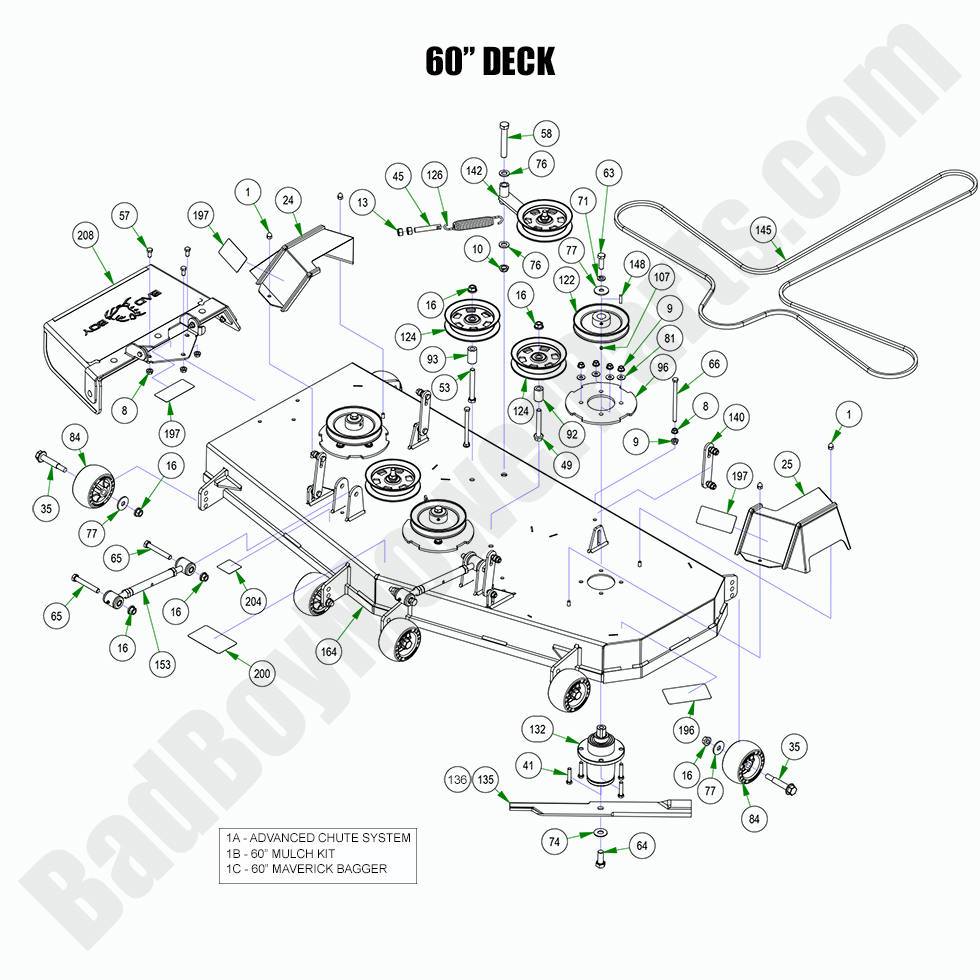

2023 Maverick - 60" Deck Assembly

2023 Maverick - 60" Deck Assembly

Maximize efficiency with the 2023 Maverick 60" Deck Assembly, built for large-scale mowing tasks. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts to keep your deck functioning at its best. Our easy-to-use Bad Boy Mower Part diagrams help you locate blades, spindles, and belts with precision. Maintaining your Bad Boy Lawn Mower Parts ensures a superior cut and extends the life of your mower. Finding Bad Boy Parts Online is simple with our organized inventory and expert customer service. We make repairs and replacements more affordable with Free Shipping On Orders Over $100. Whether you're tackling commercial properties or large yards, trust BadBoyMowerParts.com for all your 60-inch deck assembly needs. Keep your mower performing at its peak with high-quality parts that guarantee efficiency and durability.

Bad Boy Mower Parts Lookup

2023 Maverick - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1C 092-4006-23 092-4006-23 Top Discharge Bagger (2017-2025 60" ZT Elite, Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
25 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
35 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
41 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
45 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
49 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
53 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
57 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
58 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
63 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
64 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
65 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
66 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
71 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
74 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
76 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
77 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
81 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
84 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
92 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
93 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
96 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
107 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
124 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
126 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
132 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
135 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
136 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
140 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
142 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
145 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
148 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
153 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
164 060-2316-00 060-2316-00 - 2023 60" ZT/Maverick/HD Deck-Painted
$1099.99
196 091-0905-18 091-0905-18 - 2018-2023 60" Deck Decal
$6.41
197 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
200 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
204 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
208 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
