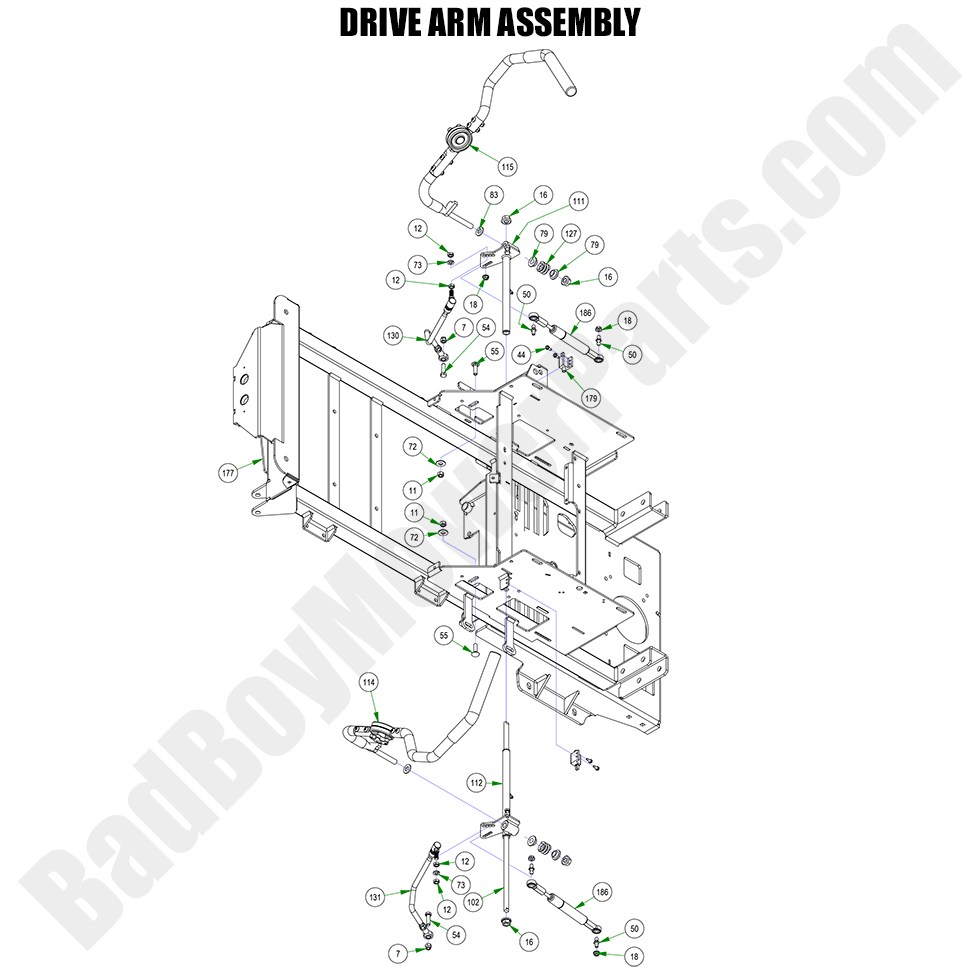

2023 Maverick - Drive Arm Assembly

2023 Maverick - Drive Arm Assembly

A fully functional 2023 Maverick Drive Arm Assembly is essential for maintaining superior maneuverability and control. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts to keep your machine operating smoothly. Using our detailed Bad Boy Mower Part diagrams, you can easily identify and order the right assembly components. Whether replacing worn bushings, bolts, or the entire drive arm, our Bad Boy Lawn Mower Parts selection ensures durability and reliability. Ordering Bad Boy Parts Online is fast and convenient, with everything you need available in one place. Plus, with Free Shipping On Orders Over $100, maintaining your mower’s performance is more affordable than ever. Keep your 2023 Maverick in peak condition with drive arm assemblies from BadBoyMowerParts.com, ensuring precision and efficiency for every mowing job.

Bad Boy Mower Parts Lookup

2023 Maverick - Drive Arm Assembly
  Position Number SKU Product Title Price
7 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
44 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
50 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
54 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
55 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
72 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
73 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
79 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
83 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
102 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
111 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
112 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
114 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
115 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
127 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
130 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
131 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
179 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
186 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
