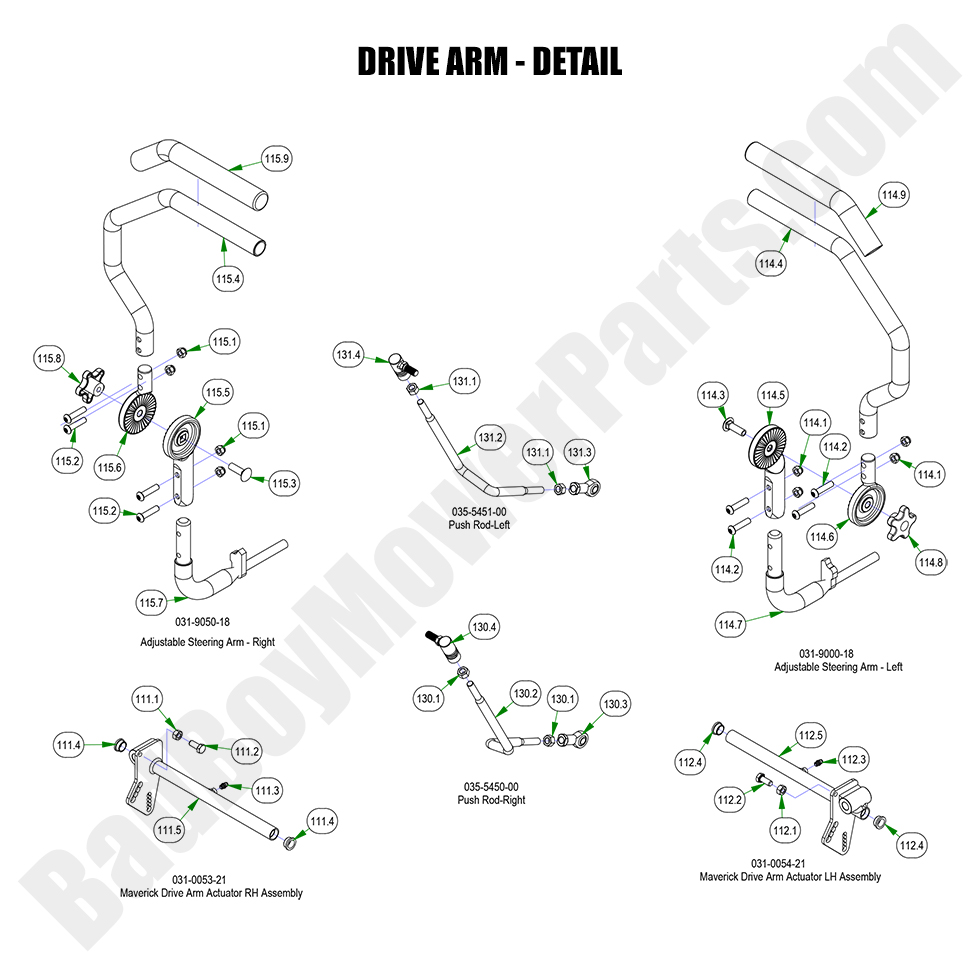

2023 Maverick - Drive Arm - Detail

2023 Maverick - Drive Arm - Detail

The 2023 Maverick Drive Arm - Detail provides essential control and stability for your zero-turn mower. Keeping this component in top condition is crucial for smooth operation, and BadBoyMowerParts.com has the Bad Boy Mower Parts you need. Our Bad Boy Mower Part diagrams make it easy to locate the correct drive arm parts and ensure a precise fit. Over time, wear and tear can affect performance, but our high-quality Bad Boy Lawn Mower Parts restore your mower’s agility. Shopping for Bad Boy Parts Online is simple with our categorized inventory and expert support team. With Free Shipping On Orders Over $100, you can maintain your mower affordably while ensuring long-term reliability. Whether replacing a damaged part or upgrading your drive system, trust BadBoyMowerParts.com for top-tier drive arm components built to last.

Bad Boy Mower Parts Lookup

2023 Maverick - Drive Arm - Detail
  Position Number SKU Product Title Price
111.1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
111.2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
111.3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
111.4 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
111.5 031-0053-00 031-0053-00 - 2021 Maverick Drive Actuator RH Weldment No Longer Available
Obsolete.
111 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
112.5 031-0054-00 031-0054-00 - 2021 Maverick Drive Actuator LH Weldment No Longer Available
Obsolete.
112 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
114.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
114.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
114.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
114.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
114.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
114.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
114.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
114.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
114.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
114 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
115.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
115.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
115.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
115 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
130.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
130.3 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
130.4 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
130 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
131 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
