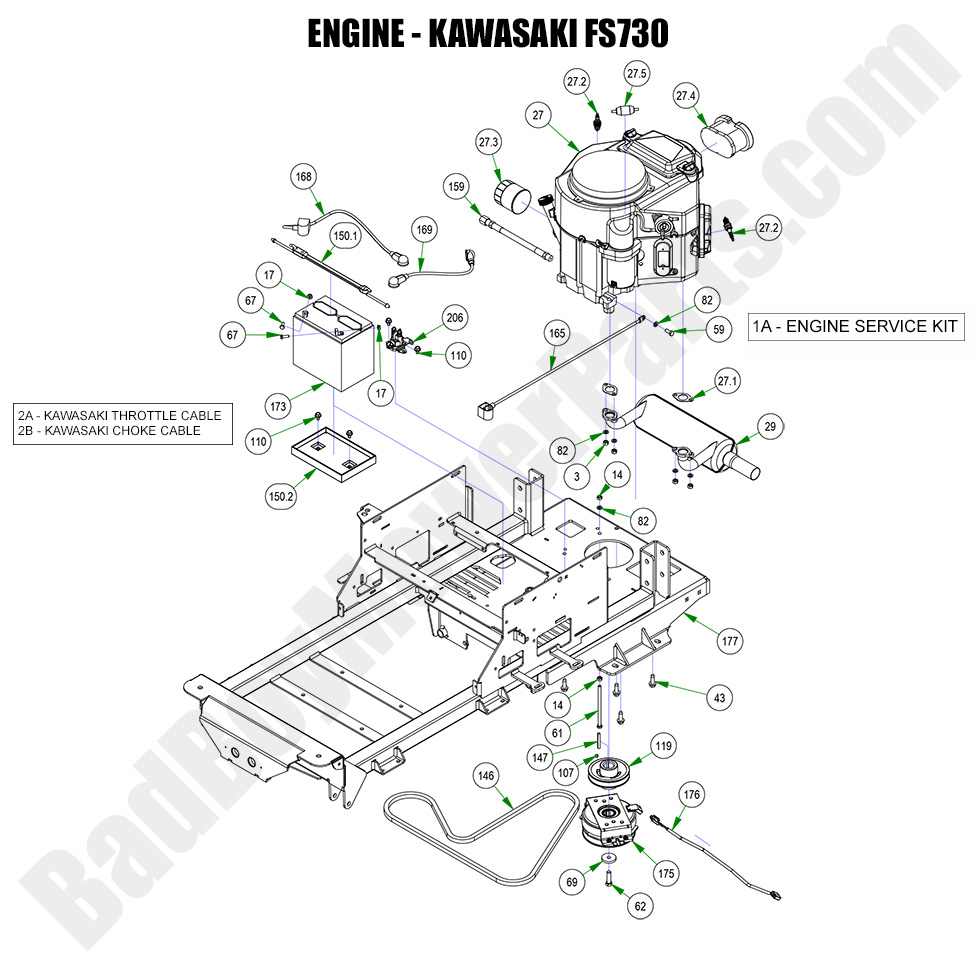

2023 Maverick - Engine - Kawasaki FS730V

2023 Maverick - Engine - Kawasaki FS730V

The 2023 Maverick Engine - Kawasaki FS730V delivers exceptional power and efficiency, making it a top choice for commercial and residential mowing. Keeping this engine in prime condition requires high-quality Bad Boy Mower Parts, available at BadBoyMowerParts.com. Our Bad Boy Mower Part diagrams simplify part selection, helping you find the right filters, belts, and other critical components. When replacing Bad Boy Lawn Mower Parts, choosing genuine replacements ensures long-term reliability and peak performance. Ordering Bad Boy Parts Online is quick and hassle-free, ensuring you get exactly what you need. Best of all, with Free Shipping On Orders Over $100, maintaining your Kawasaki FS730V engine is more cost-effective than ever. Count on BadBoyMowerParts.com to keep your 2023 Maverick running at maximum efficiency with top-tier engine components.

Bad Boy Mower Parts Lookup

2023 Maverick - Engine - Kawasaki FS730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
3 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
27.1 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
27.2 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
27.3 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
27.4.1 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
27.4 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
27.5 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
27 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R (See Models Used On For Details)
$2299.99
29 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
43 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
59 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
61 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
62 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
67 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
69 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
107 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
110 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
119 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
146 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
147 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
150.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
150.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
159 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
165 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
168 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
169 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
175 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
176 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
206 108-0001-00 108-0001-00 - Solenoid
$29.41
