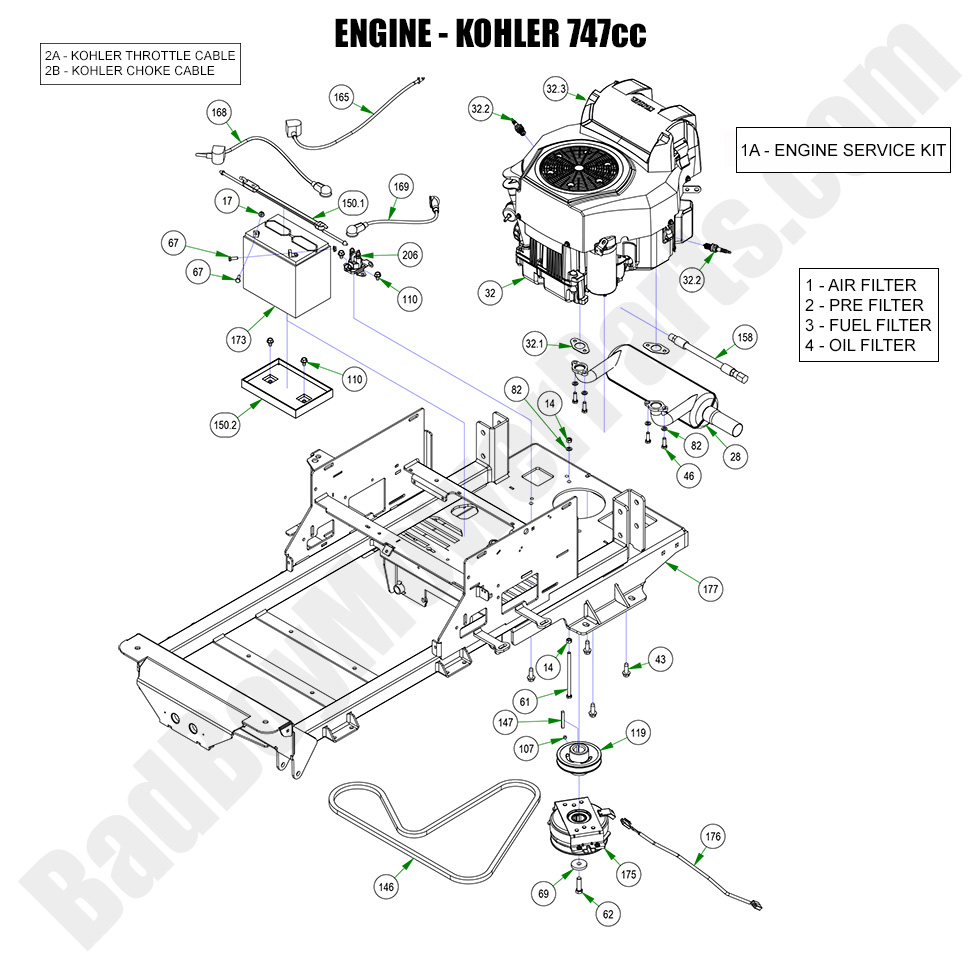

2023 Maverick - Engine - Kohler ZT740

2023 Maverick - Engine - Kohler ZT740

Kohler ZT740 – The 2023 Maverick Engine - Kohler ZT740 is designed for durability and high performance, making it a reliable power source for your mower. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts to keep your Kohler engine running efficiently. With our Bad Boy Mower Part diagrams, finding the right air filters, spark plugs, and other essential components is easy. Keeping up with regular maintenance using genuine Bad Boy Lawn Mower Parts ensures long-lasting performance and reliability. Shopping for Bad Boy Parts Online is simple and convenient, allowing you to order the right components with confidence. Plus, take advantage of Free Shipping On Orders Over $100, making it even more affordable to maintain your engine. Trust BadBoyMowerParts.com to supply the best parts for your 2023 Maverick and keep your mower operating at peak efficiency.

Bad Boy Mower Parts Lookup

2023 Maverick - Engine - Kohler ZT740
  Position Number SKU Product Title Price
1A 063-2000-07 063-2000-07 - Kohler Confidant (ZT740) Engine Service Kit
$102.57
1 063-5005-00 063-5005-00 - Air Filter for Kohler ZT740
$50.28
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 063-5006-00 063-5006-00 - Kohler ZT740 Precleaner
$9.47
3 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
4 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
28 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
32.1 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
32.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
32.3 015-9080-00 015-9080-00 - Air Cleaner Cover - Kohler Confidant Only
$85.59
32 015-2030-00 015-2030-00 - 25hp Kohler- ZT740-3048
$2799.00
43 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
46 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
61 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
62 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
67 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
69 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
107 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
110 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
119 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
146 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
147 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
150.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
150.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
158 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
165 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
168 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
169 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
175 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
176 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
206 108-0001-00 108-0001-00 - Solenoid
$29.41
