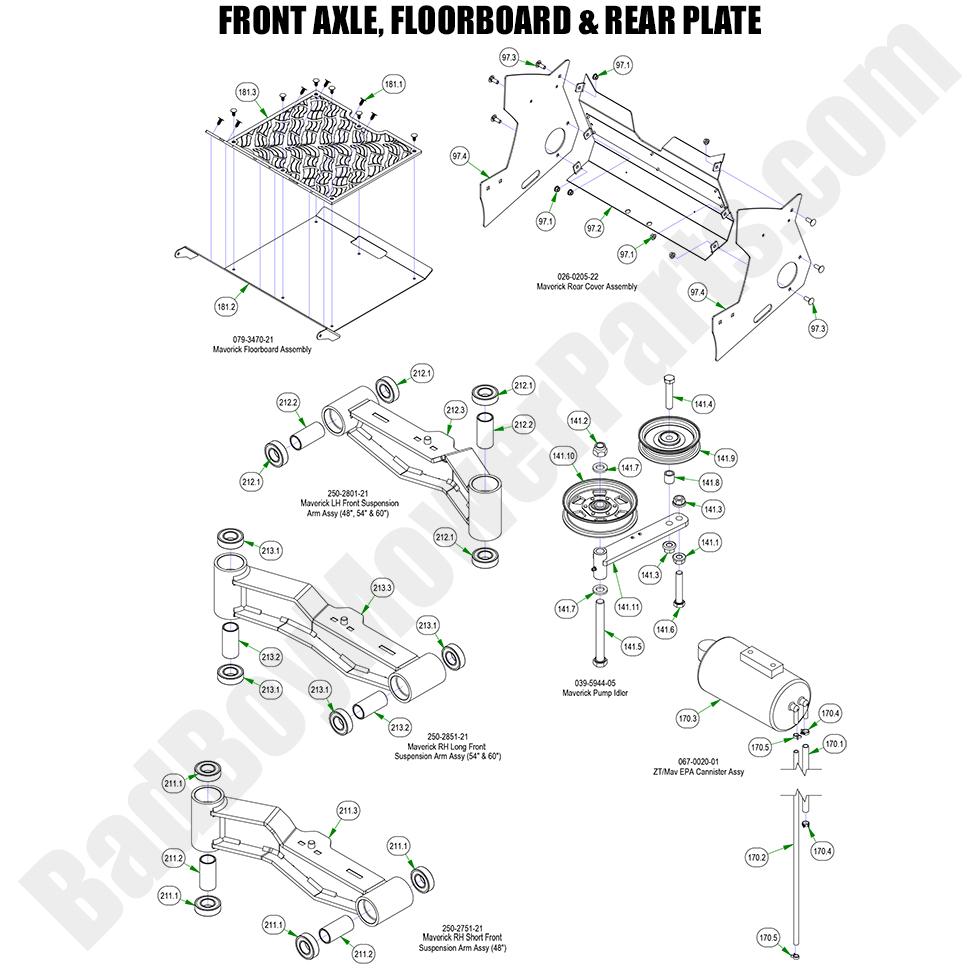

2023 Maverick - Front Axle, Floorboard & Rear Plate

2023 Maverick - Front Axle, Floorboard & Rear Plate

The 2023 Maverick Front Axle, Floorboard & Rear Plate assembly plays a crucial role in the stability and durability of your mower. At BadBoyMowerParts.com, we stock a full range of Bad Boy Mower Parts to keep these essential components in top shape. Our detailed Bad Boy Mower Part diagrams make it easy to locate and order the exact parts you need for repairs or upgrades. Whether you're replacing worn bushings, bolts, or panels, our Bad Boy Lawn Mower Parts selection ensures a precise fit and long-lasting durability. Shopping for Bad Boy Parts Online is fast and hassle-free, with expert support available when needed. Plus, enjoy Free Shipping On Orders Over $100, making repairs more cost-effective. Keep your 2023 Maverick sturdy and reliable with high-quality replacement parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2023 Maverick - Front Axle, Floorboard & Rear Plate
  Position Number SKU Product Title Price
97.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
97.1 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
97.2 014-5300-00 014-5300-00 - 2021-2022 Maverick Rear Cover Assembly
$222.99
97.3 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
97.4 026-0226-00 026-0226-00 Rear Cover Side Plate - Painted
$42.79
141.1 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
141.2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
141.3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
141.4 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
141.5 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
141.6 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
141.7 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
141.8 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
141.9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
141.10 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
141.11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
141 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
170.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
170.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
170.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
170.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
170.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
170 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
181.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
181.2 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
181.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
181 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
211.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
211.2 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
211.3 250-2751-00 250-2751-00 - I-Beam Front Arm Short-RH--Painted
$129.99
211 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
212.3 250-2801-00 250-2801-00 - I-Beam Front Arm-LH--Painted (See Models Used On For Details)
$93.64
212 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
213.3 250-2851-00 250-2851-00 - I-Beam Front Arm Long-RH--Painted
$93.64
213 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
