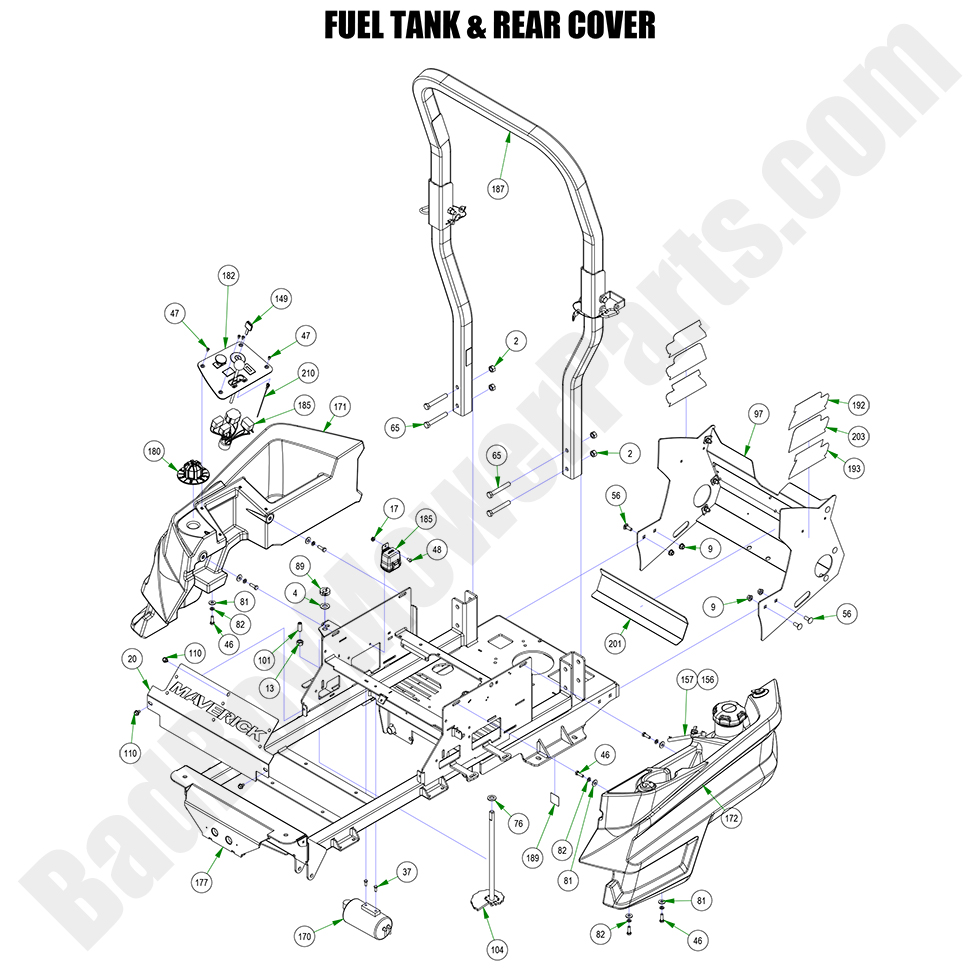

2023 Maverick - Fuel Tank & Rear Cover

2023 Maverick - Fuel Tank & Rear Cover

 The 2023 Maverick Fuel Tank & Rear Cover assembly is crucial for protecting your mower’s fuel system and internal components. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to keep your machine running smoothly. With our Bad Boy Mower Part diagrams, locating the right fuel tank, caps, and rear covers is easy. Whether you need a replacement due to wear or damage, our Bad Boy Lawn Mower Parts ensure a perfect fit. Shopping for Bad Boy Parts Online means quick, hassle-free ordering with guaranteed compatibility. Plus, with Free Shipping On Orders Over $100, maintaining your mower’s fuel system has never been more affordable. Keep your 2023 Maverick in excellent condition with high-quality parts from BadBoyMowerParts.com, ensuring reliability and efficiency for every job.

Bad Boy Mower Parts Lookup

2023 Maverick - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
4 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
20 014-1000-00 014-1000-00 - 2021-2025 Maverick Cooler Cover Assembly
$129.99
37 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
46 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
47 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
48 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
56 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
65 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
76 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
81 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
89 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
97 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
101 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
104 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
110 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
149 042-9000-00 042-9000-00 - Ignition Key
$4.06
170 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
171 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
172 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
180 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
185 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
187 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
192 091-0378-18 091-0378-18 - 2018-2022 Maverick 726cc Back Plate Cluster
$14.97
193 091-0379-18 091-0379-18 - 2018-2022 Maverick 747cc Back Plate Cluster
$14.97
201 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
203 091-4075-00 091-4075-00 - Maverick 810cc Back Plate Decal
$10.99
210 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
