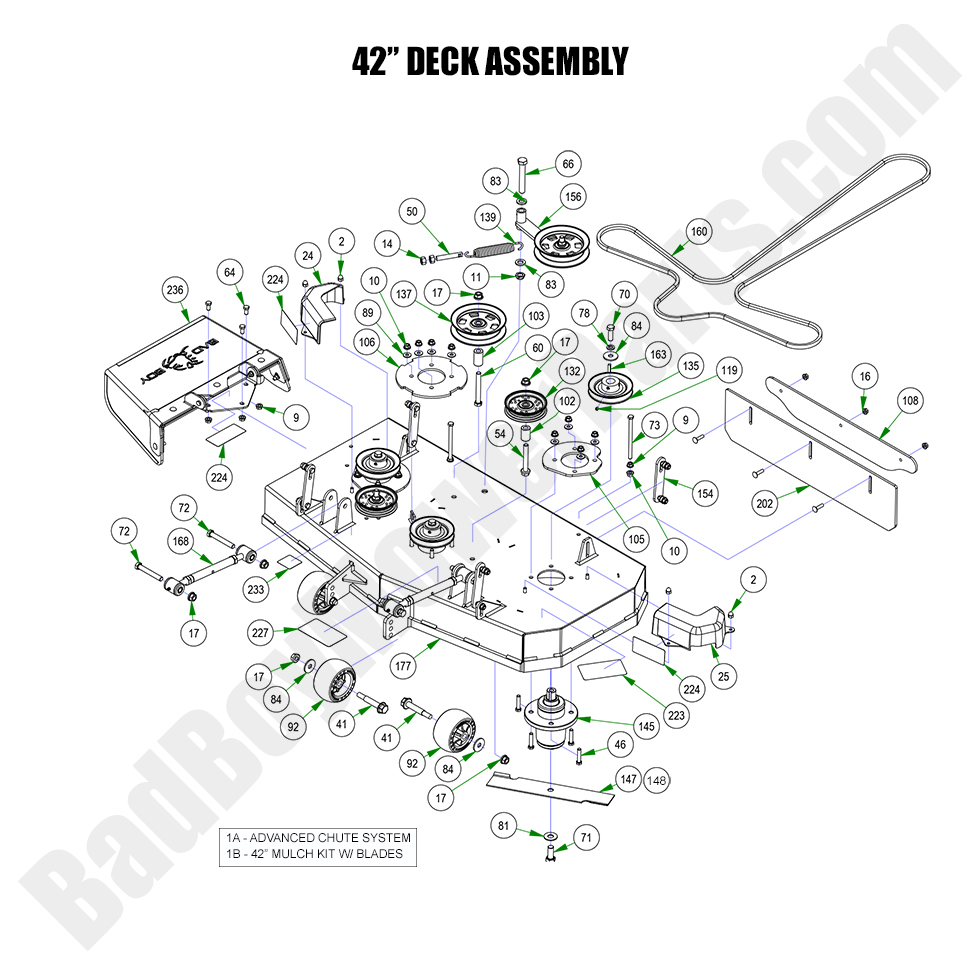

2023 Maverick HD - 42" Deck Assembly

2023 Maverick HD - 42" Deck Assembly

The 2023 Maverick HD 42" Deck Assembly is designed to deliver a precise and clean cut every time. Proper maintenance is essential, and that’s where Bad Boy Mower Part diagrams come in handy for quick repairs and replacements. At BadBoyMowerParts.com, we stock a full selection of Bad Boy Mower Parts, ensuring your mower deck remains in top condition. Whether you need blades, spindles, or belts, our Bad Boy Lawn Mower Parts inventory has exactly what you're looking for. With the ease of Bad Boy Parts Online, you can conveniently shop for everything required to keep your mower running smoothly. Plus, take advantage of Free Shipping On Orders Over $100, allowing you to save more on essential parts. Don’t let a worn-out deck slow you down—find the perfect components for your 2023 Maverick HD 42" Deck Assembly today!

Bad Boy Mower Parts Lookup

2023 Maverick HD - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-4235-00 210-4235-00 - 42" Maverick HD Mulch Kit w/ Blades
$318.45
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
25 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
41 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
46 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
50 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
54 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
60 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
64 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
66 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
70 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
71 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
72 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
73 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
78 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
81 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
83 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
84 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
89 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
92 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
102 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
103 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
105 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
106 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
108 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
132 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
135 033-6005-00 033-6005-00 - 42 Maverick HD Spindle Pulley
$23.53
137 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
139 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
145 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
147 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
148 038-4222-00 038-4222-00 - 42" Gator Mulching Blade
$22.99
154 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
156 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
160 041-4023-00 041-4023-00 - 42" Deck Belt
$78.01
163 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
168 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
177 060-2310-00 060-2310-00 - 42" 2023 Maverick HD-Deck--Painted
$999.99
202 084-5006-00 084-5006-00 - 2023 ZT Stripe Kit Rubber
$56.77
223 091-1048-18 091-1048-18 - 2018-2022 42" MZ/Comp Out Deck Decal
$6.04
224 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
227 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
233 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
236 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
