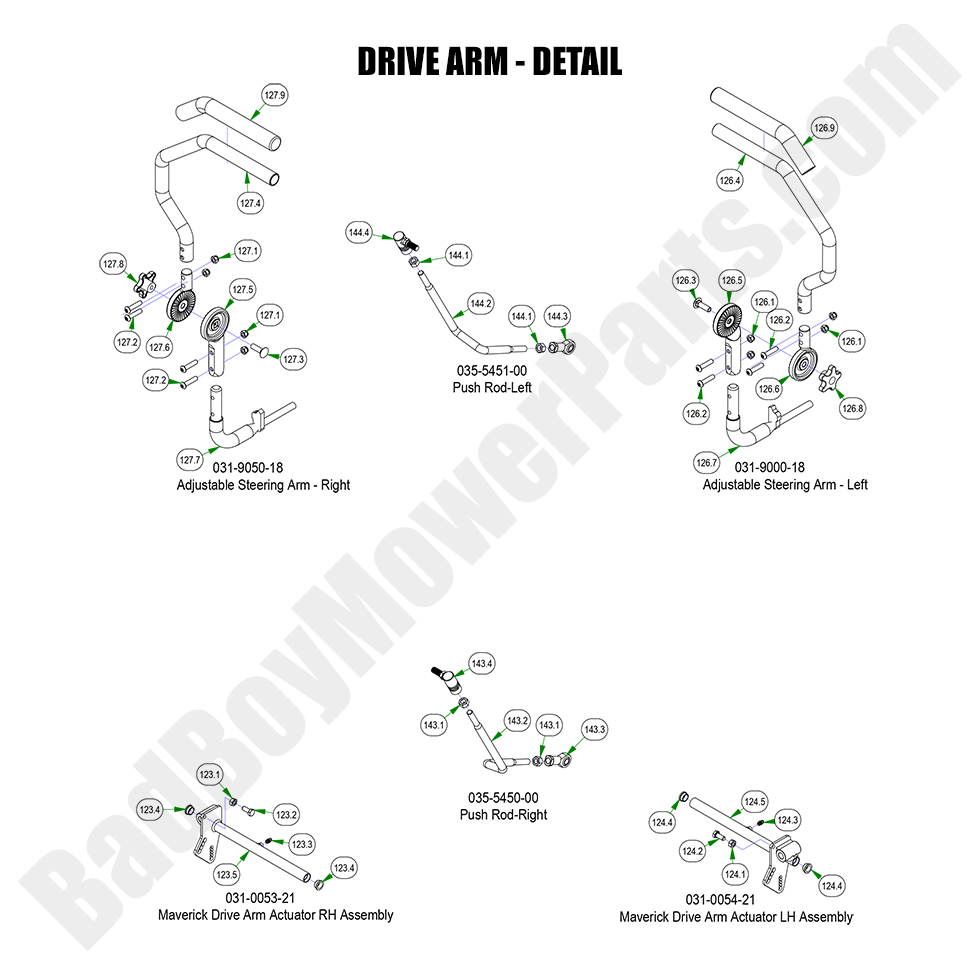

2023 Maverick HD - Drive Arm - Detail

2023 Maverick HD - Drive Arm - Detail

The 2023 Maverick HD Drive Arm - Detail is an integral part of your mower’s drivetrain, ensuring smooth operation and optimal control. Whether replacing a worn-out drive arm or performing regular maintenance, Bad Boy Mower Part diagrams will help you find the right components. At BadBoyMowerParts.com, we stock a complete selection of Bad Boy Mower Parts, including drive arms built to factory specifications. Our Bad Boy Lawn Mower Parts selection guarantees a precise fit, keeping your machine running efficiently. Ordering Bad Boy Parts Online is simple, allowing you to find exactly what you need without hassle. Plus, with Free Shipping On Orders Over $100, keeping your 2023 Maverick HD Drive Arm - Detail in perfect working condition is more affordable than ever. Don’t let a faulty drive arm slow you down—order today and keep your mower operating at its best!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Drive Arm - Detail
  Position Number SKU Product Title Price
123.1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
123.2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
123.3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
123.4 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
123.5 031-0053-00 031-0053-00 - 2021 Maverick Drive Actuator RH Weldment No Longer Available
Obsolete.
123 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
124.5 031-0054-00 031-0054-00 - 2021 Maverick Drive Actuator LH Weldment No Longer Available
Obsolete.
124 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
126.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
126.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
126.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
126.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
126.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
126.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
126.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
126.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
126.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
126 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
127.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
127.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
127.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
127 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
143.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
143.3 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
143.4 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
143 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
144 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
