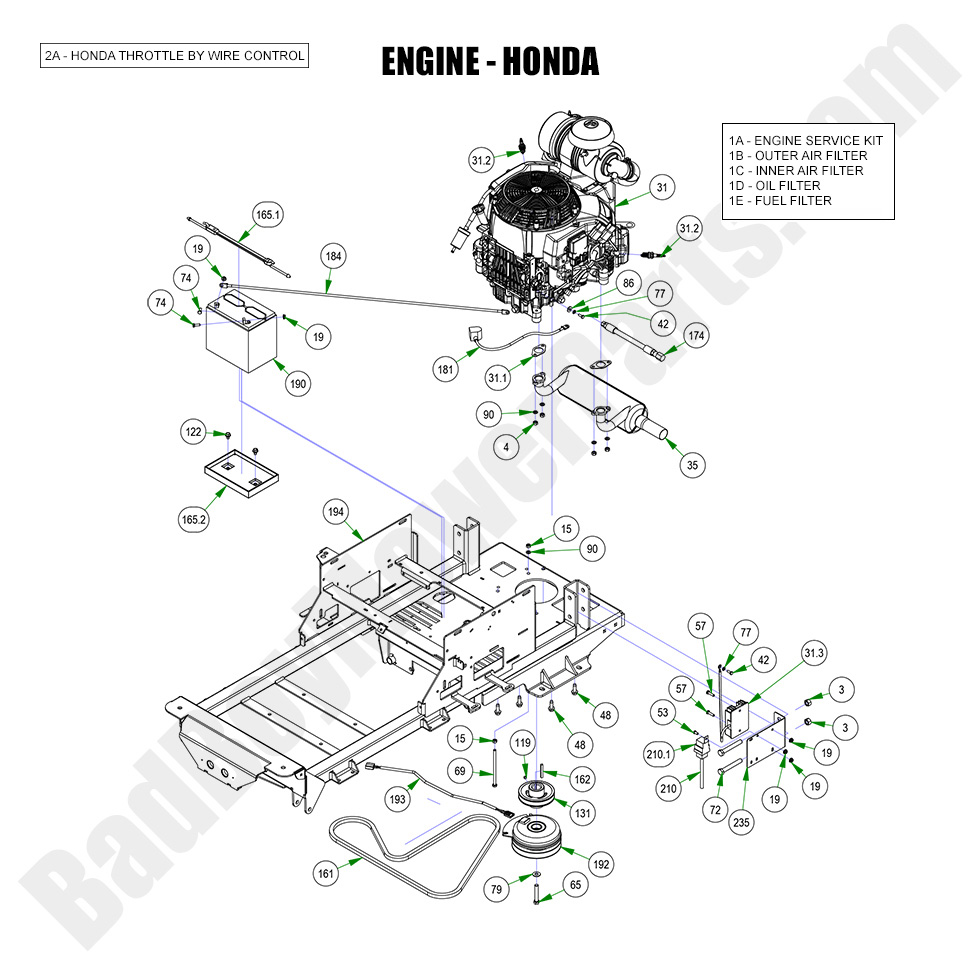

2023 Maverick HD - Engine - Honda GXV700

2023 Maverick HD - Engine - Honda GXV700

The 2023 Maverick HD Engine - Honda GXV700 delivers power and reliability, making it a top choice for mowing professionals and homeowners alike. To maintain its performance, rely on Bad Boy Mower Part diagrams to find the right components for servicing and repairs. At BadBoyMowerParts.com, we provide a comprehensive selection of Bad Boy Mower Parts, including air filters, carburetors, and ignition components for the GXV700. Our Bad Boy Lawn Mower Parts ensure maximum efficiency and longevity for your engine. Ordering Bad Boy Parts Online allows you to quickly locate the exact parts needed without searching multiple stores. Plus, with Free Shipping On Orders Over $100, maintaining your 2023 Maverick HD Engine - Honda GXV700 is more affordable. Don’t let engine issues slow you down—order today and keep your mower running strong!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Engine - Honda GXV700
  Position Number SKU Product Title Price

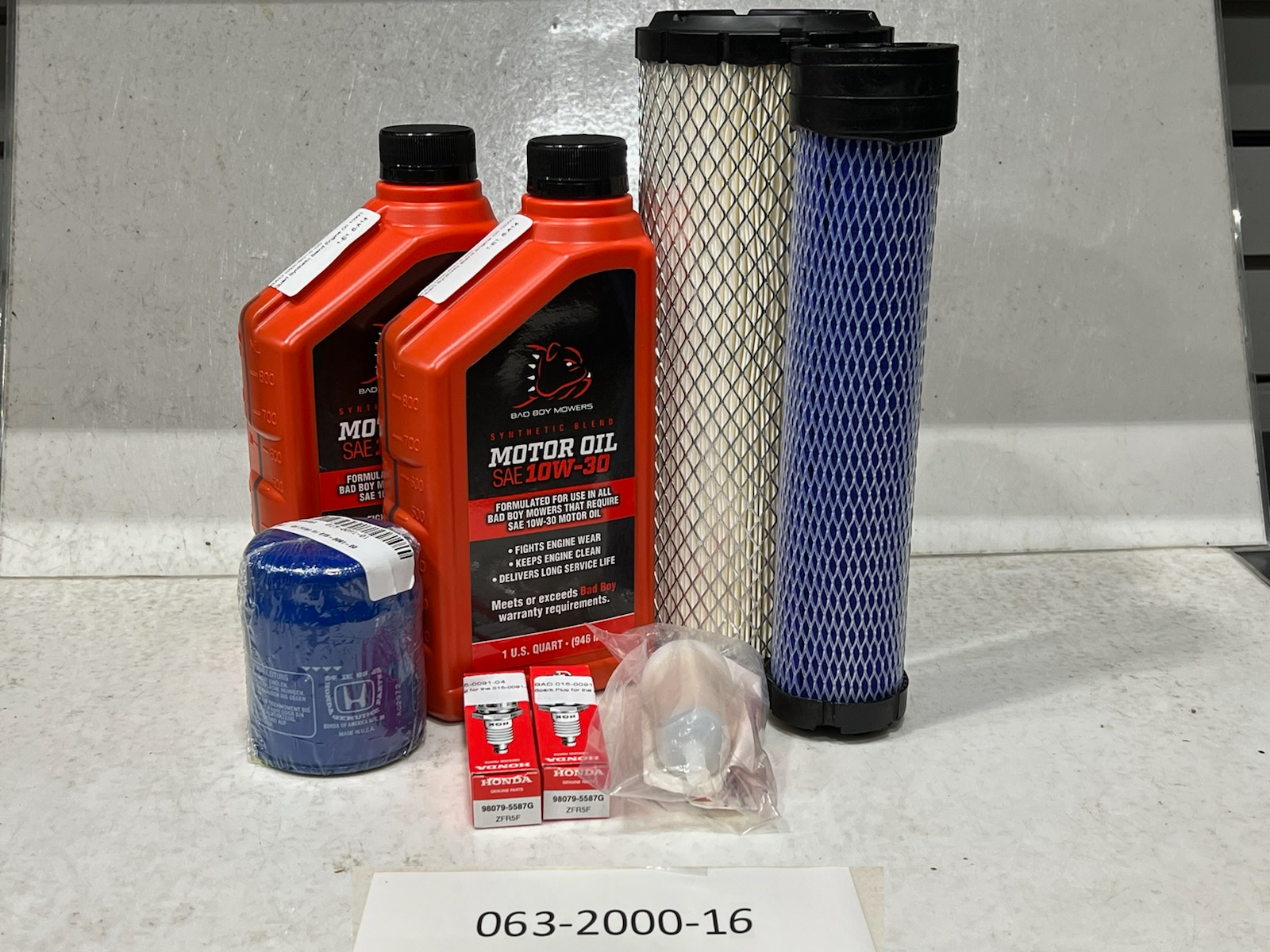

1A 063-2000-16 063-2000-16 - Honda GXV700 & GXV800 Engine Service Kit
$141.44
1B 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
1D 015-0091-01 015-0091-01 - Oil Filter for 015-0091-00 fits the 2019-2023 Honda Engine
$24.60
1E 015-0091-05 015-0091-05 - Fuel Filter for the 015-0091-00 fits the 2019-2023 Honda Engine
$29.95
1c 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
2A 055-3002-00 055-3002-00 - Honda Drive By wire Throttle
$107.99
3 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
31.1 015-1016-01 015-1016-01 - Honda Exhaust Gasket Kit 2019-2022 Maverick
$11.76

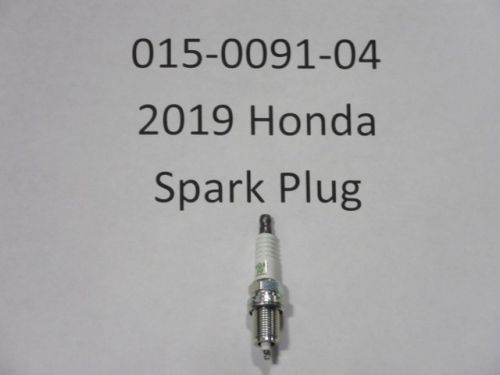

31.2 015-0091-04 015-0091-04 - Spark Plug for the 015-0091-00 fits the 2019-2023 Honda Engine
$12.83

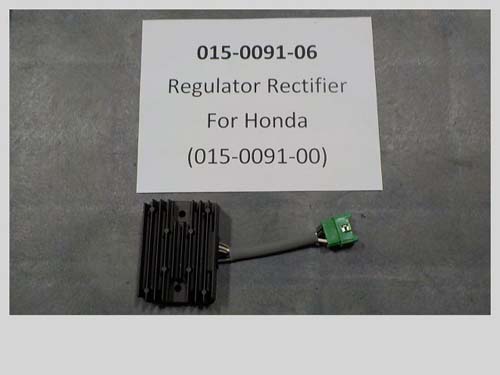

31.3 015-0091-06 015-0091-06 - Regulator Rectifier for Honda (015-0091-00)
$242.99
31 015-0093-00 015-0093-00 - Honda GXV700 1 1/8"dia x 3.8"Length Cran No Longer Available
Obsolete.

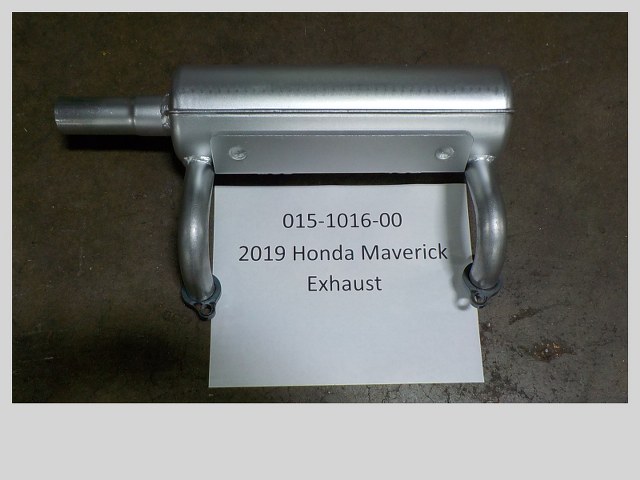

35 015-1016-00 015-1016-00 - 2019-2023 Honda Maverick Exhaust Catalytic# MUF 1651
$199.00
42 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
53 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
57 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
65 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
69 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
72 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
74 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
77 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
79 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
86 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
90 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
131 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58

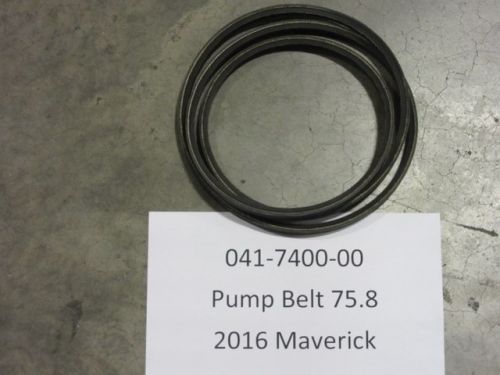

161 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
162 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
165.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
165.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32

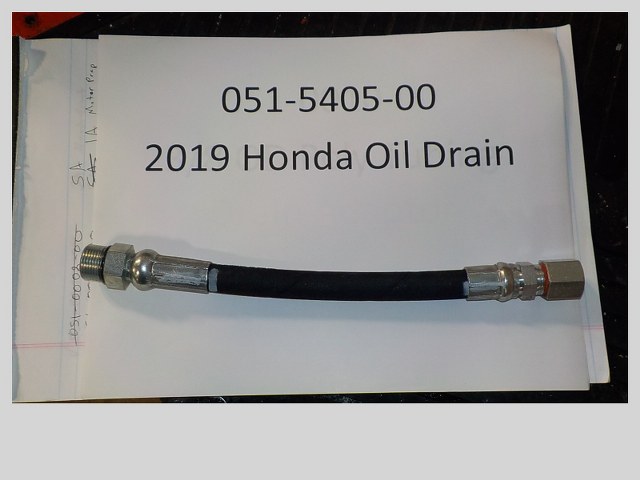

174 051-5405-00 051-5405-00 - Honda Oil Drain (See Models Used On For Details)
$23.41
181 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72

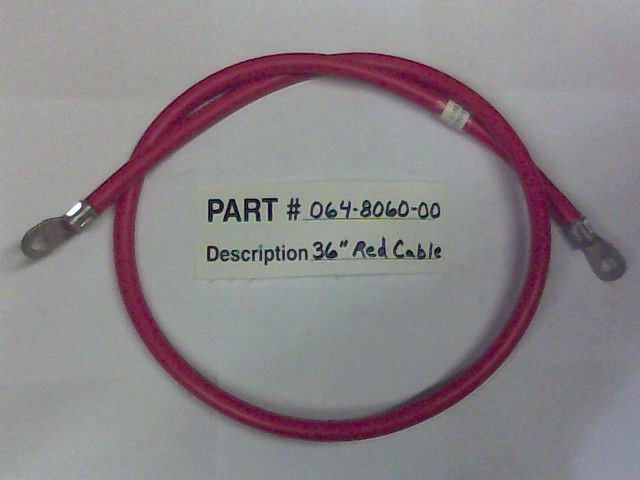

184 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
192 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
193 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
210.1 086-1200-00 086-1200-00 Relay for 086-9019-00
$42.79
235 201-0020-00 201-0020-00 - Honda Rectifier Mount
$10.99
