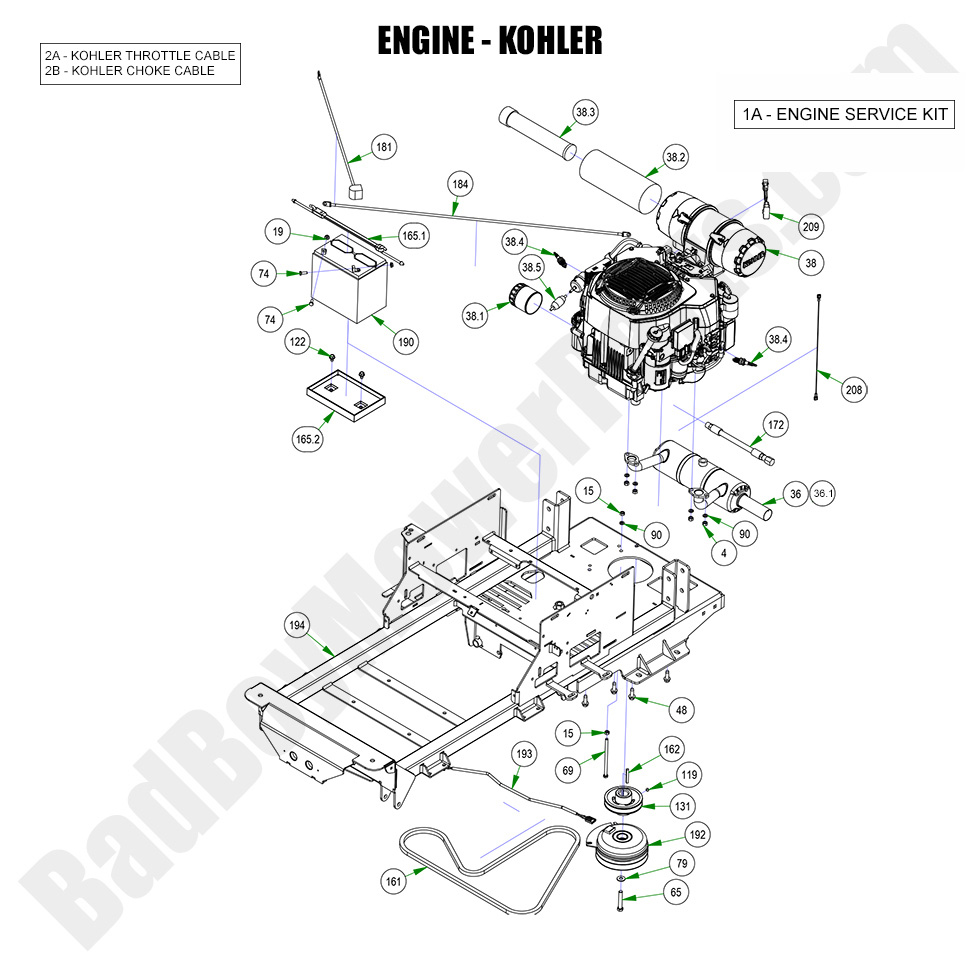

2023 Maverick HD - Engine - Kohler ECV749 EFI

2023 Maverick HD - Engine - Kohler ECV749 EFI

The 2023 Maverick HD Engine - Kohler ECV749 EFI delivers power and fuel efficiency, making it a popular choice for demanding mowing tasks. When it’s time for maintenance or repairs, using Bad Boy Mower Part diagrams will help you locate the correct components. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts, including filters, ignition systems, and fuel components for the Kohler ECV749 EFI. Our high-quality Bad Boy Lawn Mower Parts ensure long-lasting performance and a perfect fit. Ordering Bad Boy Parts Online means you can quickly find what you need without leaving home. Plus, enjoy Free Shipping On Orders Over $100, making it easier and more cost-effective to maintain your 2023 Maverick HD Engine - Kohler ECV749 EFI. Order today and keep your mower running smoothly!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Engine - Kohler ECV749 EFI
  Position Number SKU Product Title Price
1A 063-2000-17 063-2000-17 - Kohler ECV749 Engine Service Kit
$138.32
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
36.1 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
36 015-1029-00 015-1029-00 - 2023 ECV749 Maverick HD Muffler
$96.29
38.1 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
38.2 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
38.3 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
38.4 015-2023-03 015-2023-03 - Spark Plug for ECV749
$12.83
38.5 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
38 015-7530-00 015-7530-00 - Kohler Command 26.5 EFI ECV749
$2699.00
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
65 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
69 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
74 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
79 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
90 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
131 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
161 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
162 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
165.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
165.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
172 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
181 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
184 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
192 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
193 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
208 086-9005-00 086-9005-00 - C-Outlaw Starter Jumper Wire
$23.53
209 086-9008-19 086-9008-19 - 2019 Harness Adaptor-Carbureted Yamaha
$14.11
