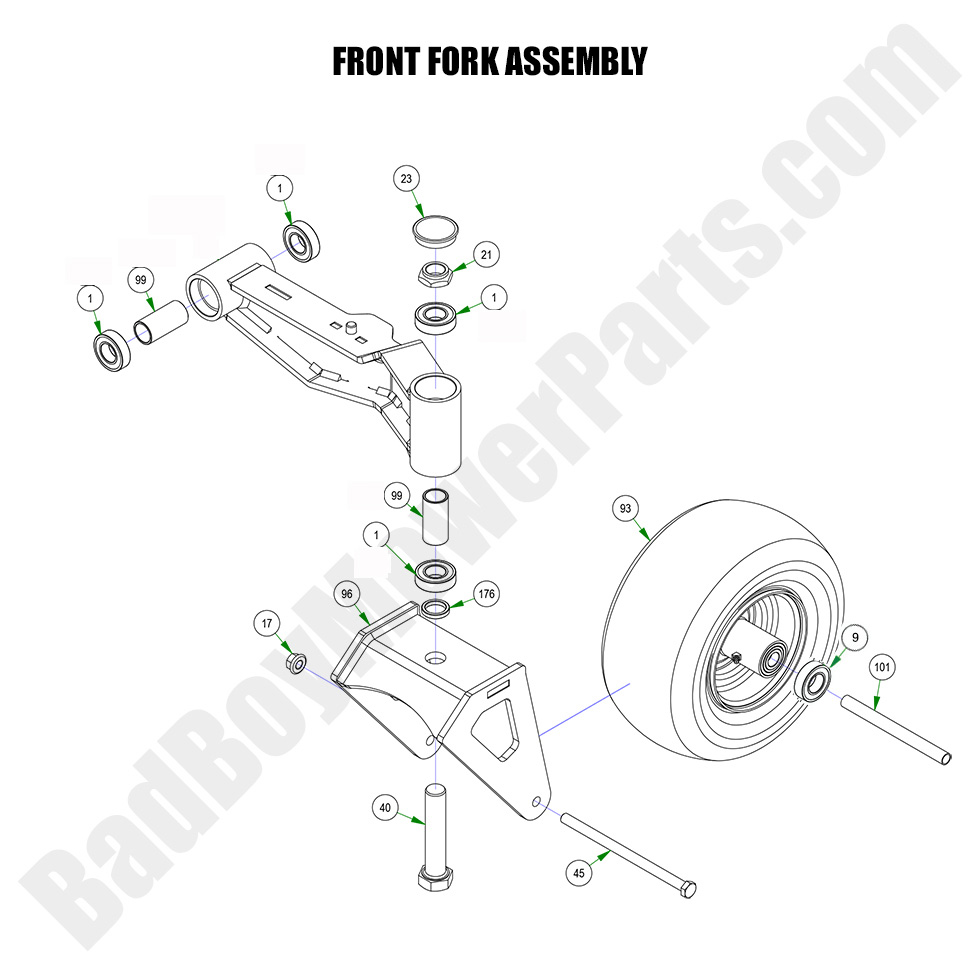

2023 Maverick HD - Front Fork Assembly

2023 Maverick HD - Front Fork Assembly

The 2023 Maverick HD Front Fork Assembly plays a crucial role in steering and stability, ensuring a smooth ride across all terrains. When it's time to replace worn-out parts, Bad Boy Mower Part diagrams provide a clear guide to finding the right components. At BadBoyMowerParts.com, we offer a vast selection of Bad Boy Mower Parts, including front fork assemblies, bushings, and hardware. Our Bad Boy Lawn Mower Parts are built for durability and reliability, ensuring your mower continues to perform at its best. Shopping for Bad Boy Parts Online makes it easy to find and order exactly what you need. Plus, enjoy Free Shipping On Orders Over $100, making it more cost-effective to maintain your 2023 Maverick HD Front Fork Assembly. Order today and keep your mower handling like new!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
9 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
23 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
40 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
45 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
93 022-3088-00 022-3088-00 - 13x6.50-6 Black No Flat Assy 2015-2019 Outlaw, 2022 - 2025 Maverick, Maverick HD, Rebel (Will Not Work On Renegade & Rogue)
$145.99
96 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
99 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
101 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
176 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
