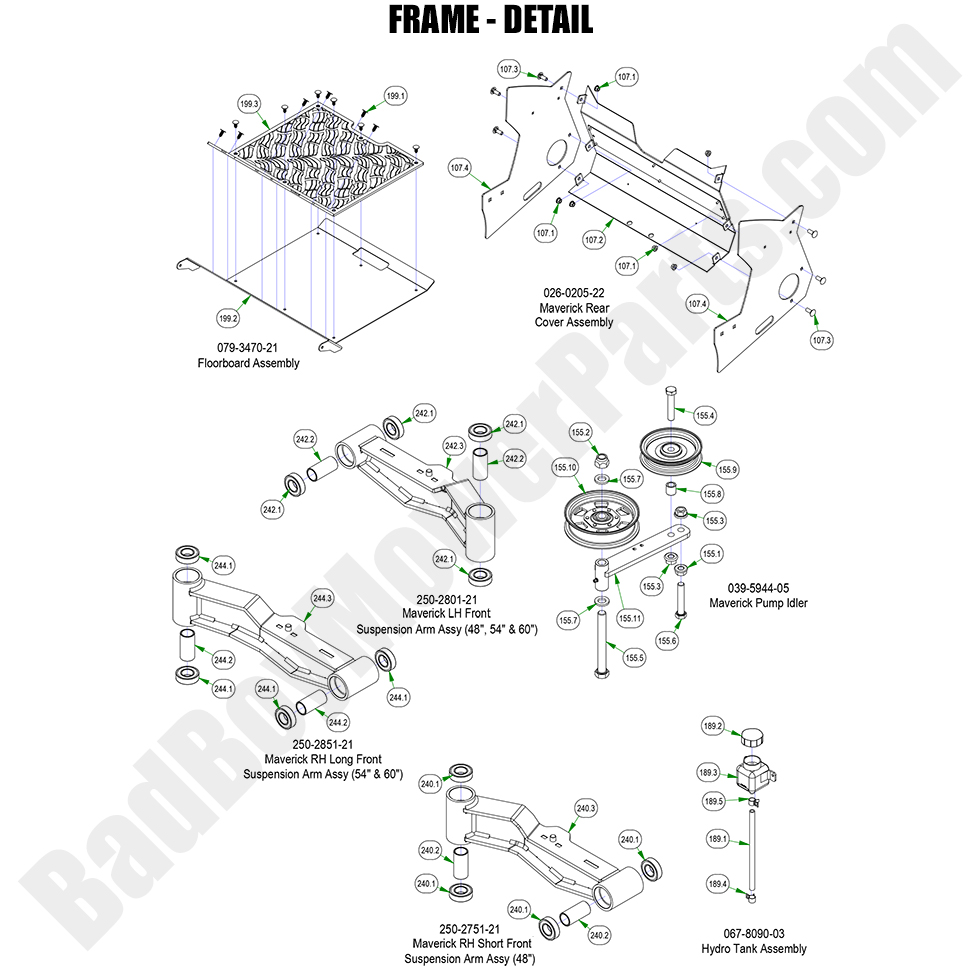

2023 Maverick HD - Frame - Detail

2023 Maverick HD - Frame - Detail

The 2023 Maverick HD Frame - Detail is designed for durability and stability, providing a strong foundation for your mower. If you need to replace or repair any part of the frame, Bad Boy Mower Part diagrams will help you find the right components. At BadBoyMowerParts.com, we carry a full range of Bad Boy Mower Parts, including frame reinforcements, bolts, and brackets. Our selection of Bad Boy Lawn Mower Parts ensures that your mower remains sturdy and reliable. When you shop for Bad Boy Parts Online, you can quickly order the exact parts you need. Plus, with Free Shipping On Orders Over $100, maintaining your 2023 Maverick HD Frame - Detail is now more affordable than ever. Get the right parts today and keep your mower as strong as the day you bought it!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Frame - Detail
  Position Number SKU Product Title Price
107.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
107.2 014-5300-00 014-5300-00 - 2021-2022 Maverick Rear Cover Assembly
$222.99
107.3 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
107.4 026-0226-00 026-0226-00 Rear Cover Side Plate - Painted
$42.79
107 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
155.1 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
155.2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
155.3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
155.4 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
155.5 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
155.6 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
155.7 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
155.8 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
155.9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
155.10 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
155.11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
155 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
189.1 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
189.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
189.3 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
189.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
189.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
189 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
199.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
199.2 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
199.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
199 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
240-.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
240.2 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
240.3 250-2751-00 250-2751-00 - I-Beam Front Arm Short-RH--Painted
$129.99
240 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
242.3 250-2801-00 250-2801-00 - I-Beam Front Arm-LH--Painted (See Models Used On For Details)
$93.64
242 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
244.3 250-2851-00 250-2851-00 - I-Beam Front Arm Long-RH--Painted
$93.64
244 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
