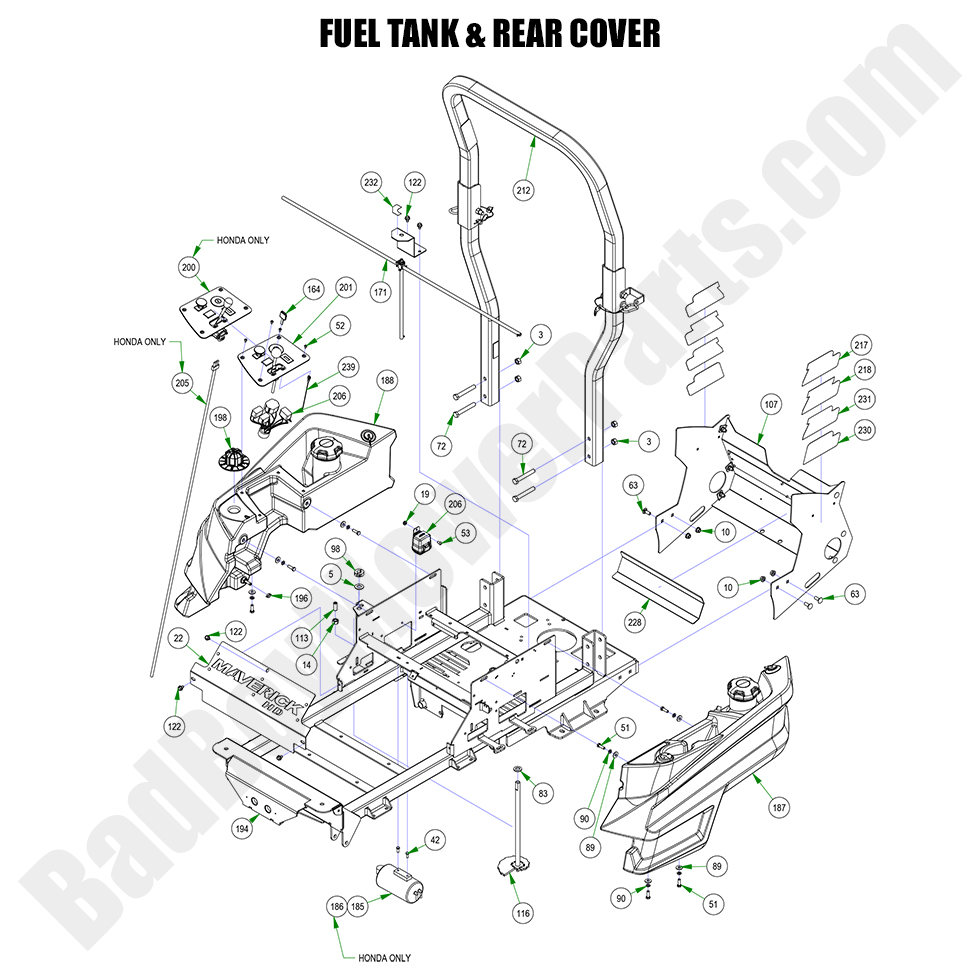

2023 Maverick HD - Fuel Tanks & Rear Cover

2023 Maverick HD - Fuel Tanks & Rear Cover

The 2023 Maverick HD Fuel Tanks & Rear Cover are designed for maximum fuel efficiency and durability. If you need to replace a fuel tank or rear cover, Bad Boy Mower Part diagrams will help you locate the exact part. At BadBoyMowerParts.com, we stock a full inventory of Bad Boy Mower Parts, including fuel tanks, caps, and mounting hardware. Our Bad Boy Lawn Mower Parts are made with high-quality materials for long-lasting performance. When you shop Bad Boy Parts Online, you can find exactly what you need without searching multiple stores. Plus, with Free Shipping On Orders Over $100, keeping your 2023 Maverick HD Fuel Tanks & Rear Cover in peak condition is more affordable. Order today and ensure your mower stays fueled and ready for action!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Fuel Tanks & Rear Cover
  Position Number SKU Product Title Price
3 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
5 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
22 014-1001-00 014-1001-00 - Maverick HD Cooler Cover
$109.99
42 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
51 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
52 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
53 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
63 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
72 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
83 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
89 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
90 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
98 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
107 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99
113 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
116 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
122 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
164 042-9000-00 042-9000-00 - Ignition Key
$4.06
187 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
188 067-2022-00 067-2022-00 - 2022 Maverick HD RH Fuel Tank
$459.99
196 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
198 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
206 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
212 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
218 091-0380-18 091-0380-18 - MAV HD/kohler747 bkplt decal
$6.59
228 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
231 091-4079-00 091-4079-00 - MavHD Honda 779ccback plate decal
$10.99
232 091-6021-00 091-6021-00 - Maverick HD Shut Off Valve Decal
$2.99
239 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
