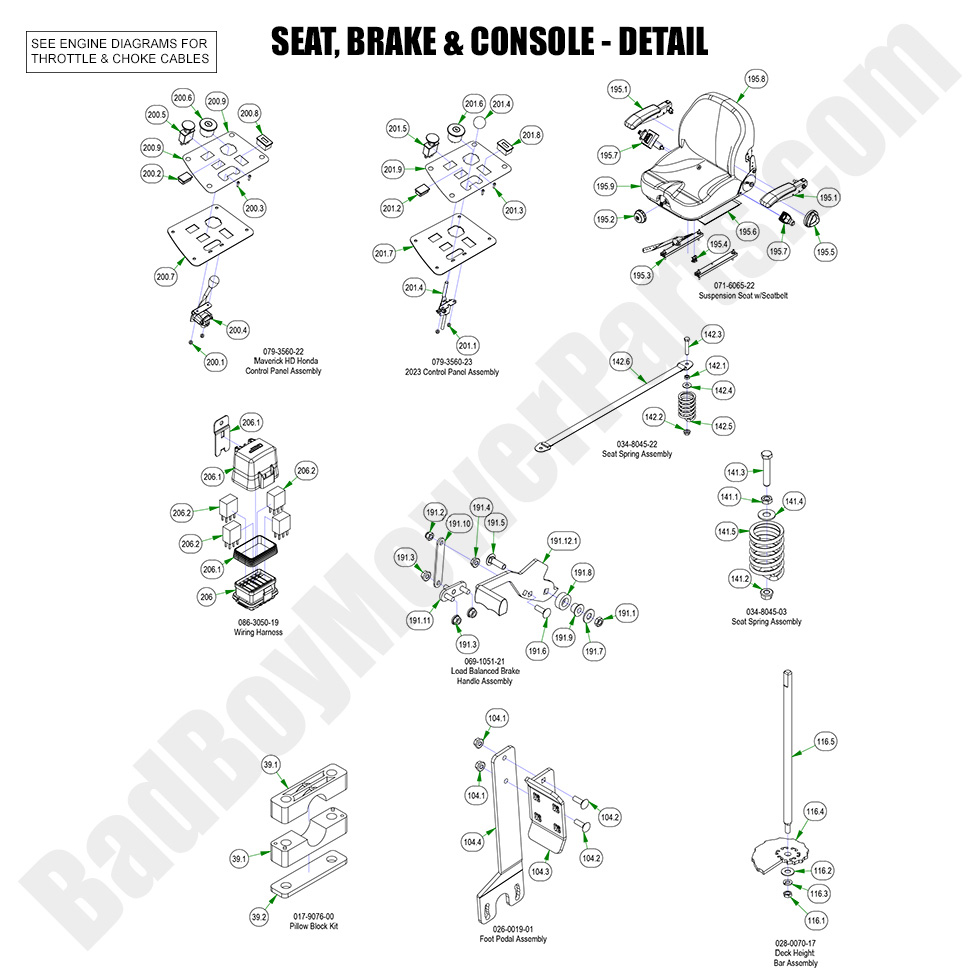

2023 Maverick HD - Seat, Brake & Console - Detail

2023 Maverick HD - Seat, Brake & Console - Detail

The 2023 Maverick HD Seat, Brake & Console - Detail is an essential part of your mower's control system, ensuring safety and functionality. Using Bad Boy Mower Part diagrams can help you quickly identify the right replacement parts. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts, including brake pedals, control panels, and seat adjustments. Our Bad Boy Lawn Mower Parts are engineered for precision and longevity. Shopping for Bad Boy Parts Online ensures you get exactly what you need with ease. Plus, enjoy Free Shipping On Orders Over $100, making it more cost-effective to maintain your 2023 Maverick HD Seat, Brake & Console - Detail. Order today to ensure a smooth and controlled mowing experience!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
39.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
39.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
39.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
104.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
104.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
104.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
104.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
104.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
116.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
116.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
116.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
116.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
116.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
116.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
141.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
141.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
141.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
141.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
141.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
142.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
142.6 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
191.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
191.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
191.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
191.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
191.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
191.8 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
191.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
191.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
191.11 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
191.12.1 069-3000-00 069-3000-00 - Switch Relocation Brake Handle No Longer Available
Obsolete.
195.0 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
195.1 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
195.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
195.3 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
195.4 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
195.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
195.6 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
195.7 071-6063-00 071-6063-00 - Seatbelt Kit for 071-6065-00
$119.99
195.8 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
195.9 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
200.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
200.2 018-1040-00 018-1040-00 - Light Plug
$2.99
200.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
200.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
200.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
200.7 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
200.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
200.9 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
206.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
206.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
206.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
