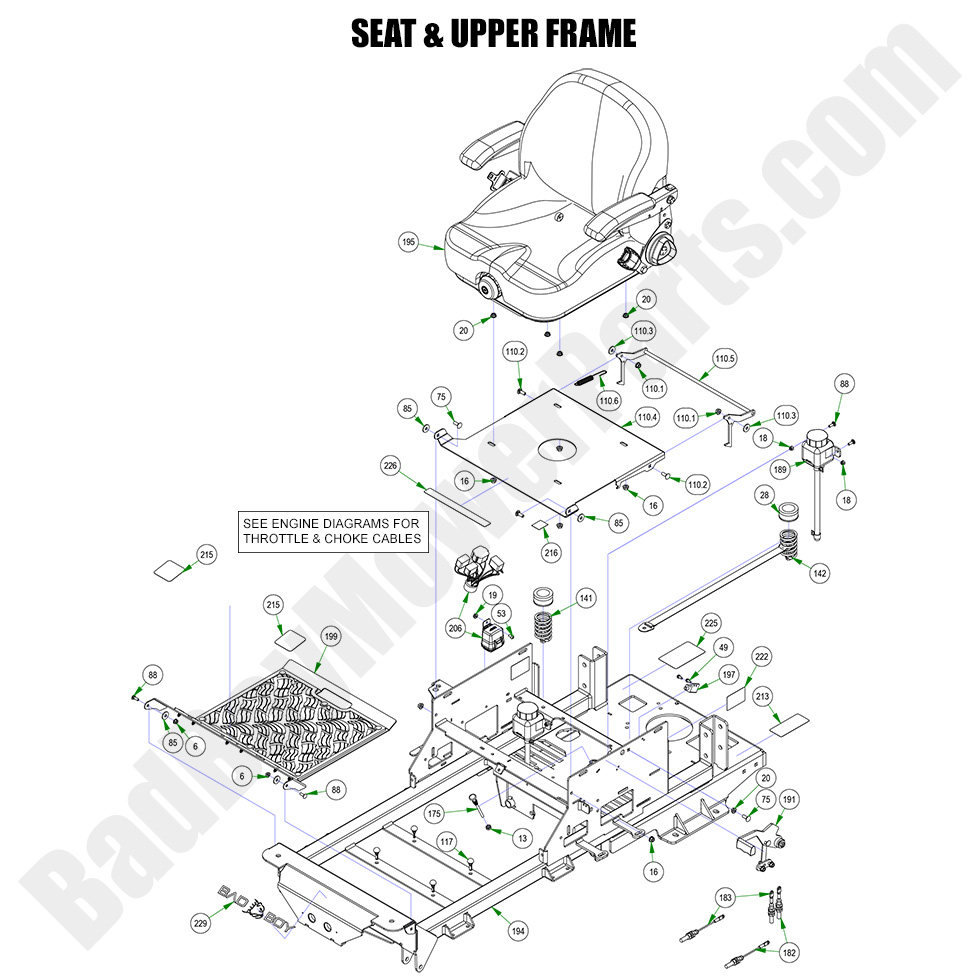

2023 Maverick HD - Seat & Upper Frame

2023 Maverick HD - Seat & Upper Frame

The 2023 Maverick HD Seat & Upper Frame provides comfort and durability, ensuring a smooth ride while mowing. If you need replacement parts, Bad Boy Mower Part diagrams make it easy to locate the exact components. At BadBoyMowerParts.com, we stock a full range of Bad Boy Mower Parts, including seat cushions, brackets, and frame reinforcements. Our Bad Boy Lawn Mower Parts are built for reliability and long-lasting use. Ordering Bad Boy Parts Online allows you to quickly find what you need. Plus, with Free Shipping On Orders Over $100, maintaining your 2023 Maverick HD Seat & Upper Frame is both convenient and affordable. Don’t let worn-out parts compromise your mower’s comfort—order today and keep your mower performing at its best!

Bad Boy Mower Parts Lookup

2023 Maverick HD - Seat & Upper Frame
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
22 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
28 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
49 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
53 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
75 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
85 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
88 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
110.4 026-1016-00 026-1016-00 - Seat Plate
$102.11
110.5 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
110.6 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
117 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
141 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
142 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
182 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
183 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
189 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
191 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
195 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
197 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
199 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
206 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
213 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
215 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
216 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
225 091-3017-50 091-3017-50 - Maverick Pump Belt Decal
$4.83
226 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
229 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
