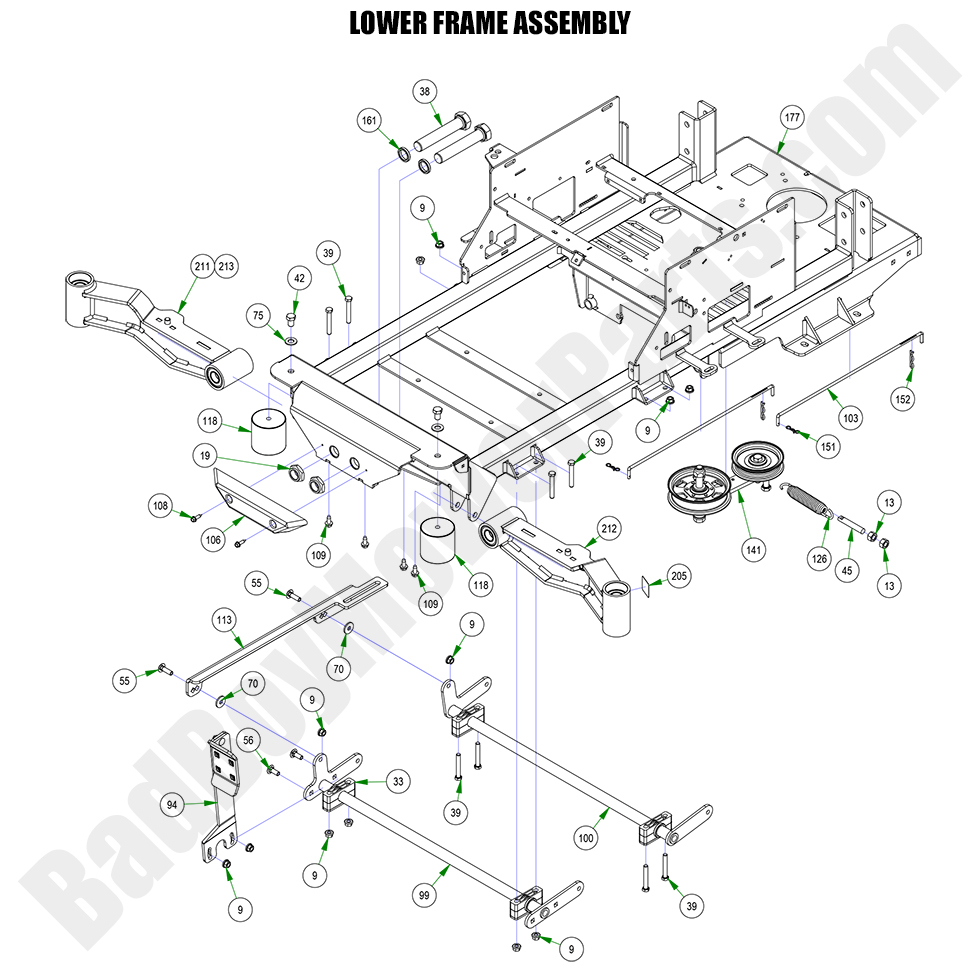

2023 Maverick - Lower Frame Assembly

2023 Maverick - Lower Frame Assembly

The 2023 Maverick Lower Frame Assembly provides the foundation for your mower, ensuring structural strength and durability. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts to keep your mower in optimal condition. Our Bad Boy Mower Part diagrams help you find the right frame components, from brackets to fasteners. Whether you're replacing a damaged section or reinforcing your machine, our Bad Boy Lawn Mower Parts selection guarantees a precise fit. Ordering Bad Boy Parts Online is quick and easy, with everything you need at your fingertips. Plus, take advantage of Free Shipping On Orders Over $100, making repairs more cost-effective. Trust BadBoyMowerParts.com to provide durable, high-quality replacement parts for your 2023 Maverick, ensuring long-lasting performance and reliability.

Bad Boy Mower Parts Lookup

2023 Maverick - Lower Frame Assembly
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
33 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
38 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
39 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
42 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
45 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
55 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
56 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
70 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
75 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
94 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
99 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
100 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
103 028-0070-00 028-0070-00 - Neutral Rod
$12.48
106 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
108 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
109 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
113 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
118 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
126 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
141 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
151 044-2004-00 044-2004-00 - Bow Pin
$2.99
152 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
161 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
205 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
211 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
212 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
213 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
