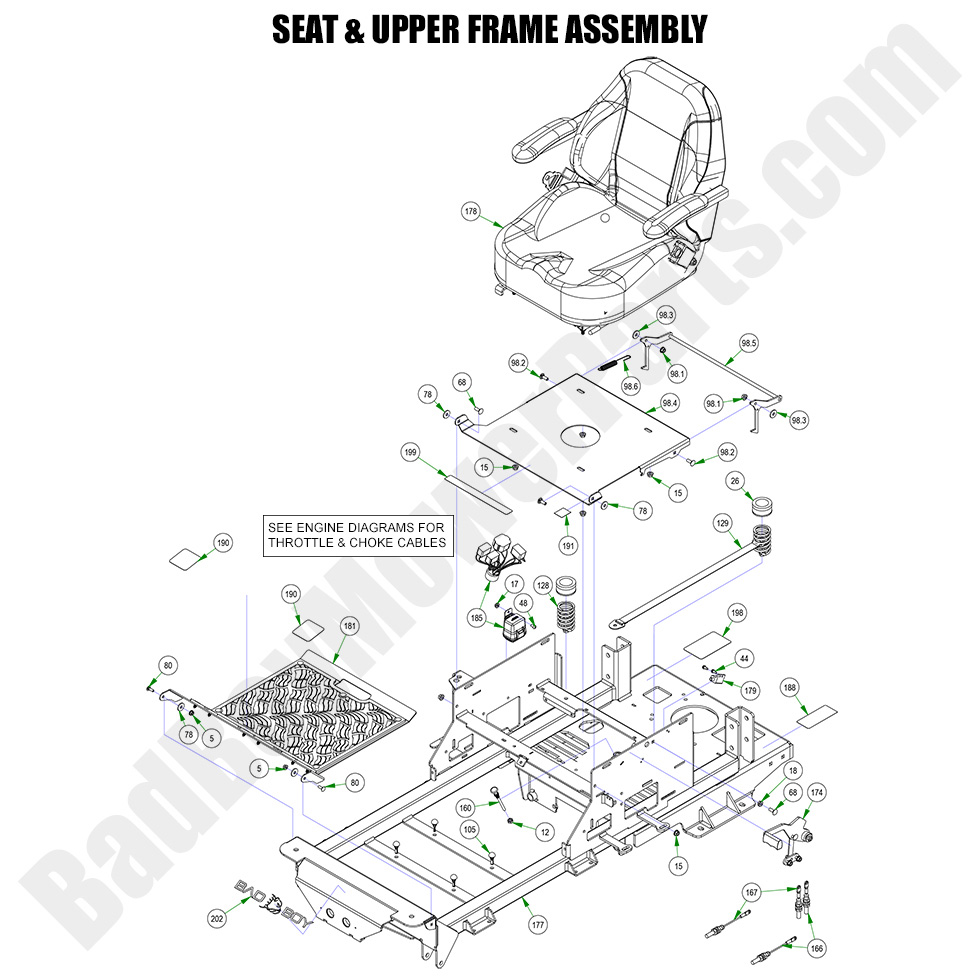

2023 Maverick - Seat & Upper Frame Assembly

2023 Maverick - Seat & Upper Frame Assembly

The 2023 Maverick Seat & Upper Frame Assembly provides comfort and durability while supporting key mower functions. At BadBoyMowerParts.com, we carry top-quality Bad Boy Mower Parts to ensure your seat and frame remain sturdy and comfortable. Our Bad Boy Mower Part diagrams help you locate and replace seat cushions, mounting brackets, and frame components with ease. Whether you're restoring a worn seat or replacing damaged frame parts, our Bad Boy Lawn Mower Parts inventory has exactly what you need. Shopping for Bad Boy Parts Online is simple, with all parts organized for quick access. Plus, enjoy Free Shipping On Orders Over $100, making maintenance and upgrades more affordable. Trust BadBoyMowerParts.com to keep your 2023 Maverick in peak condition with high-quality replacement parts for long-lasting performance and comfort.

Bad Boy Mower Parts Lookup

2023 Maverick - Seat & Upper Frame Assembly
  Position Number SKU Product Title Price
5 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
18 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
44 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
48 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
68 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
78 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
80 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
98.4 026-1016-00 026-1016-00 - Seat Plate
$102.11
98.5 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
98.6 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
105 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
128 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
129 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
166 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
167 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
174 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
178 071-2102-22 071-2102-22 - 2022 - 2023 Maverick Seat
$692.99
179 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
181 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
185 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
188 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
190 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
191 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
198 091-3017-50 091-3017-50 - Maverick Pump Belt Decal
$4.83
199 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
202 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
