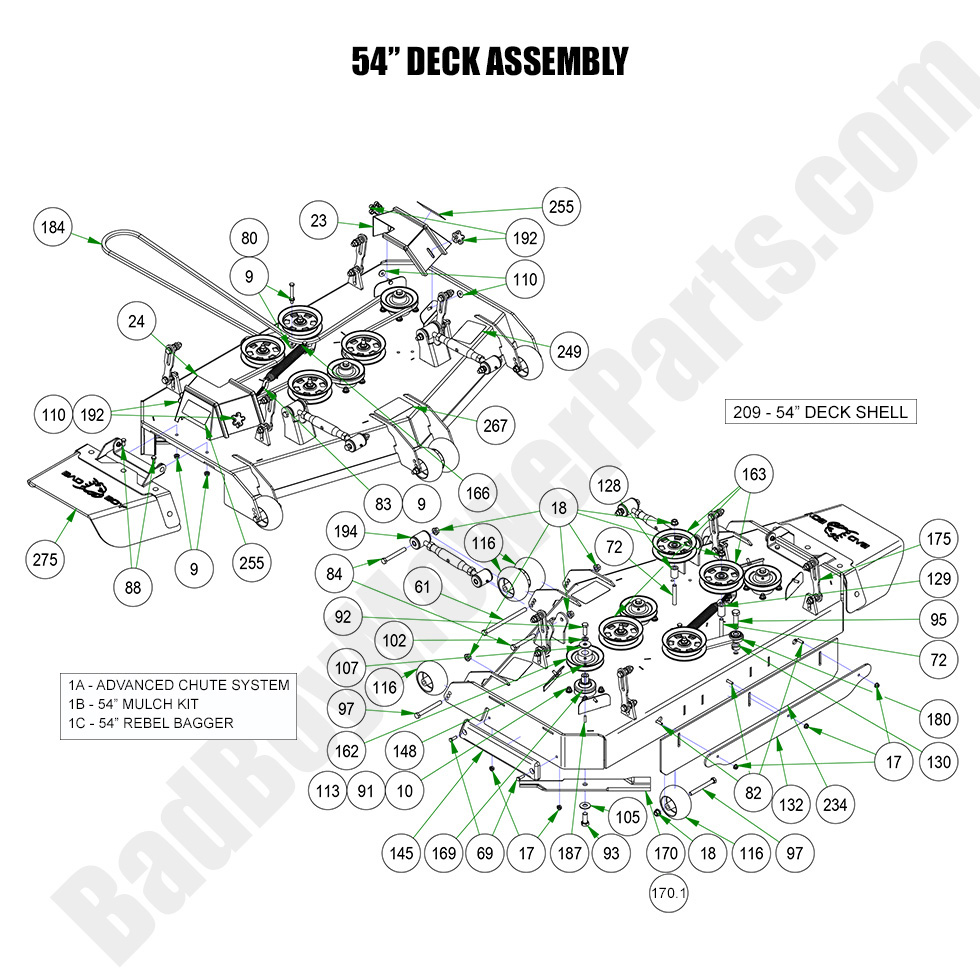

2023 Rebel - 54" Deck Assembly

2023 Rebel - 54" Deck Assembly

The 2023 Rebel 54" Deck Assembly is an essential component of your mower, offering a wide cutting swath for fast, efficient lawn care. Whether you’re dealing with a small or large yard, this deck is built to handle the job with ease. If you need a replacement or parts for the 2023 Rebel 54" Deck Assembly, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts designed specifically for this model. We provide Bad Boy Mower Part diagrams that clearly outline the components of the deck assembly, making it easy for you to identify the parts you need. Our inventory of Bad Boy Lawn Mower Parts ensures that your mower’s deck stays in excellent condition, delivering clean, precise cuts every time. Plus, enjoy Free Shipping On Orders Over $100, making deck repairs or upgrades affordable and easy.

Bad Boy Mower Parts Lookup

2023 Rebel - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
24 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
61 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
72 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
80 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
82 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
83 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
84 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
88 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
91 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
92 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
93 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
95 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
97 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
110 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
116 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
128 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
129 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
130 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
132 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
145 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
148 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
162 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
163 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
166 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
169 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
170.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
170 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
175 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
180 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
184 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
187 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
192 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
194 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
209 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
234 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
249 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
255 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
267 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
275 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
