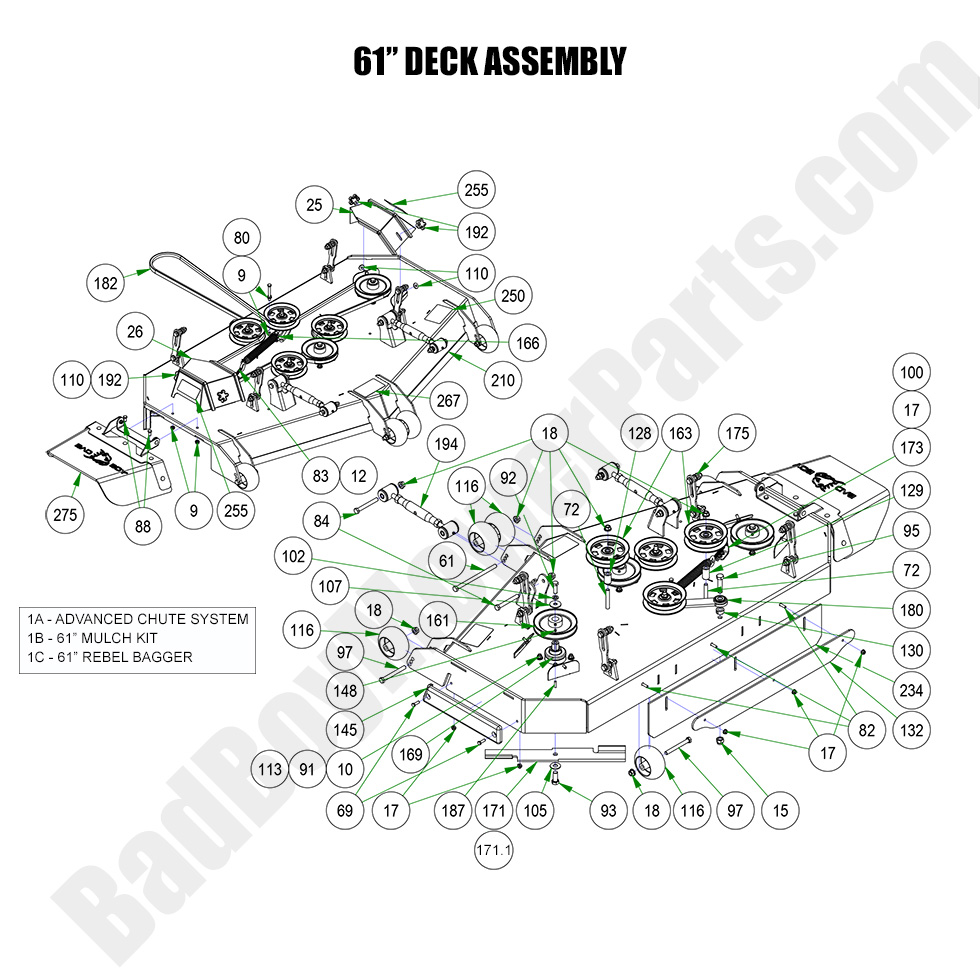

2023 Rebel - 61" Deck Assembly

2023 Rebel - 61" Deck Assembly

The 2023 Rebel 61" Deck Assembly provides a larger cutting width, ideal for professionals or homeowners with extensive lawns. This deck assembly is engineered for performance, offering durability and efficiency even during the most demanding mowing tasks. If you need to replace parts for your 2023 Rebel 61" Deck Assembly, BadBoyMowerParts.com is your one-stop shop for all your needs. We carry a comprehensive range of Bad Boy Mower Parts, from replacement blades to belts and spindles. Our Bad Boy Mower Part diagrams make it easy to locate the exact part you need for your deck. Additionally, our Bad Boy Lawn Mower Parts are built to last, ensuring your mower stays in top shape. Don’t forget, we offer Free Shipping On Orders Over $100, so you can get your deck back in action quickly and affordably

Bad Boy Mower Parts Lookup

2023 Rebel - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
26 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
61 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
72 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
80 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
82 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
83 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
84 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
88 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
91 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
92 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
93 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
95 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
97 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
100 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
110 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
116 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
128 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
129 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
130 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
132 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
145 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
148 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
161 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
163 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
166 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
169 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
171.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
171 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
173 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
175 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
180 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
182 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
187 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
192 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
194 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
210 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
234 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
250 091-0917-18 091-0917-18 - 2018-2023 61" Deck Decal
$6.41
255 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
267 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
275 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
