2023 Rebel - Cover & Seat Pan

2023 Rebel - Cover & Seat Pan

The 2023 Rebel Cover & Seat Pan are important parts of your mower’s structure, providing protection and comfort for the operator. The cover shields the internal components from debris and weather, while the seat pan supports the operator’s seat, ensuring comfort during long mowing sessions. If you need replacements or upgrades for these components, BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts. Our Bad Boy Mower Part diagrams make it easy to identify and purchase the correct parts for your 2023 Rebel. With our extensive selection of Bad Boy Lawn Mower Parts, you’ll find everything you need to keep your mower in top condition. And with Free Shipping On Orders Over $100, you can make your mower repairs and upgrades hassle-free and affordable.

Bad Boy Mower Parts Lookup

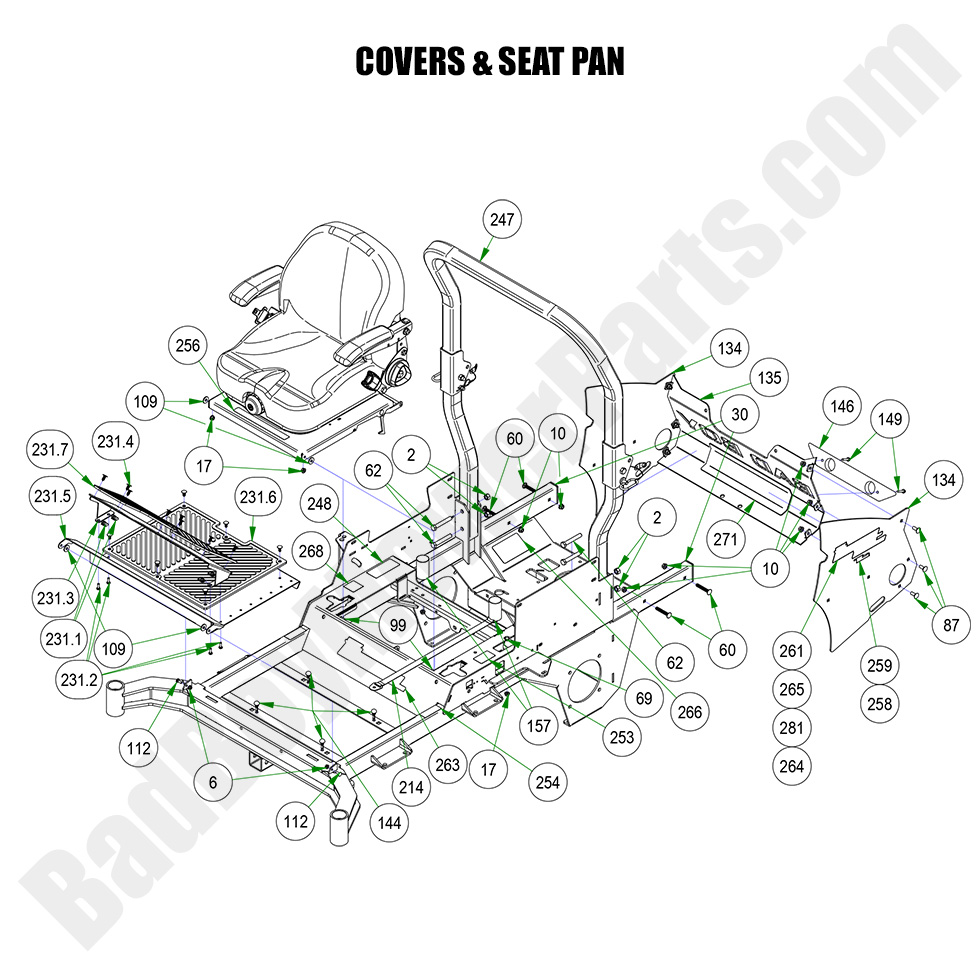

2023 Rebel - Cover & Seat Pan
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
60 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
62 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
87 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
99 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
112 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
134 026-2219-00 026-2219-00 - 2019-2022 Vertical Rigid Rear Cover Side Component
$169.99
135 026-2221-22 026-2221-22 - Vertical Rear Cover Tailgate-Black
$255.99
144 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
146 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
149 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
157 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
214 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
231.1 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
231.2 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
231.3 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
231.4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
231.5 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
231.6 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
231.7 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
247 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
248 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
253 091-1101-18 091-1101-18 - Brake Decal (See Models Used On for Details)
$6.04
254 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
256 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
258 091-4003-22 091-4003-22 2022 Powered by Kawasaki Decal
$2.99
259 091-4004-22 091-4004-22 - Powered by Kohler Decal
$6.04
261 091-4007-00 091-4007-00 - 2019-2022 Rebel 852cc Backplate Cluster
$12.48
263 091-4010-00 091-4010-00 - 2019-2023 Rebel Cooler Cover Decal
$8.01
264 091-4011-00 091-4011-00 - 2019-2022 Rebel 747cc Backplate Cluster
$12.48
265 091-4023-00 091-4023-00 - 2019-2022 Rebel 999cc Backplate Cluster
$14.19
266 091-4034-00 091-4034-00 - 2019-2022 Rebel Pump Belt Route Decal
$7.25
268 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
271 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
281 091-8023-00 091-8023-00 - Rebel Kawasaki 822CC EFI Backplate Decal
$21.39
