2023 Rebel - Drive Arm Assembly

2023 Rebel - Drive Arm Assembly

The 2023 Rebel Drive Arm Assembly is integral to your mower’s operation, enabling the drive system to move the wheels smoothly. If the drive arm becomes damaged or worn out, it’s crucial to replace it to maintain optimal mower performance. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts designed to fit your 2023 Rebel model. With our clear Bad Boy Mower Part diagrams, you can easily find the exact drive arm assembly and related components you need. We also carry other essential Bad Boy Lawn Mower Parts to keep your mower running at peak performance. Don't forget to take advantage of Free Shipping On Orders Over $100, making it more affordable to get your mower back in working order.

Bad Boy Mower Parts Lookup

2023 Rebel - Drive Arm Assembly
  Position Number SKU Product Title Price

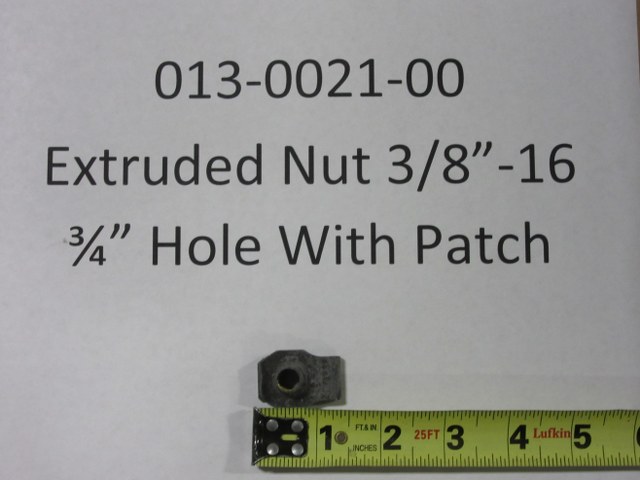

3 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
16 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
66 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
68 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
73 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
76 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
94 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
104 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99

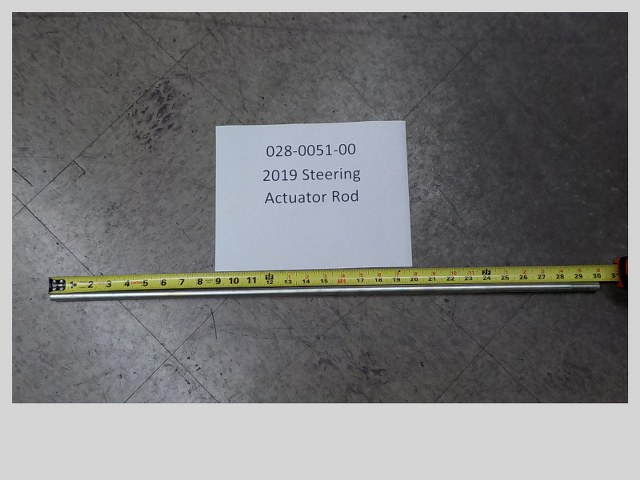

141 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
152 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
153 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17

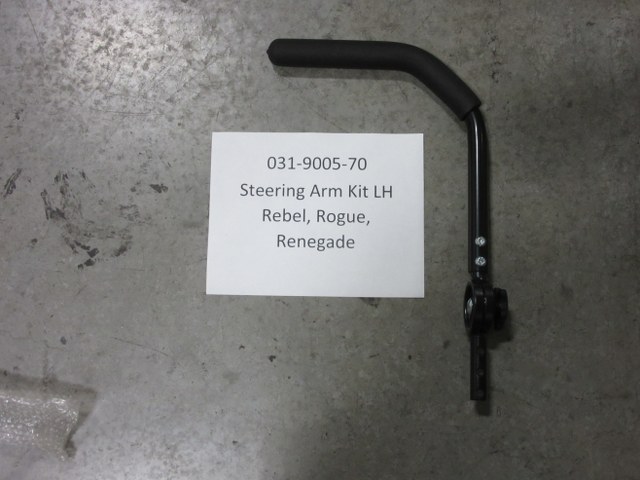

155 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68

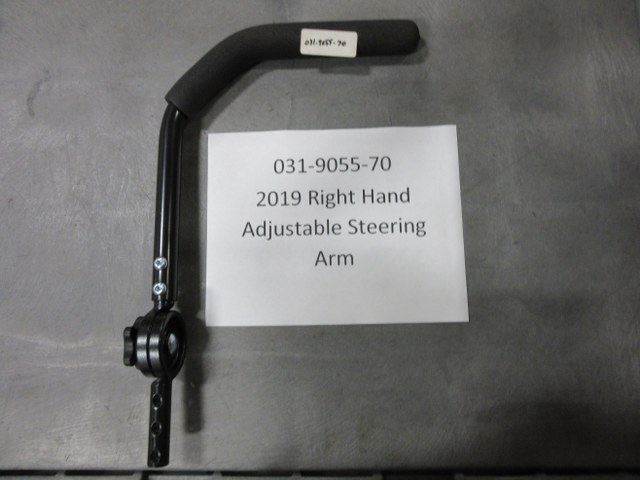

156 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31

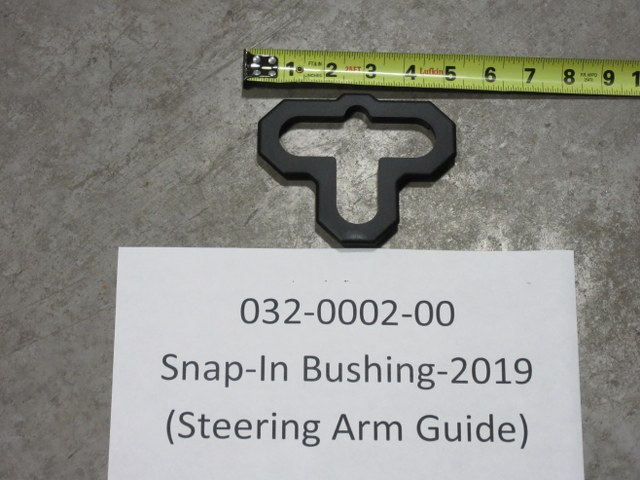

158 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55

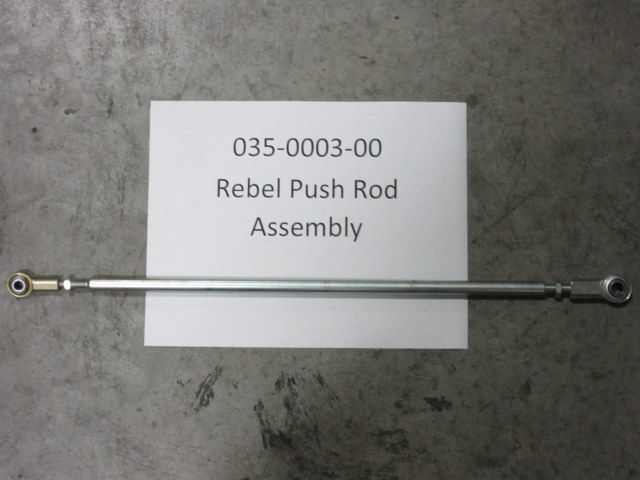

168 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58

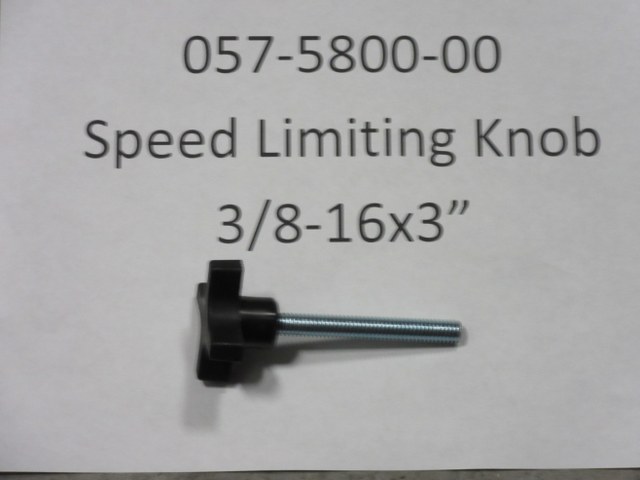

207 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
224 070-2304-00 070-2304-00 - 2023-Newer Rebel Frame--Orange
$1099.99
229 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99

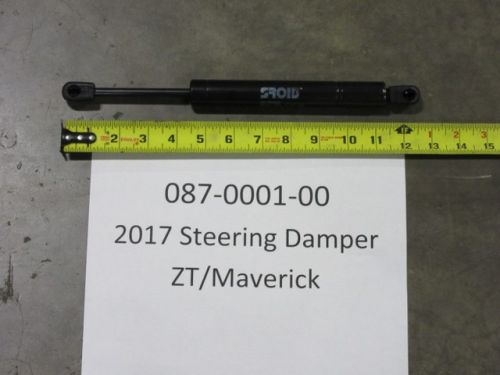

243 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40

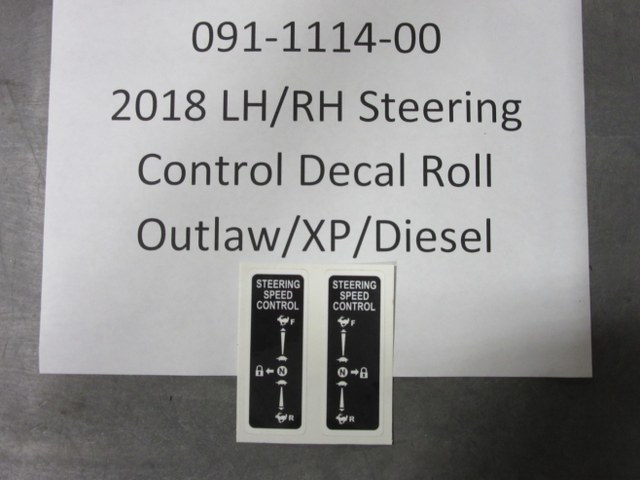

254 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60

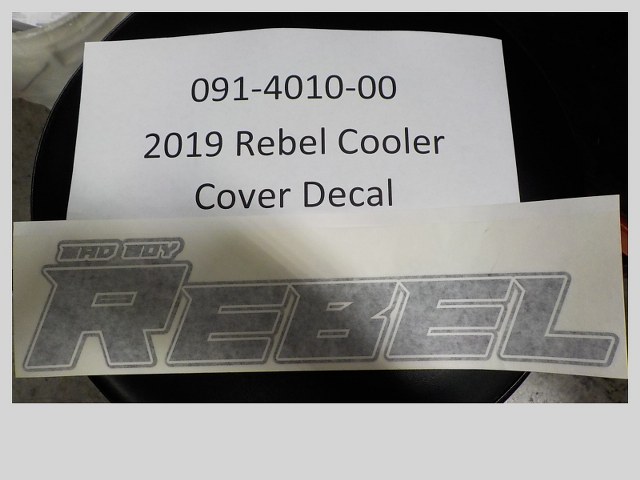

263 091-4010-00 091-4010-00 - 2019-2023 Rebel Cooler Cover Decal
$8.01
