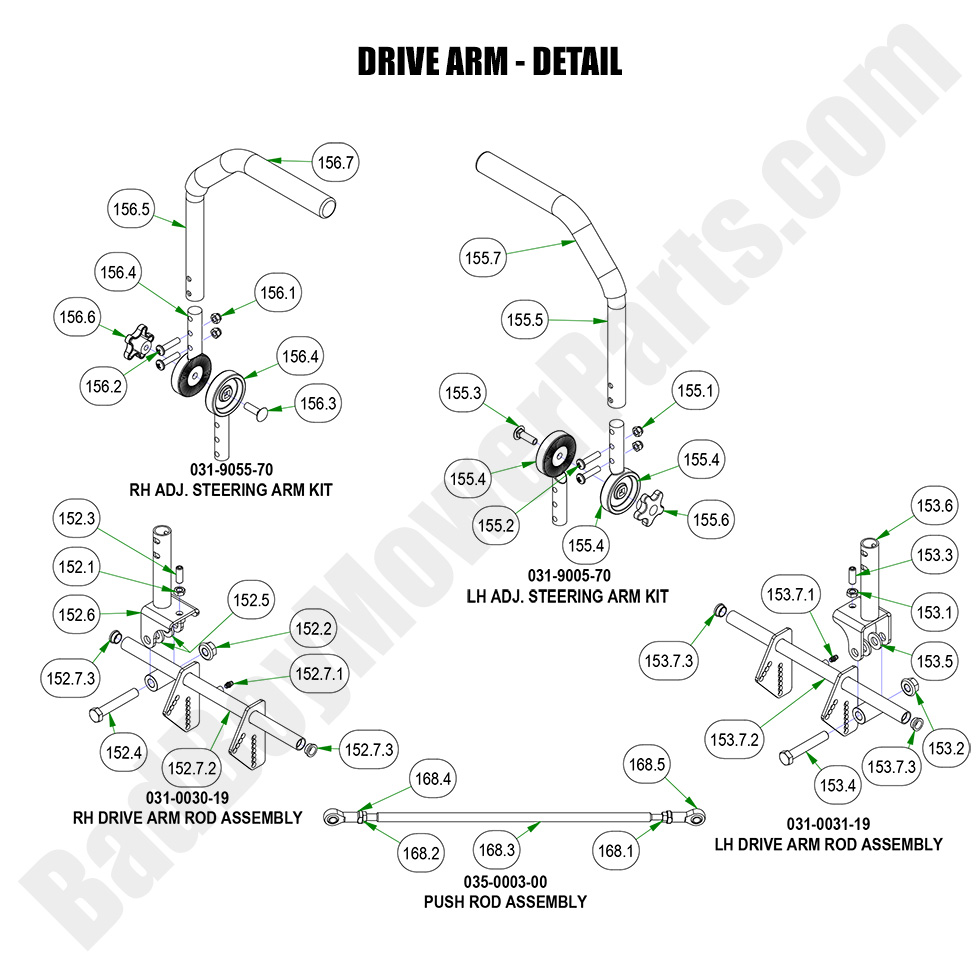

2023 Rebel - Drive Arm - Detail

2023 Rebel - Drive Arm - Detail

The 2023 Rebel Drive Arm - Detail is an essential part of your mower's drive system, providing the necessary force for movement. This arm plays a critical role in transferring power from the engine to the wheels, allowing your mower to move smoothly across your lawn. If you need to replace or repair this component, BadBoyMowerParts.com has a wide selection of Bad Boy Mower Parts designed for the 2023 Rebel. Our Bad Boy Mower Part diagrams make it easy to locate the specific drive arm and other related components. We offer high-quality Bad Boy Lawn Mower Parts to ensure your mower remains in top operating condition. Plus, enjoy the added benefit of Free Shipping On Orders Over $100, so you can easily get your mower back in action without breaking your budget.

Bad Boy Mower Parts Lookup

2023 Rebel - Drive Arm - Detail
  Position Number SKU Product Title Price
152.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
152.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
152.3 018-0063-00 018-0063-00 - 3/8-16 X 1 Socket Set Screw Cup Point
$2.99
152.4 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
152.5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
152.6 031-0014-00 031-0014-00 - Drive Arm Pivot 2019-2022 Rebel, Renegade & Rogue
$24.92
152.7.1 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
152.7.3 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
152 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
153 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
155.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
155.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
155.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
155.4 031-9005-00 031-9005-00 - Upper/Lower Steering Arm Casting 2019-2023 Rebel, Renegade & Rogue
$28.39
155.5 031-9006-00 031-9006-00 - Steering Arm Tube
$42.79
155.6 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
155.7 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
155 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
156 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
168.1 013-6050-00 013-6050-00 - 5/16 LH Nut For Push Rods
$4.39
168.2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
168.3 035-0003-01 035-0003-01 - 2019-2023 Rebel Rigid Push Rod
$35.30
168.4 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
168.5 048-3002-00 048-3002-00 - Spherical Rod End - LH Thread (See Models Used On For Details)
$32.09
168 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58
