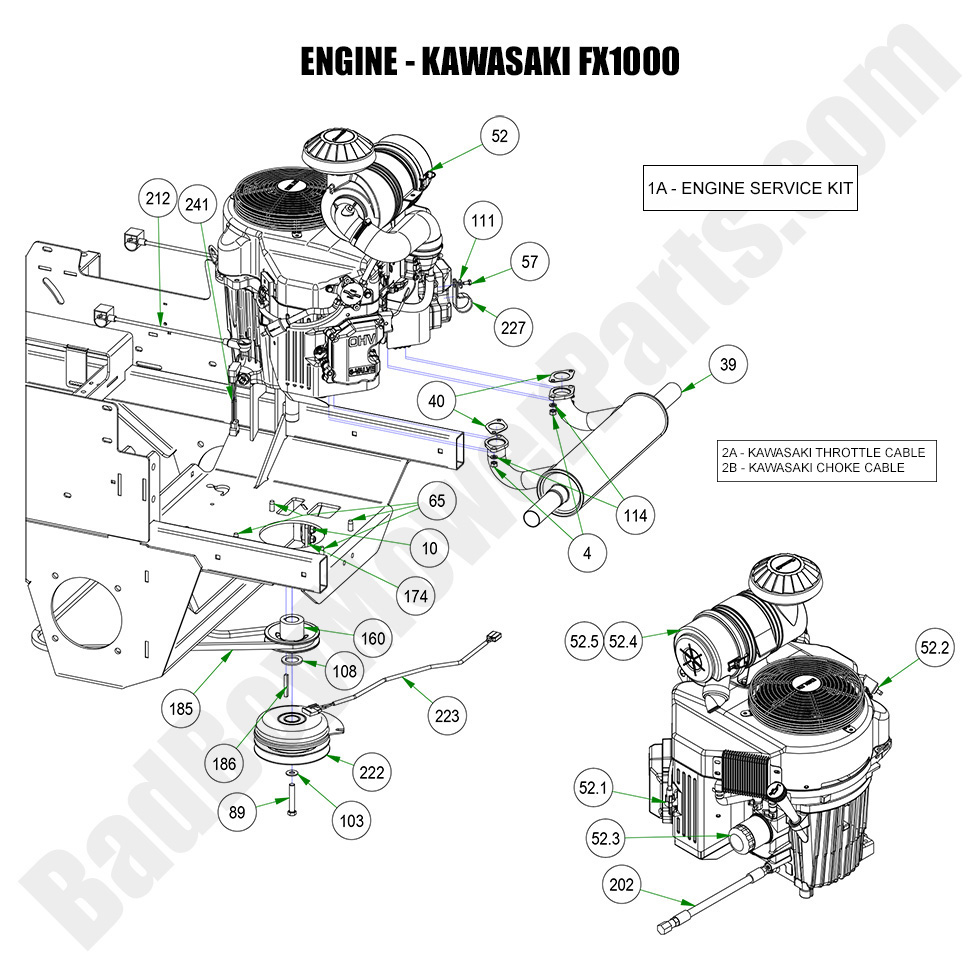

2023 Rebel - Engine - Kawasaki FX1000

2023 Rebel - Engine - Kawasaki FX1000

The 2023 Rebel Engine - Kawasaki FX1000 provides exceptional power and performance, ensuring your mower tackles even the toughest terrain with ease. If you're in need of parts for the Kawasaki FX1000 engine, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts that are compatible with this engine. Our easy-to-use Bad Boy Mower Part diagrams help you quickly identify the components you need, whether you're looking for replacement filters, spark plugs, or other engine parts. We provide a full range of Bad Boy Lawn Mower Parts designed for the 2023 Rebel to ensure optimal mower performance. And with Free Shipping On Orders Over $100, it’s easy to keep your mower in excellent condition at an affordable price.

Bad Boy Mower Parts Lookup

2023 Rebel - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1A 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
39 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
40 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
52.1 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
52.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
52.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
52.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
52.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
52 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99
57 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
65 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
89 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
103 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
108 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
111 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
160 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
185 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
186 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
202 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
212 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
222 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
223 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
227 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
241 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
