2023 Rebel - Engine - Kohler ECV749 EFI

2023 Rebel - Engine - Kohler ECV749 EFI

The 2023 Rebel Engine - Kohler ECV749 EFI delivers the power and efficiency needed for smooth and effective mowing. If you require any replacements or upgrades for the Kohler ECV749 EFI engine, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts that are specifically designed for this engine. Our Bad Boy Mower Part diagrams make it easy to locate the necessary parts for maintenance or repairs. From fuel filters to spark plugs and air filters, we carry a full selection of Bad Boy Lawn Mower Parts to keep your engine running at peak performance. Plus, you can enjoy Free Shipping On Orders Over $100, making it affordable and convenient to keep your mower in excellent working condition.

Bad Boy Mower Parts Lookup

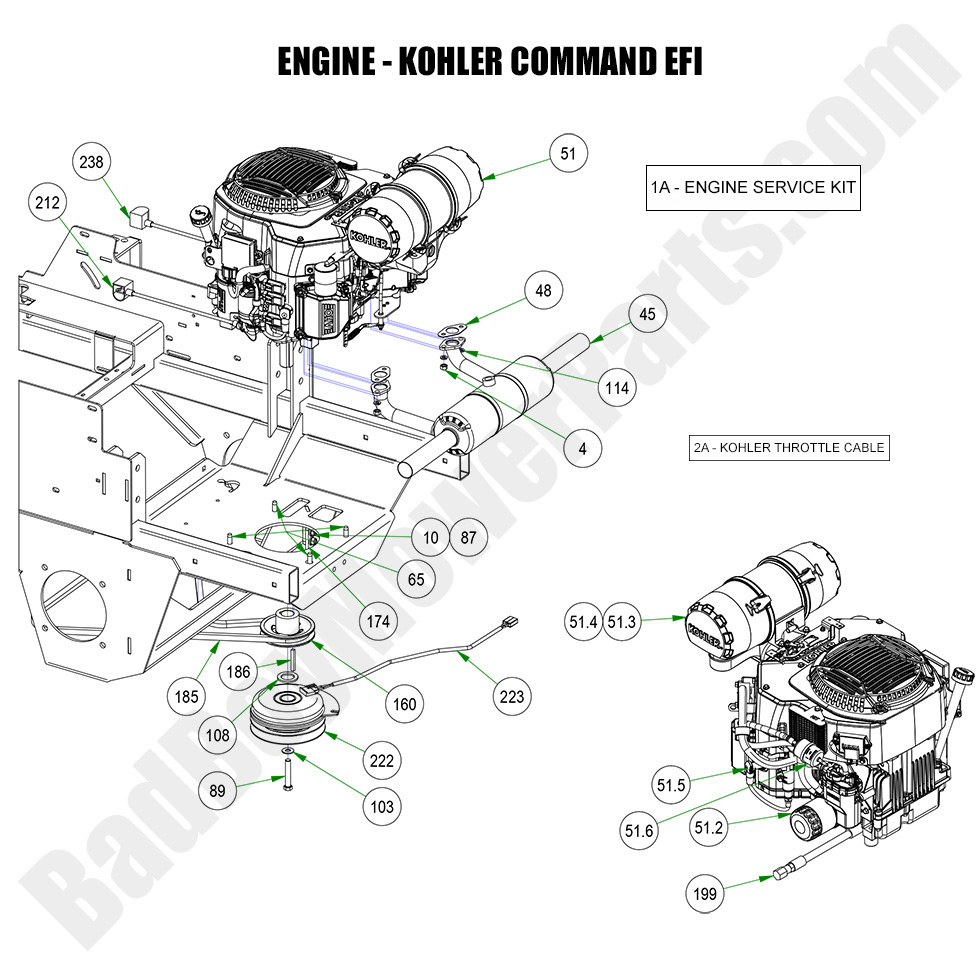

2023 Rebel - Engine - Kohler ECV749 EFI
  Position Number SKU Product Title Price
1A 063-2000-17 063-2000-17 - Kohler ECV749 Engine Service Kit
$138.32
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99

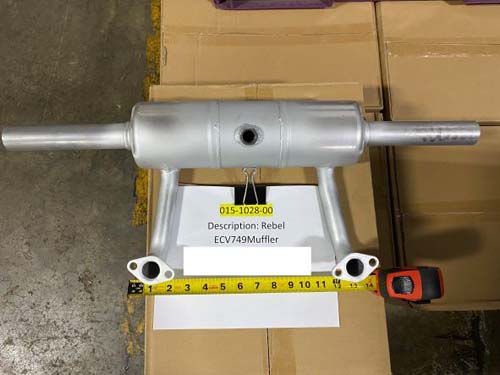

45 015-1028-00 015-1028-00 - Rebel ECV749 Muffler
$106.99
48 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
51.2 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
51.3 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
51.4 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
51.5 015-2023-03 015-2023-03 - Spark Plug for ECV749
$12.83
51.6 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
51 015-7530-00 015-7530-00 - Kohler Command 26.5 EFI ECV749
$2699.00
65 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
87 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
89 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
103 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
108 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
160 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
185 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
186 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
199 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
212 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
222 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
223 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
238 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
