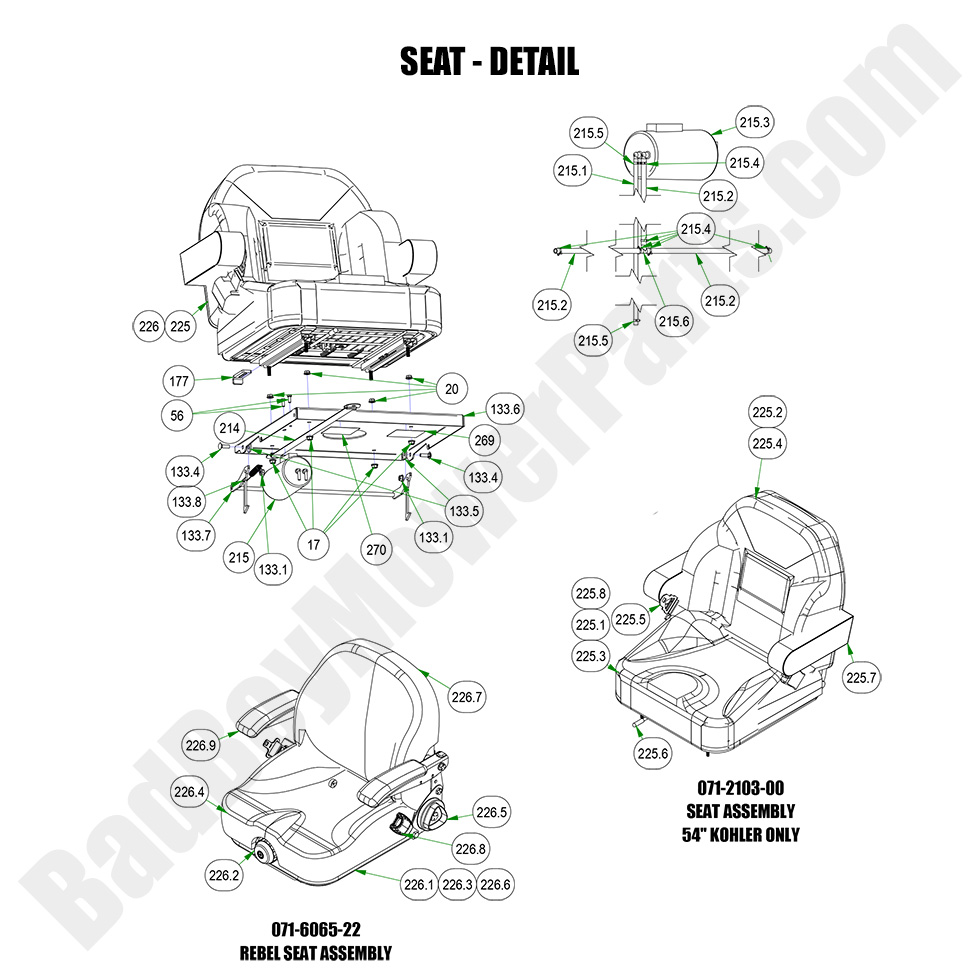

2023 Rebel - Seat Detail

2023 Rebel - Seat Detail

The 2023 Rebel Seat Detail provides comfort and support for the operator during long mowing sessions. A comfortable seat ensures better posture and reduces fatigue, allowing you to focus on the task at hand. If you need a replacement seat or other related components for your 2023 Rebel, BadBoyMowerParts.com has an extensive selection of Bad Boy Mower Parts to suit your needs. We offer clear Bad Boy Mower Part diagrams to help you find the seat or any other components quickly. Our Bad Boy Lawn Mower Parts are designed to ensure your mower’s comfort and performance. With Free Shipping On Orders Over $100, you can maintain your mower without the hassle of high shipping fees.

Bad Boy Mower Parts Lookup

2023 Rebel - Seat Detail
  Position Number SKU Product Title Price
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
56 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
133.4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
133.5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
133.6 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
133.7 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
133.8 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
177 039-2156-00 039-2156-00 - Seat stop
$14.19
214 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
215.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
215.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
215.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
215.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
215.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
215.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
215 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
225.0 071-2103-00 071-2103-00 - 2022 - 2023 Rebel Seat
$599.99
225.1 071-2103-01 071-2103-01 - Seat Cover for 071-2103-00
$145.95
225.2 071-2103-02 071-2103-02 - Back Cover for 071-2103-00
$131.37
225.3 071-2103-03 071-2103-03 - Foam Molded Seat for the 071-2103-00
$96.29
225.4 071-2103-04 071-2103-04 - Foam Molded Back for the 071-2103-00
$96.29
225.5 071-2103-05 071-2103-05 - Seat Belt Set 071-2103-00
$106.14
225.6 071-5015-00 071-5015-00 - Seat Rails
$93.69
225.7 071-5069-00 071-5069-00 - Arm Rest Kit for 071-5060-18
$158.99
225.8 071-5070-00 071-5070-00 - Seat Switch for 071-5060-18
$56.77
226.0 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
226.1 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
226.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
226.3 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
226.4 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
226.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
226.6 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
226.7 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
226.8 071-6063-00 071-6063-00 - Seatbelt Kit for 071-6065-00
$119.99
226.9 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
269 091-4038-00 091-4038-00 - Control Adj. Control Rod Decal
$6.04
270 091-4039-00 091-4039-00 - Control Adj. Control Dampener Decal
$6.04
