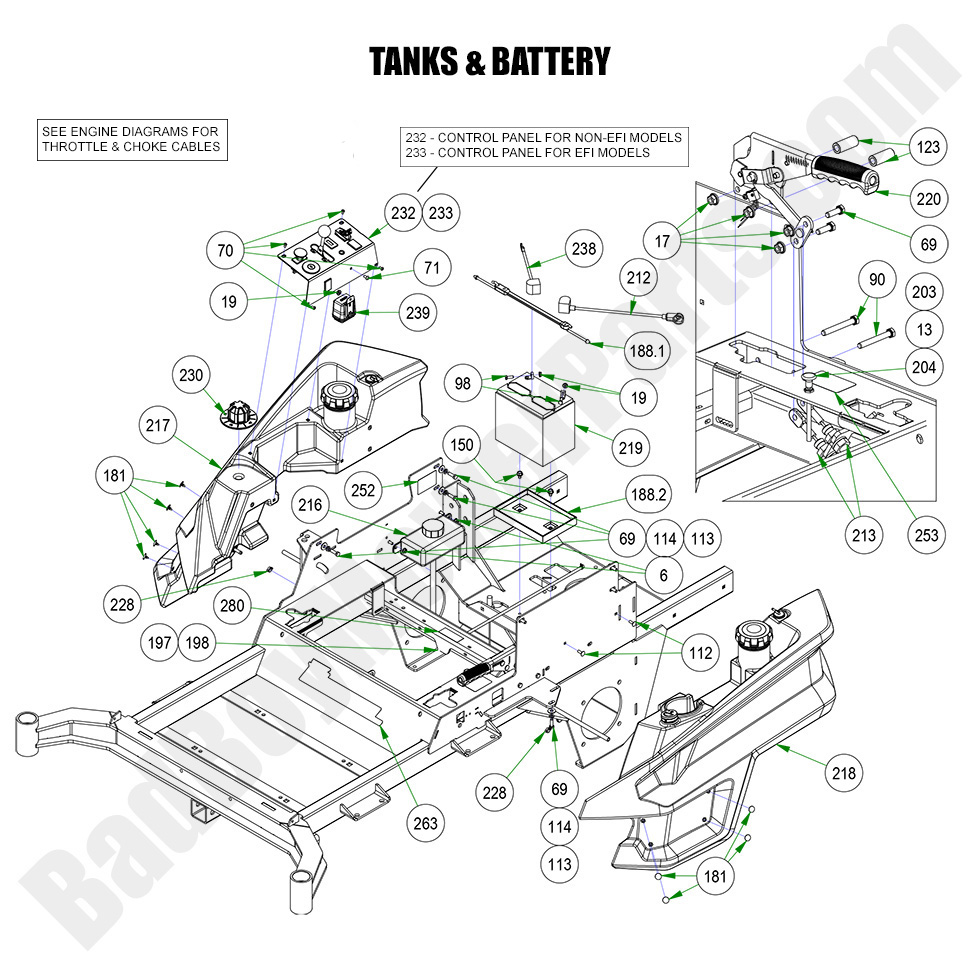

2023 Rebel - Tanks and Battery

2023 Rebel - Tanks and Battery

The 2023 Rebel Tanks and Battery are essential components for your mower’s fuel and electrical systems. The fuel tank ensures a steady supply of fuel for your mower’s engine, while the battery powers the electrical system. If you need replacement parts for your 2023 Rebel Tanks and Battery, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts. We provide detailed Bad Boy Mower Part diagrams to help you find the correct fuel tank or battery for your mower. Whether you're replacing the fuel system or upgrading the battery, we have the Bad Boy Lawn Mower Parts you need to keep your mower running smoothly. Plus, enjoy Free Shipping On Orders Over $100, making it easier and more affordable to maintain your mower’s critical components.

Bad Boy Mower Parts Lookup

2023 Rebel - Tanks and Battery
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
70 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
71 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
90 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
98 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
112 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
123 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
150 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99

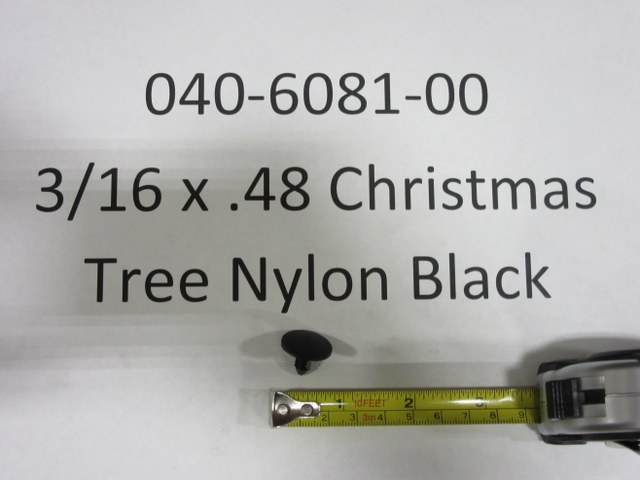

181 040-6081-00 040-6081-00 - 3/16 x.48 Christmas Tree Nylon Black
$2.99
188.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39

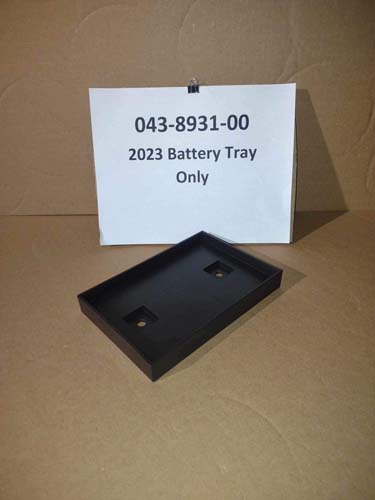

188.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32

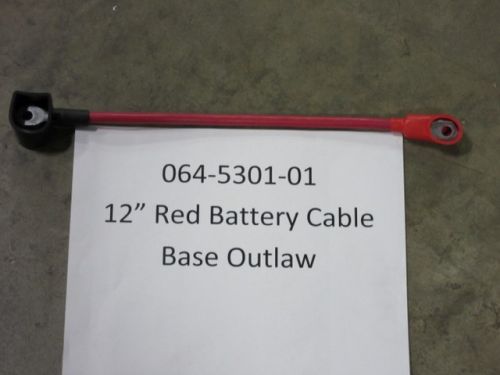

212 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
213 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
216 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
217 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
218 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
220 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
228 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99

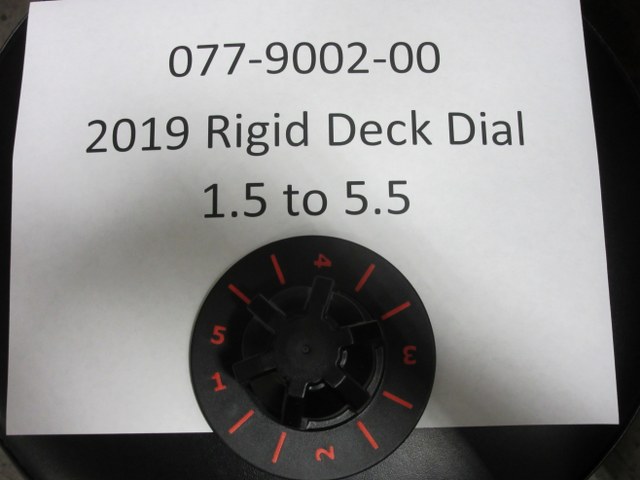

230 077-9002-00 077-9002-00 - Deck Dial 1.5 to 5.5 2019-2022 Rebel
$31.17
232 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
233 079-3581-22 079-3581-22 - Drive by Wire Control Panel (See Models Used On For Detail)
$199.99
238 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
239 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
252 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99

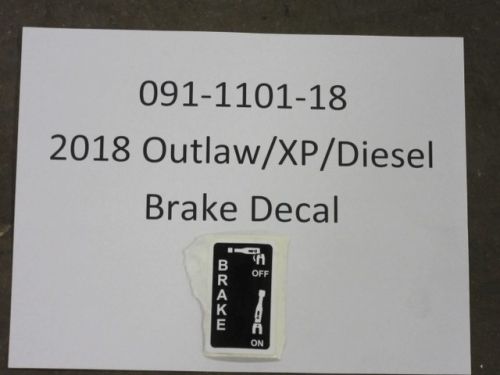

253 091-1101-18 091-1101-18 - Brake Decal (See Models Used On for Details)
$6.04
263 091-4010-00 091-4010-00 - 2019-2023 Rebel Cooler Cover Decal
$8.01
280 091-6022-00 091-6022-00 R-Series Shut Off Valve Decal
$2.99
