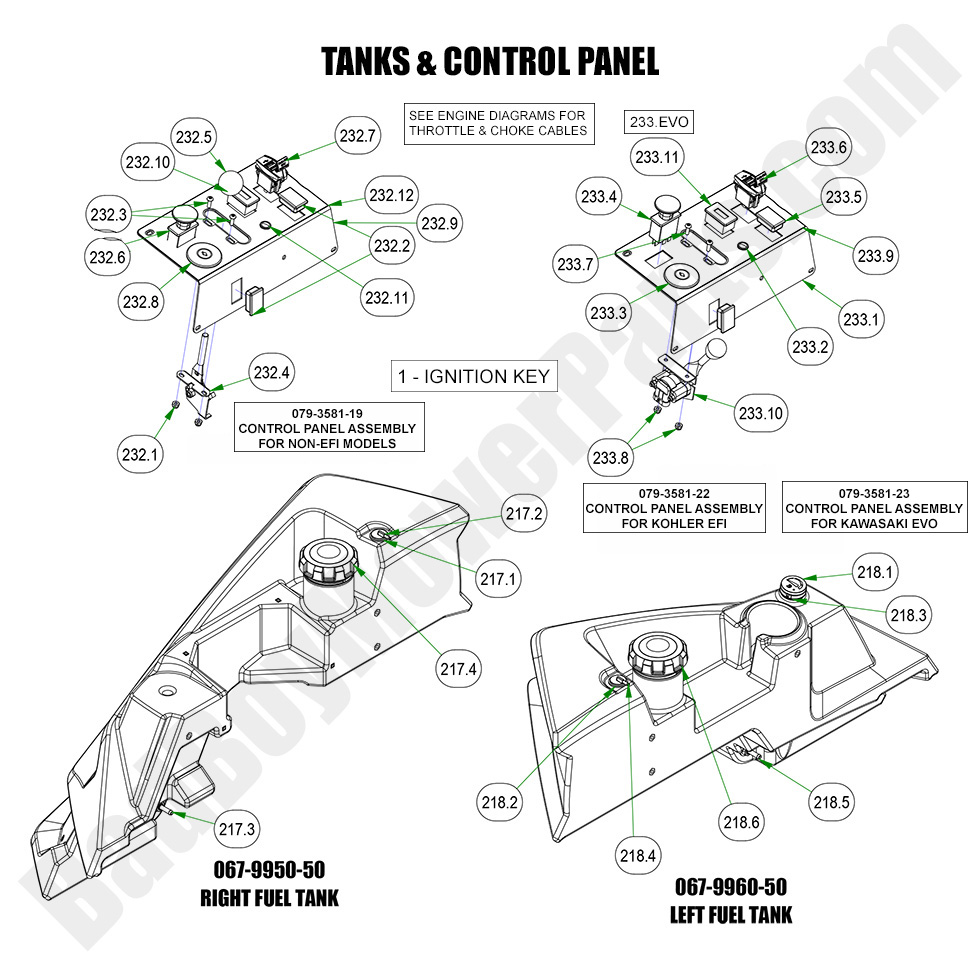

2023 Rebel - Tanks and Control Panel

2023 Rebel - Tanks and Control Panel

The 2023 Rebel Tanks and Control Panel are crucial for managing the fuel and operational settings of your mower. The fuel tank stores the fuel needed for the engine, while the control panel houses the switches and buttons for operation. If you need to replace or repair any of these components, BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts specifically for your 2023 Rebel model. Our Bad Boy Mower Part diagrams make it simple to locate the exact components you need. Whether you're replacing the fuel tank or upgrading the control panel, we offer high-quality Bad Boy Lawn Mower Parts to keep your mower functioning at its best. Plus, enjoy Free Shipping On Orders Over $100 to make your purchase even more affordable.

Bad Boy Mower Parts Lookup

2023 Rebel - Tanks and Control Panel
  Position Number SKU Product Title Price
1 042-9000-00 042-9000-00 - Ignition Key
$4.06
217.0 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
217.1 067-6054-00 067-6054-00 - Fuel Gauge Grommet
$8.01
217.2 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
217.3 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
217.4 067-9904-00 067-9904-00 - Fuel Cap for Fuel Tank 2019-2025 Rebel, Renegade Gas & Rogue
$28.39
218.0 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
218.1 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
218.3 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
232.0 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
232.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
232.2 018-1040-00 018-1040-00 - Light Plug
$2.99
232.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
232.4 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
232.5 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
232.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
232.7 077-2076-00 077-2076-00 - USB Port
$46.84
232.8 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
232.10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
232.11 089-1000-00 089-1000-00 - Oil Light
$12.63
232.12 091-4009-22 091-4009-22 2022-2024 Rebel/Rogue Control Panel Decal
$10.99
233.0 079-3581-22 079-3581-22 - Drive by Wire Control Panel (See Models Used On For Detail)
$199.99
233.11 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
