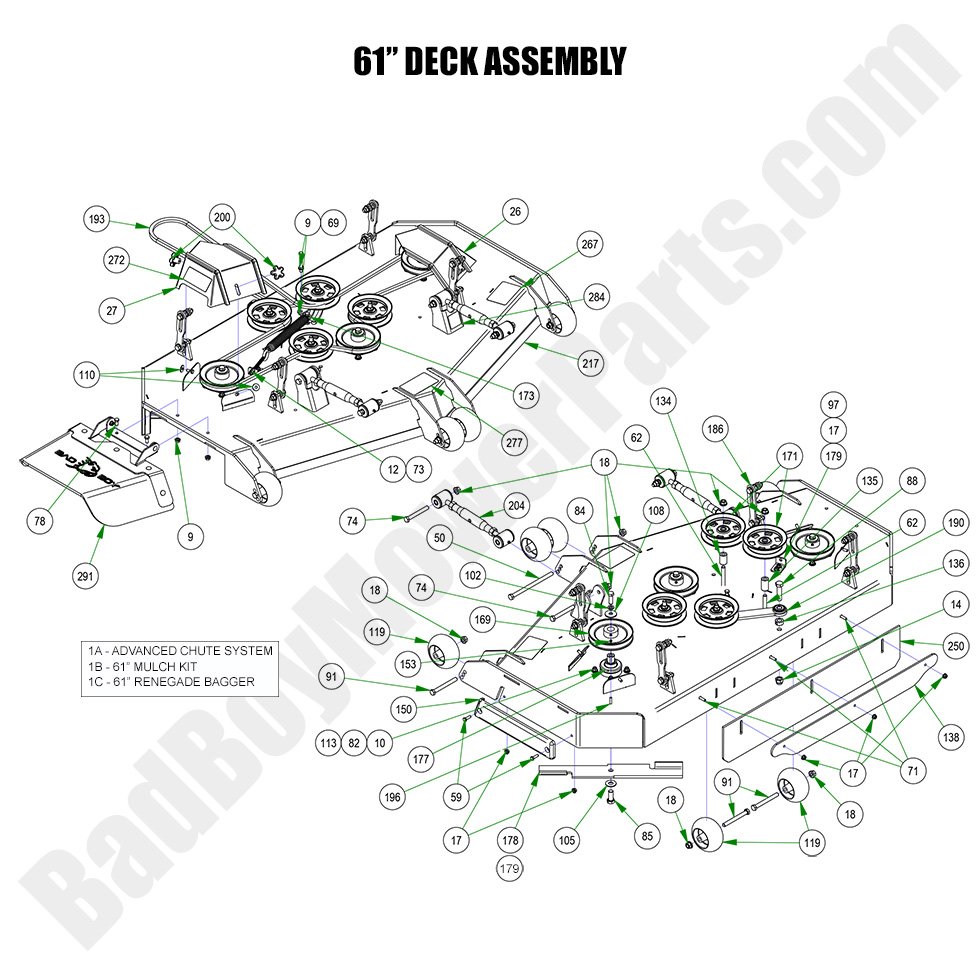

2023 Renegade - Diesel - 61" Deck Assembly

2023 Renegade - Diesel - 61" Deck Assembly

The 2023 Renegade - Diesel 61" Deck Assembly is designed to provide a wide cutting area for efficient lawn care. The 61-inch deck is ideal for mowing large lawns or properties with heavy grass. Whether you’re replacing the deck or need to perform routine maintenance, BadBoyMowerParts.com offers all the Bad Boy Mower Parts you need to keep your deck in top shape. Our easy-to-follow Bad Boy Mower Part diagrams will guide you to the specific components you need for the 2023 Renegade - Diesel. We offer high-quality Bad Boy Lawn Mower Parts to ensure your deck continues to perform at its best. Plus, with Free Shipping On Orders Over $100, it’s easy to get the parts you need quickly and affordably.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
27 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
50 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
59 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
62 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
69 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
71 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
73 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
74 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
78 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
82 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
84 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
85 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
88 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
91 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
97 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
108 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
110 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
119 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
134 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
135 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
136 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
138 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
150 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
153 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
169 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
171 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
173 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
177 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
178 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
179 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
179 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
186 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
190 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
193 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
196 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
200 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
204 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
217 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
250 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
267 091-0917-18 091-0917-18 - 2018-2023 61" Deck Decal
$6.41
272 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
277 091-4033-00 091-4033-00 - 2019-2022 Renegade Deck Belt Route Decal
$9.61
284 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
291 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
