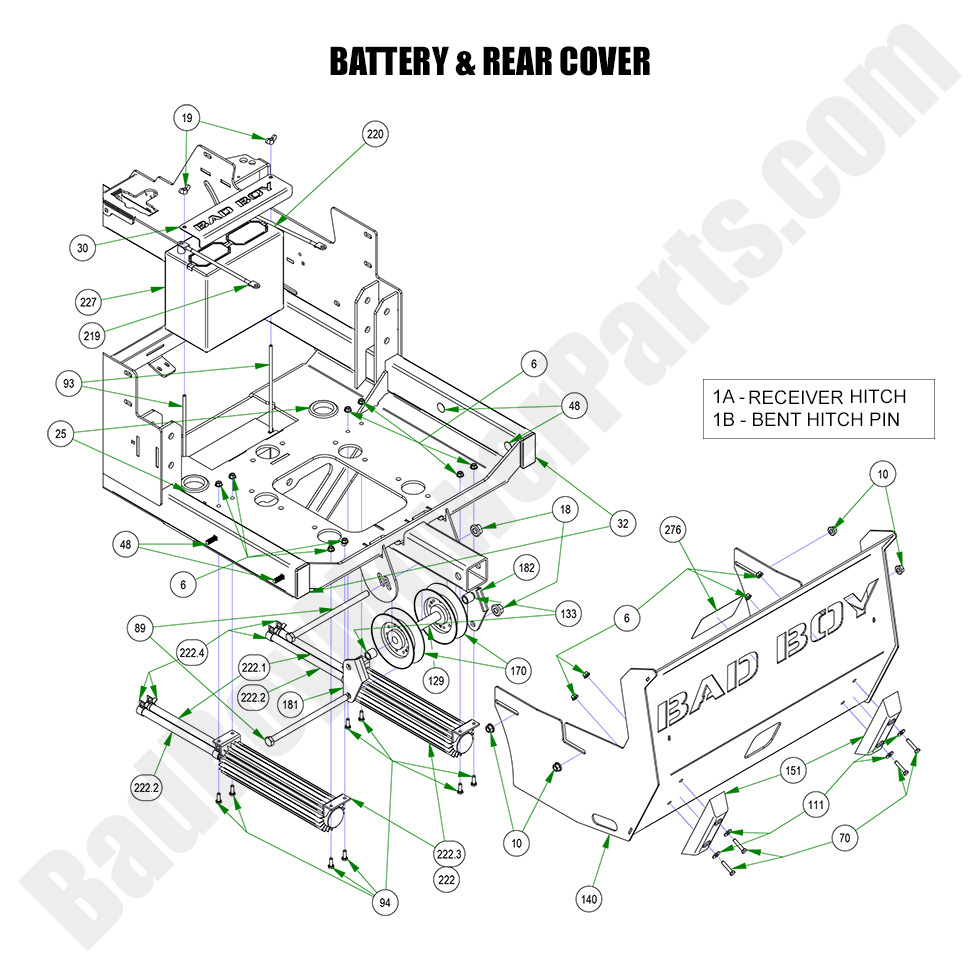

2023 Renegade - Diesel - Battery & Rear Cover

2023 Renegade - Diesel - Battery & Rear Cover

The 2023 Renegade - Diesel Battery & Rear Cover is a crucial part of your mower’s electrical system. The battery powers the engine and other electrical components, while the rear cover protects these parts from dirt, debris, and moisture. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts, including the 2023 Renegade - Diesel Battery & Rear Cover. Our Bad Boy Mower Part diagrams make it simple to locate the exact parts you need to replace or repair. We carry durable Bad Boy Lawn Mower Parts to keep your mower running efficiently. And don’t forget, we offer Free Shipping On Orders Over $100, making it easy and affordable to maintain your mower.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Battery & Rear Cover
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
25 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
30 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
32 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
48 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
70 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
89 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
93 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
94 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
111 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
129 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
133 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
140 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
151 029-7038-00 029-7038-00 - 8 Bumper
$28.32
170 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84
181 039-0196-00 039-0196-00 Rear Deck Belt Keep-LH-Plated
$2.99
182 039-0197-00 039-0197-00 Rear Deck Belt Keep-RH-Plated
$2.99
219 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
220 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
222.1 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
222.2 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
222.3 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
222.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
222 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
276 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
