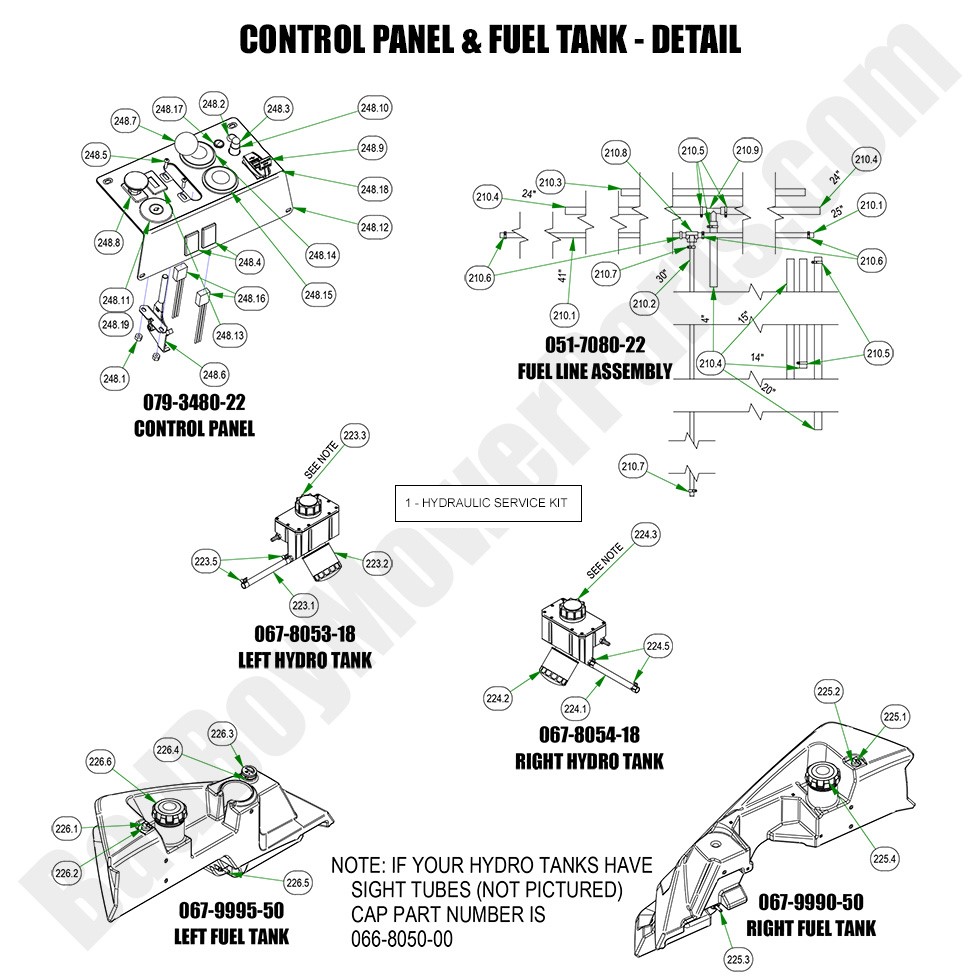

2023 Renegade - Diesel - Control Panel & Fuel Tank - Detail

2023 Renegade - Diesel - Control Panel & Fuel Tank - Detail

The 2023 Renegade - Diesel Control Panel & Fuel Tank - Detail is key to managing your mower’s functionality and fuel supply. The control panel houses the necessary switches for starting the engine and controlling the mower’s speed, while the fuel tank stores the diesel fuel needed for operation. If you need replacement parts for these components, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts. Our detailed Bad Boy Mower Part diagrams will help you find the right control panel or fuel tank for your mower. We offer high-quality Bad Boy Lawn Mower Parts to ensure your mower runs smoothly. Plus, enjoy the convenience of Free Shipping On Orders Over $100, making it easy to keep your equipment in prime working condition.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Control Panel & Fuel Tank - Detail
  Position Number SKU Product Title Price
1 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
210.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
210.2 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
210.3 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
210.4 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
210.5 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
210.6 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
210.7 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
210.8 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
210.9 073-8070-00 073-8070-00 - 5/16 x 5/16 x 5/16 Fuel Line T
$7.69
223.0 067-8053-18 067-8053-18 - LH Renegade Hydro Tank Assy
$201.96
223.1 051-8064-21 051-8064-21 - 21" 1/2 Braided Hose
$11.34
223.2 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
223.3 066-8050-22 066-8050-22 - Cap With Dip Stick
$29.95
223.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
224.0 067-8054-18 067-8054-18 - RH Renegade Hydro Tank Assy
$201.96
225.0 067-9990-50 067-9990-50 - Left Outlaw Renegade Diesel Fuel Tank
$259.99
225.1 024-9903-00 024-9903-00 - 90 Degree Elbow Fitting for 2019-2024 Renegade Diesel Fuel Tank
$8.79
225.2 032-9902-00 032-9902-00 - Nitrile Bushing for 2019-2024 Renegade Diesel Fuel Tank
$4.39
225.3 067-9901-00 067-9901-00 - Bulkhead Fitting for Fuel Tanks 2019-2025 Rebel, Renegade & Rogue
$22.71
225.4 067-9905-00 067-9905-00 - Diesel Fuel Tank Cap for 2019 - 2024 Fuel Tank
$32.09
226.0 067-9995-50 067-9995-50 - Right Outlaw Renegade Diesel Fuel Tank
$261.99
226.3 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
226.4 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
248.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
248.2 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
248.3 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
248.4 018-1040-00 018-1040-00 - Light Plug
$2.99
248.5 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
248.6 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
248.7 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
248.8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
248.9 077-2076-00 077-2076-00 - USB Port
$46.84
248.10 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
248.11 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
248.12 079-3480-00 079-3480-00 - Control Panel
$10.99
248.13 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
248.14 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
248.15 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71

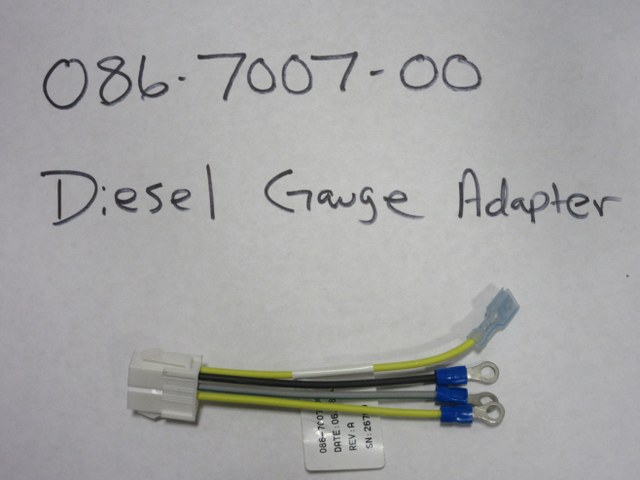

248.16 086-7007-00 086-7007-00 - Diesel Gauge Adapter
$11.76
248.17 089-1000-00 089-1000-00 - Oil Light
$12.63
248.18 091-4016-22 091-4016-22 - 2022 Renegade(Diesel) Control Panel Deca
$10.88
248.19 042-9000-00 042-9000-00 - Ignition Key
$4.06
