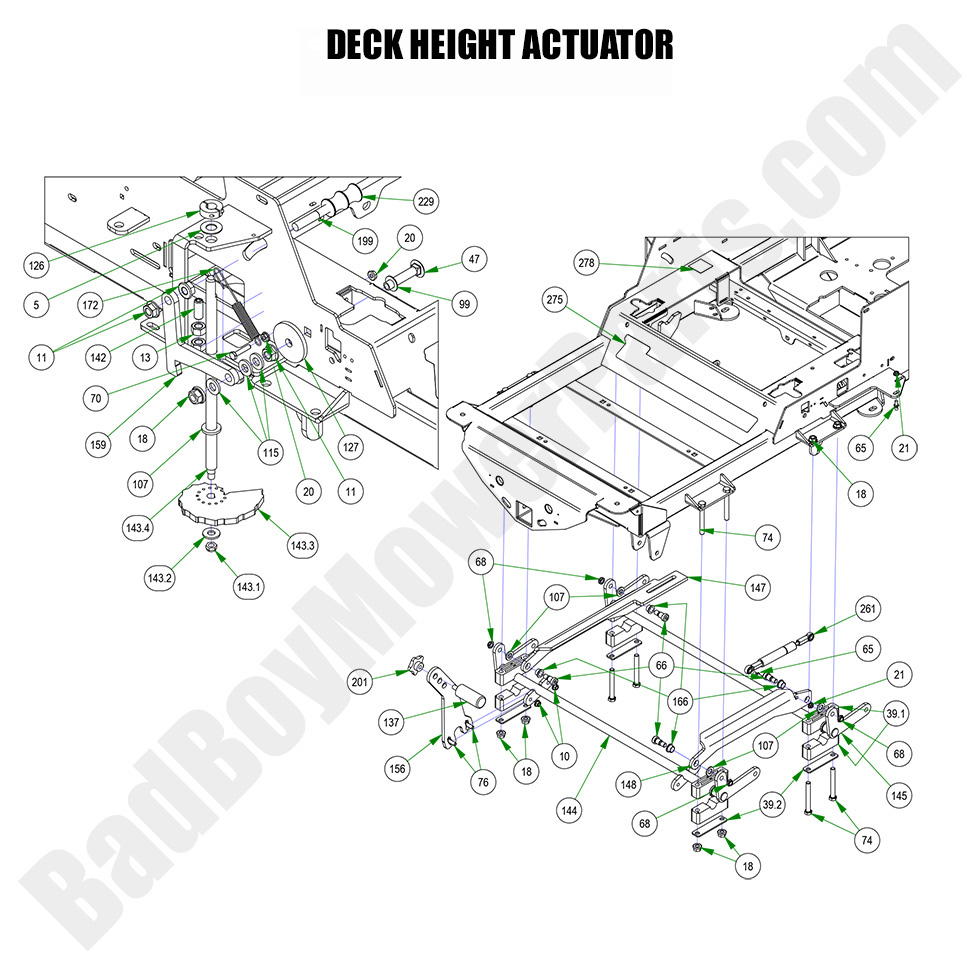

2023 Renegade - Diesel - Deck Height Actuators

2023 Renegade - Diesel - Deck Height Actuators

The 2023 Renegade - Diesel Deck Height Actuators control the adjustment of the mower deck’s height, allowing you to select the perfect cutting height for your lawn. These actuators are vital for ensuring an even and precise cut. If your actuators are damaged or malfunctioning, BadBoyMowerParts.com offers a full range of Bad Boy Mower Parts to replace them. With our Bad Boy Mower Part diagrams, you can easily locate the correct deck height actuators for the 2023 Renegade - Diesel. We provide high-quality Bad Boy Lawn Mower Parts that ensure your mower performs at its best. Plus, enjoy the added benefit of Free Shipping On Orders Over $100, making it more affordable to keep your mower in excellent condition.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Deck Height Actuators
  Position Number SKU Product Title Price
5 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
39.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
39.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
47 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
65 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
66 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
68 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
70 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
74 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
76 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
99 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
107 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
115 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
126 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
127 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
137 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
142 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
143.1 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
143.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
143.3 026-1101-00 026-1101-00 - Deck Height Cam
$15.55
143.4 028-0015-00 028-0015-00 - "R" Series Dial Rod 2019-2022 Rebel, Renegade & Rogue
$17.64
144 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
145 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
147 028-6075-22 028-6075-22 - Actuator Linkage-Right
$43.86
156 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
159 031-0125-00 031-0125-00 - Deck Travel Lock Lever 2019-2022 Rebel, Renegade & Rogue
$28.39
166 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
172 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
199 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
201 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
229 069-4011-00 069-4011-00 - Travel Lock Rubber Grip
$8.79
261 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
275 091-4015-00 091-4015-00 - 2019-2023 Renegade Cooler Cover Decal
$12.48
278 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
