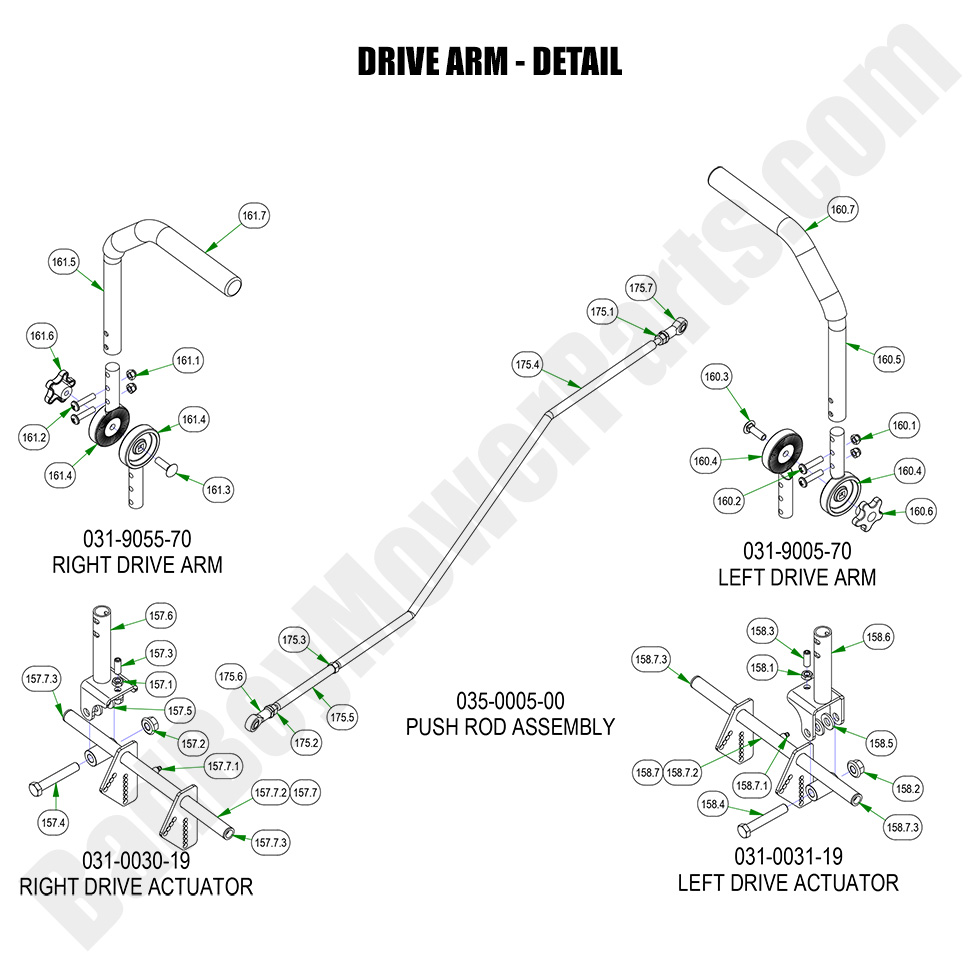

2023 Renegade - Diesel - Drive Arm - Detail

2023 Renegade - Diesel - Drive Arm - Detail

The 2023 Renegade - Diesel Drive Arm - Detail plays a vital role in transferring power from the engine to the wheels, ensuring your mower runs smoothly and efficiently. A well-maintained drive arm ensures consistent traction and performance, allowing you to tackle tough mowing jobs with ease. At BadBoyMowerParts.com, we offer a comprehensive range of Bad Boy Mower Parts, including the 2023 Renegade - Diesel Drive Arm. Our easy-to-use Bad Boy Mower Part diagrams make it simple to identify and replace worn-out drive arms. We pride ourselves on offering high-quality Bad Boy Lawn Mower Parts that are designed for durability and performance. Plus, take advantage of Free Shipping On Orders Over $100 to get your parts quickly and at no extra cost, keeping your mower running like new.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Drive Arm - Detail
  Position Number SKU Product Title Price
157.0 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
157.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
157.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
157.3 018-0063-00 018-0063-00 - 3/8-16 X 1 Socket Set Screw Cup Point
$2.99
157.4 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
157.5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
157.6 031-0014-00 031-0014-00 - Drive Arm Pivot 2019-2022 Rebel, Renegade & Rogue
$24.92
157.7.1 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
157.7.3 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
157.7 031-0030-00 031-0030-00 - Bad Boy Max Right Drive Arm Actuator (See Models Used On For Detail)
$46.78
158.0 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
158.7 031-0031-00 031-0031-00 - Left Drive Arm Actuator for Rebel, Renegade & Rogue
$46.78
160.0 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
160.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
160.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
160.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
160.4 031-9005-00 031-9005-00 - Upper/Lower Steering Arm Casting 2019-2023 Rebel, Renegade & Rogue
$28.39
160.5 031-9006-00 031-9006-00 - Steering Arm Tube
$42.79
160.6 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
160.7 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
161.0 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
175.0 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
175.1 013-6049-00 013-6049-00 - 5/16 RH Nut For Push Rods
$4.39
175.2 013-6050-00 013-6050-00 - 5/16 LH Nut For Push Rods
$4.39
175.3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
175.4 035-0005-01 035-0005-01 - 2019-2022 Renegade Horizontal Push Rod (obsolete)
use part #035-0005-00
$46.84
175.6 048-3002-00 048-3002-00 - Spherical Rod End - LH Thread (See Models Used On For Details)
$32.09
175.7 048-3003-00 048-3003-00 - Spherical Rod End - RH Thread (See Models Used On For Details)
$21.28
