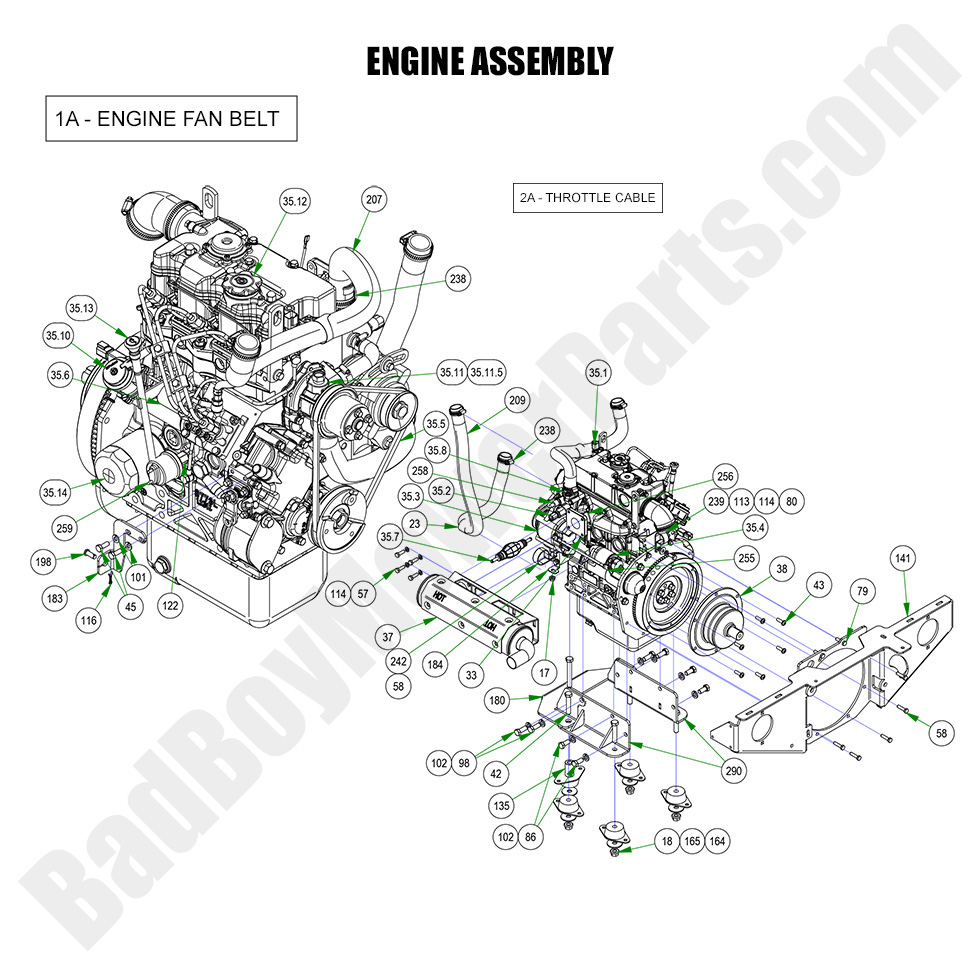

2023 Renegade - Diesel - Engine Assembly

2023 Renegade - Diesel - Engine Assembly

The 2023 Renegade - Diesel Engine Assembly is the heart of your mower, powering the entire machine and ensuring you get the performance needed for tough mowing tasks. If any parts of the engine assembly start to malfunction, your mower’s power and efficiency will be compromised. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for the 2023 Renegade - Diesel Engine Assembly. Our Bad Boy Mower Part diagrams allow you to easily locate the right components for maintenance or replacement. We provide premium Bad Boy Lawn Mower Parts that meet the highest standards of quality and durability. Plus, take advantage of Free Shipping On Orders Over $100, making it more convenient and affordable to keep your mower’s engine running at its peak.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Engine Assembly
  Position Number SKU Product Title Price

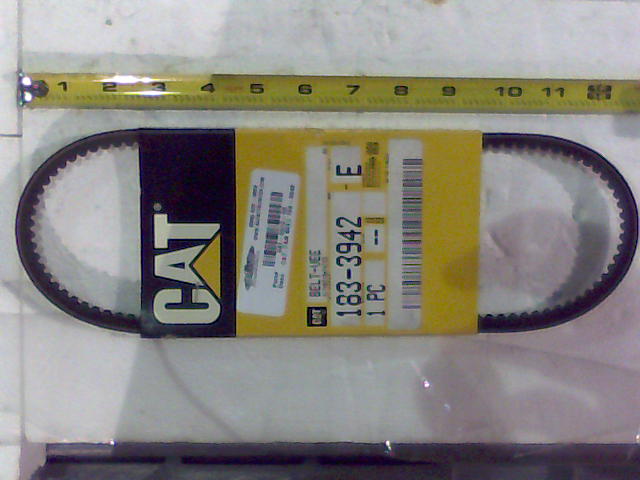

1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17

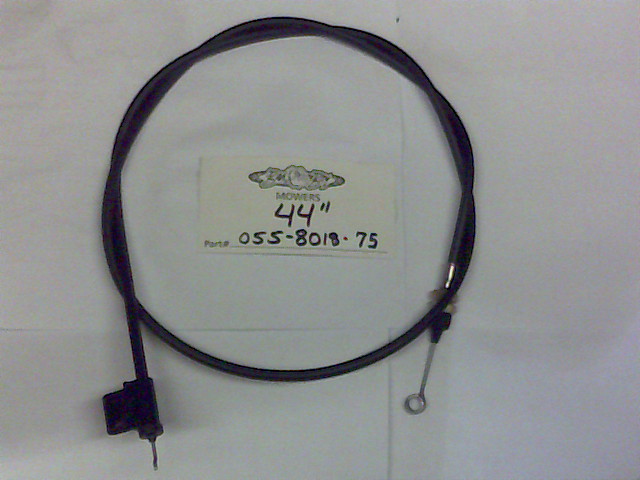

2A 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

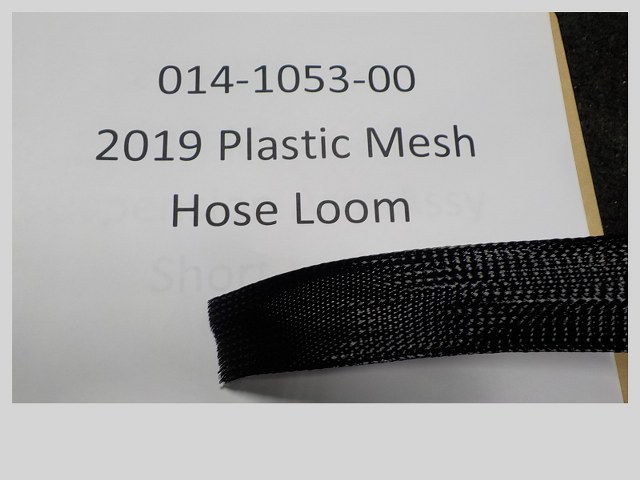

23 014-1053-00 014-1053-00 - Plastic Mesh Hose Loom
$9.89

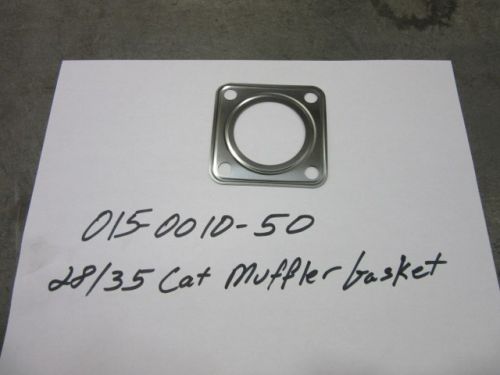

33 015-0010-50 015-0010-50 - 35/28 CAT Muffler Gasket
$17.02

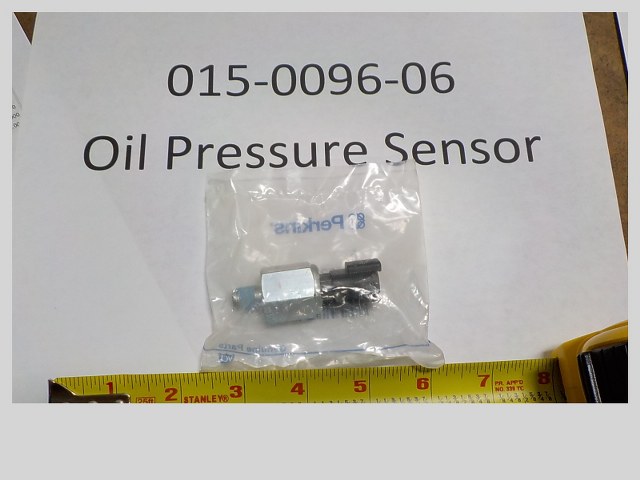

35.1 015-0096-06 015-0096-06 - Oil Pressure Sensor for the Perkins 1100cc Diesel
$125.99

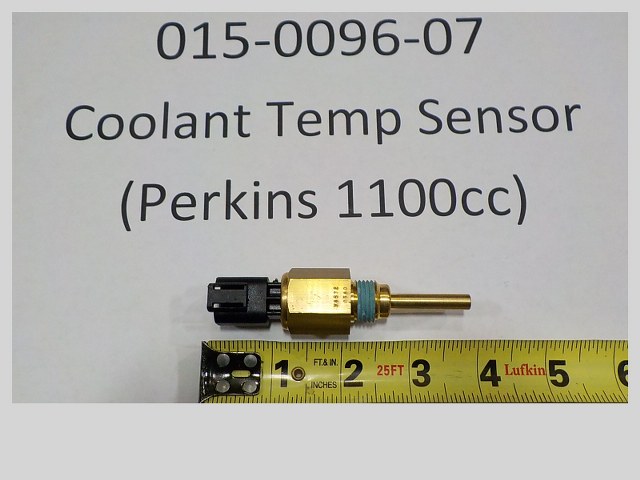

35.2 015-0096-07 015-0096-07 - Coolant Temperature Sensor for the Perkins 1100cc Diesel
$212.99

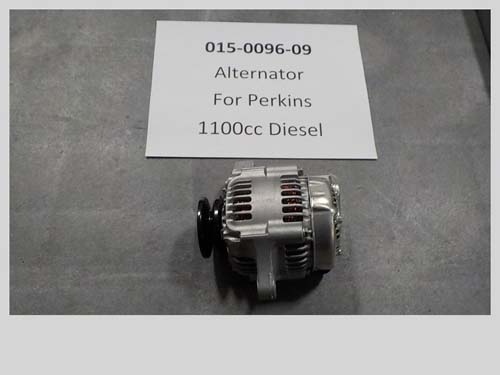

35.3 015-0096-09 015-0096-09 - Alternator for the Perkins 1100cc Diesel
$829.99
35.4 015-0097-01 015-0097-01 - Starter for 015-0097-00
$1099.99

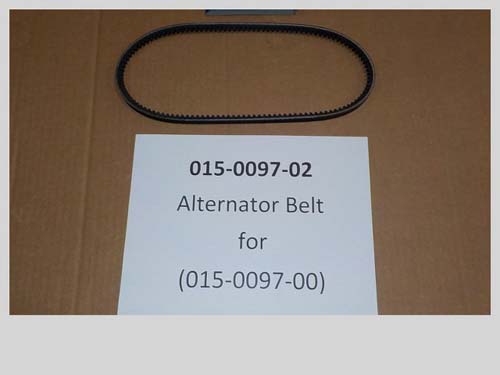

35.5 015-0097-02 015-0097-02 - Alternator Belt for 015-0097-00
$32.09
35.6 015-0097-03 015-0097-03 - Fuel Shutoff Solenoid for 015-0097-00
$235.99
35.7 015-0097-04 015-0097-04 - Fuel Priming Bulb Pump for 015-0097-00
$103.78

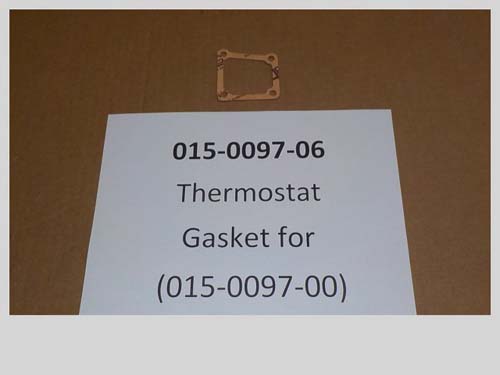

35.8 015-0097-06 015-0097-06 - Thermostat Gasket for 015-0097-00
$21.39

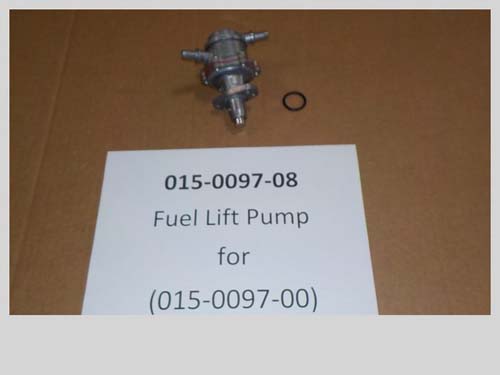

35.10 015-0097-08 015-0097-08 - Fuel Lift Pump for 015-0097-00
$229.99

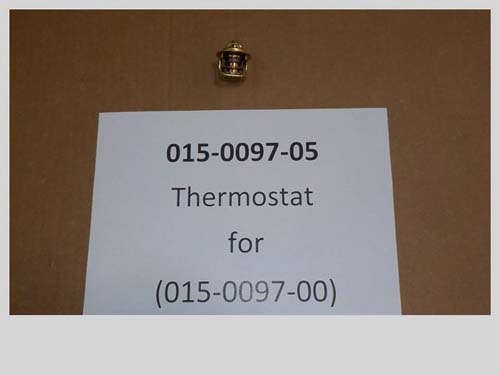

35.11.5 015-0097-05 015-0097-05 - Thermostat for 015-0097-00
$84.52
35.11 015-0097-09 015-0097-09 - Water Pump w/Gasket for 015-0097-00
$249.99

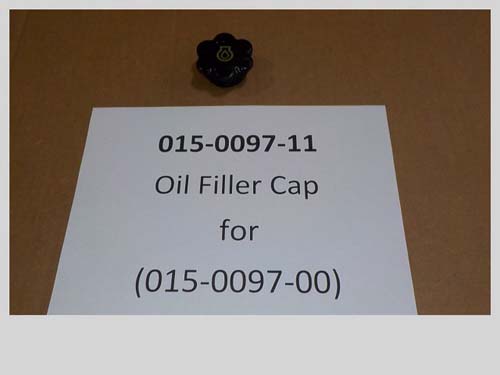

35.12 015-0097-11 015-0097-11 - Oil Filler Cap for 015-0097-00
$21.39

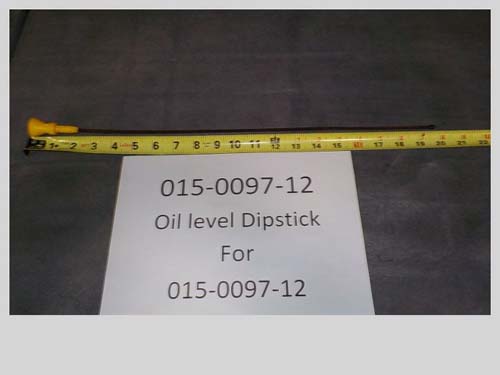

35.13 015-0097-12 015-0097-12 - Oil Level Dipstick for 015-0097-00
$53.49

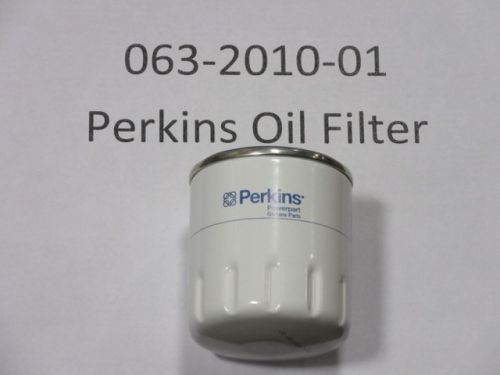

35.14 063-2010-01 063-2010-01 - Perkins Oil Filter
$29.37

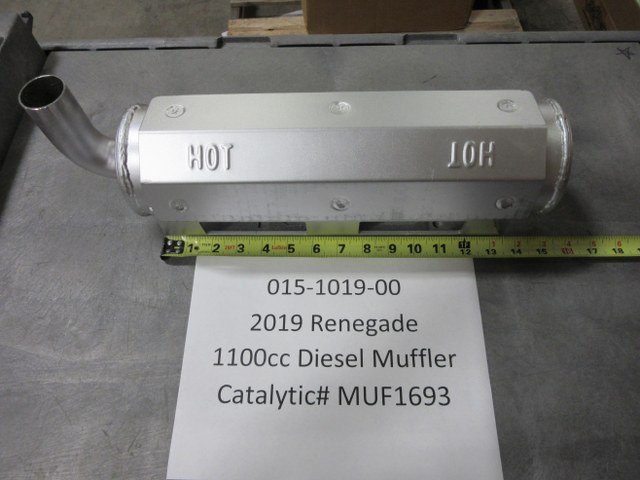

37 015-1019-00 015-1019-00 - 2019-2024 Renegade Diesel Muffler Catalytic# MUF1693
$175.99

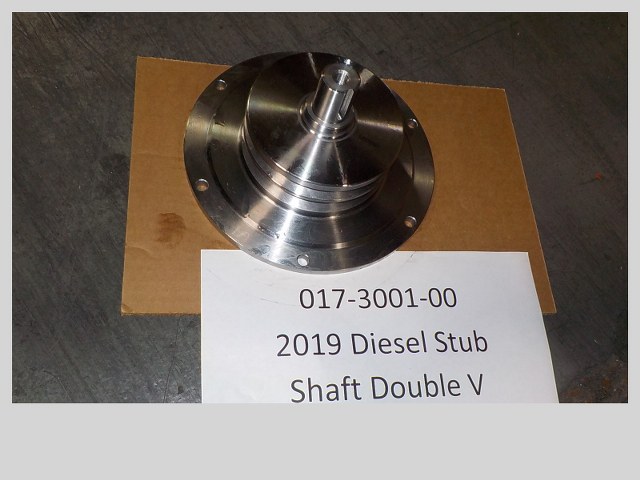

38 017-3001-00 017-3001-00 - 2019-2024 Renegade Diesel Stub Shaft Double V
$150.99

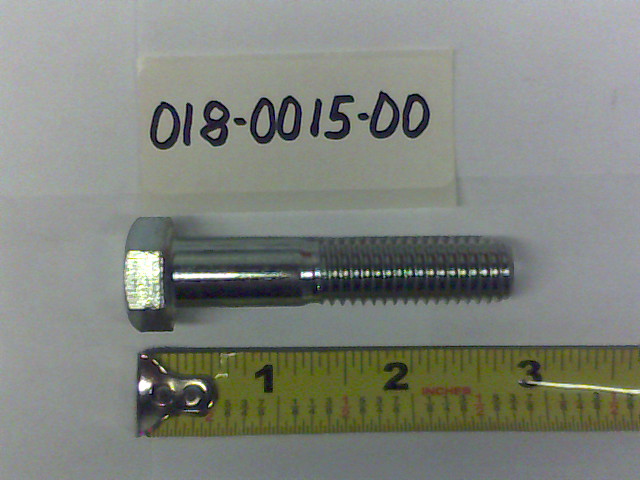

42 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99

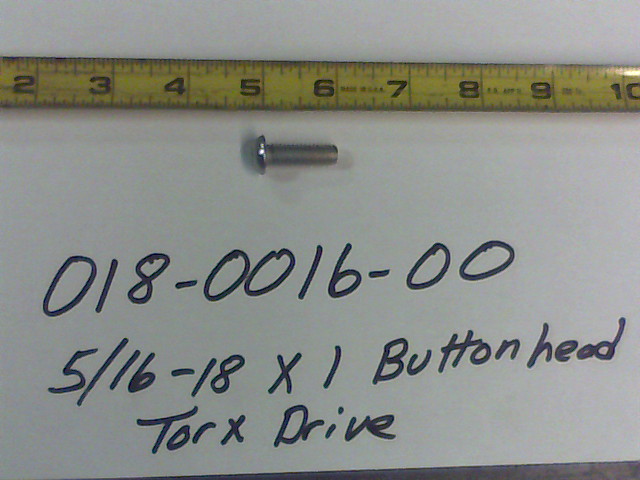

43 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99

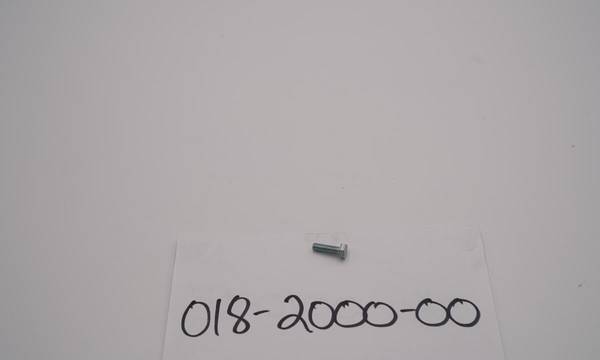

45 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99

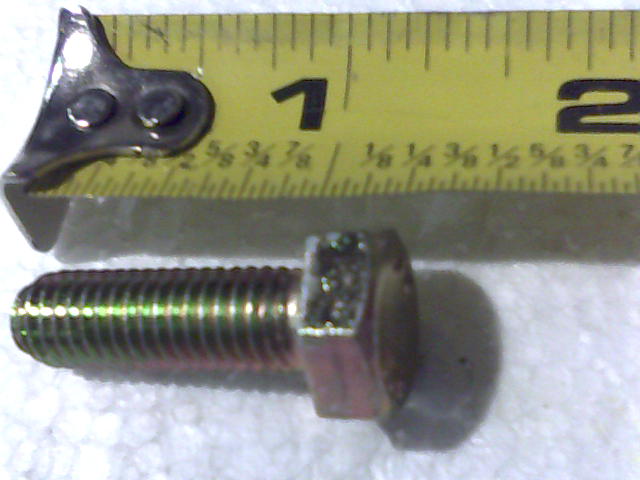

57 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99

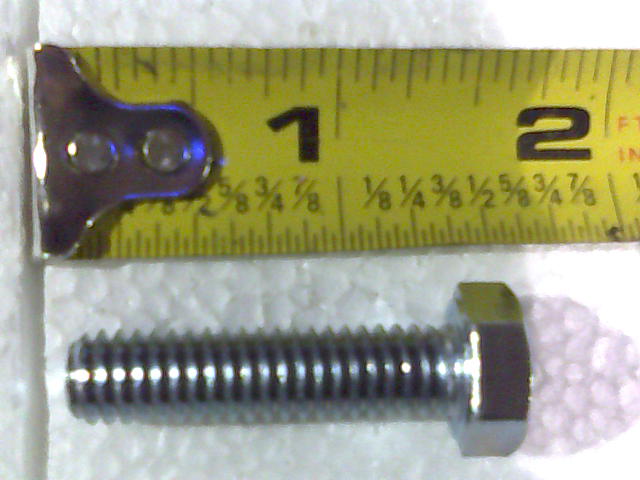

58 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99

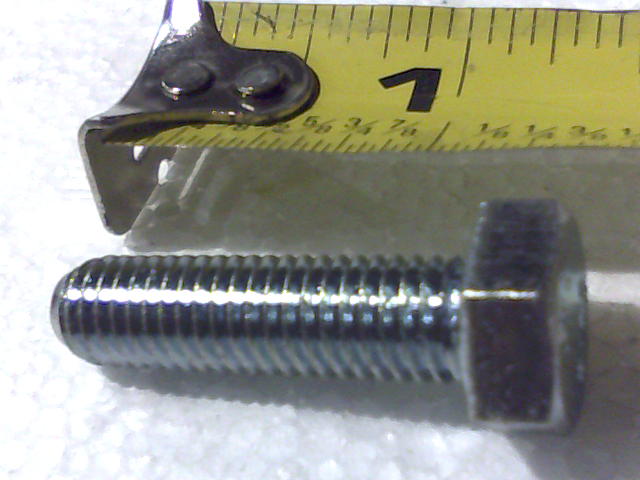

79 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99

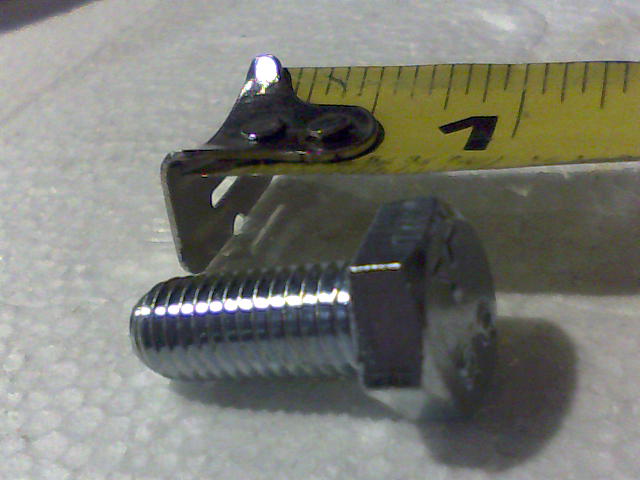

80 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99

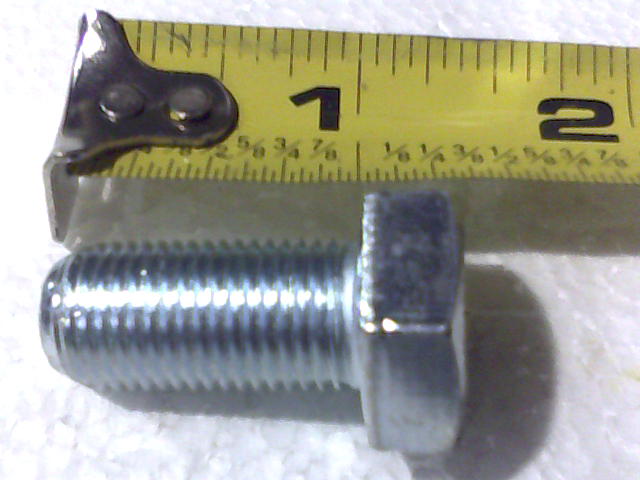

86 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99

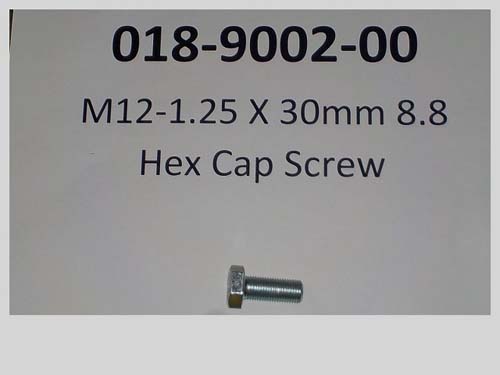

98 018-9002-00 018-9002-00 - M12 1.25 x 30mm 8.8 hex cap screw No Longer Available
Obsolete.

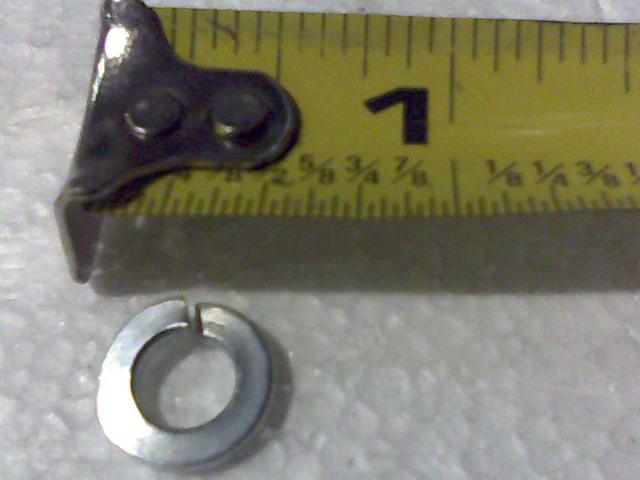

101 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99

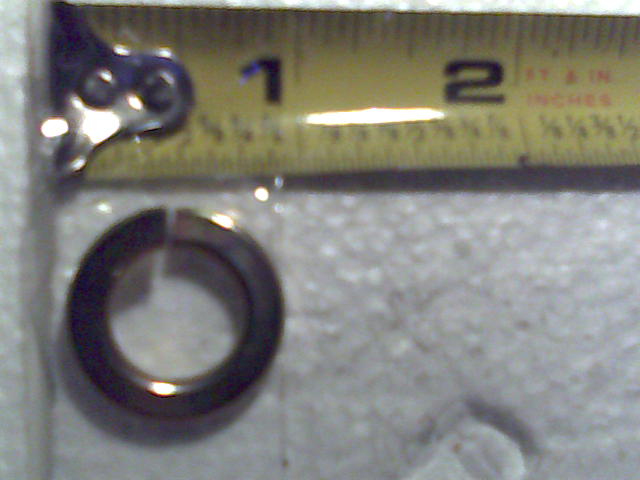

102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99

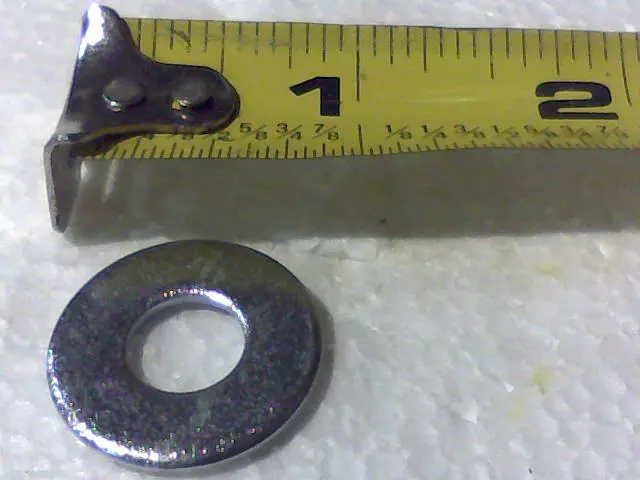

113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99

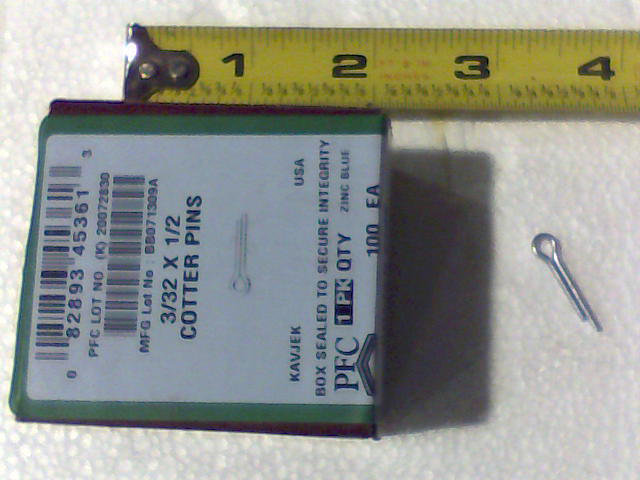

116 020-2000-00 020-2000-00 - 3/32 X 1/2 Cotter Pins Zinc
$2.99

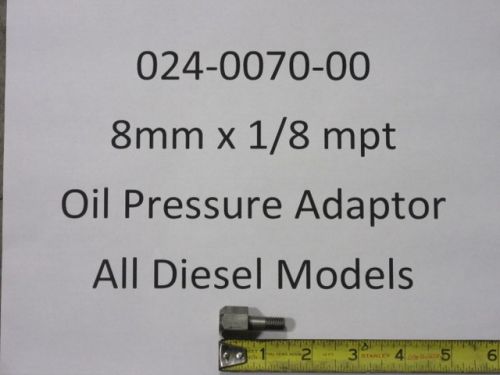

122 024-0070-00 024-0070-00 - 8mm x 1/8 mpt Adaptor - All Di esel Models
$50.28

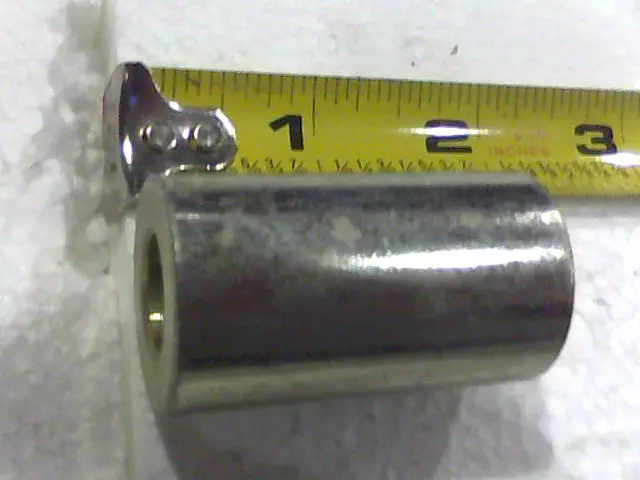

135 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36

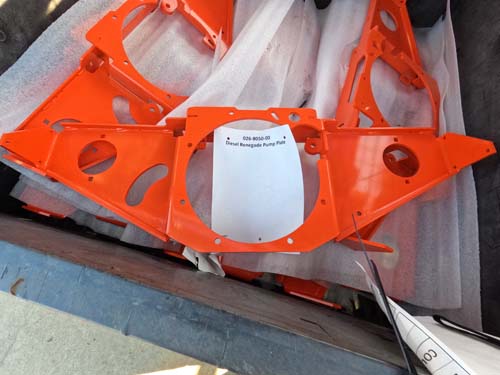

141 026-8050-00 026-8050-00 - 2020 Diesel Pump Plate Weldment
$90.94

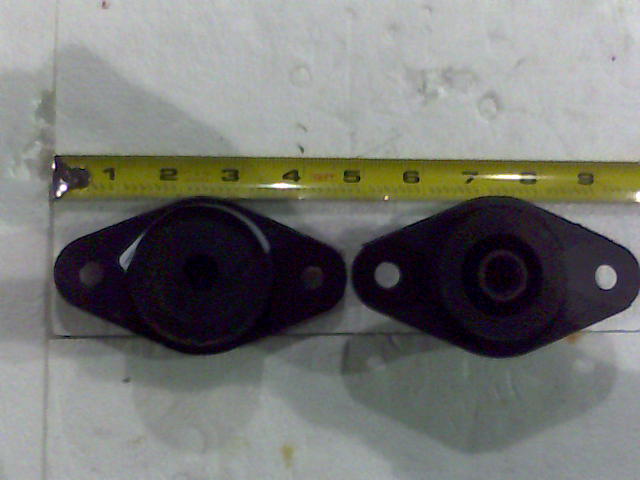

164 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53

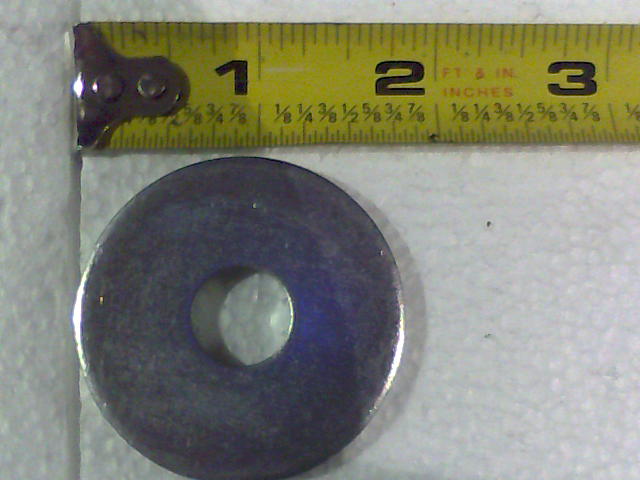

165 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02

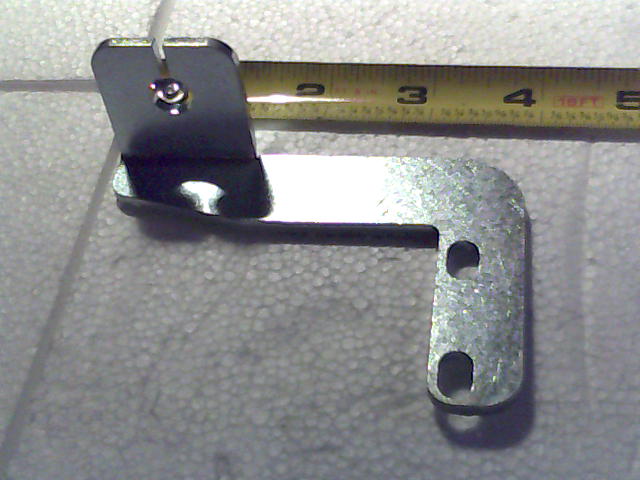

183 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49

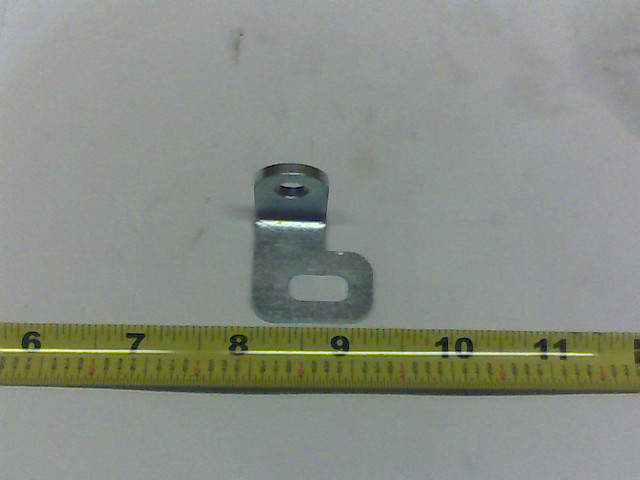

184 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99

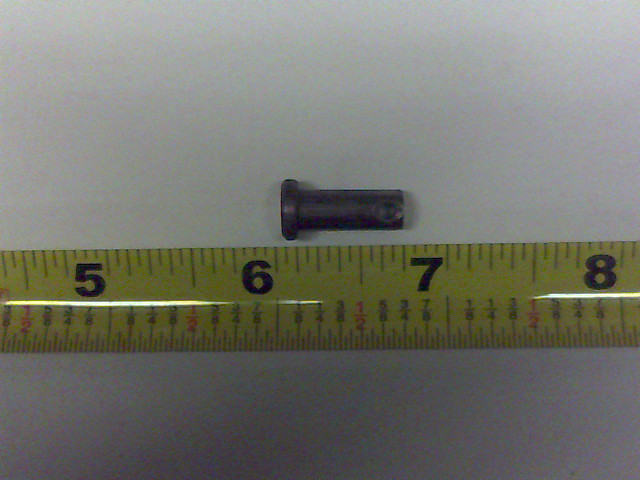

198 044-2006-00 044-2006-00 - 1/4 X 5/8 Clevis Pin
$2.99

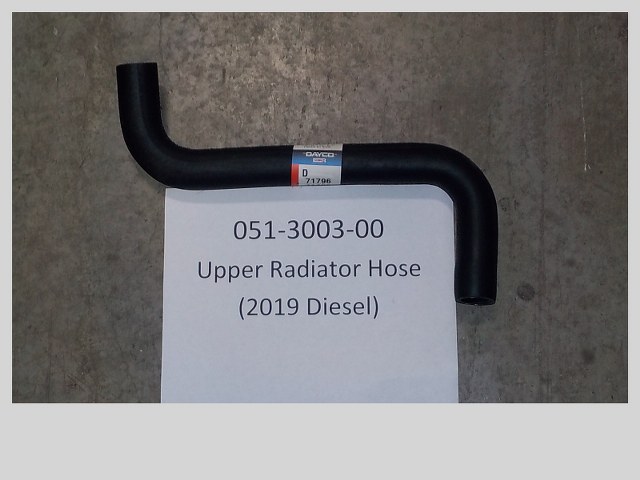

207 051-3003-00 051-3003-00 - Diesel Radiator Hose-Upper
$49.63

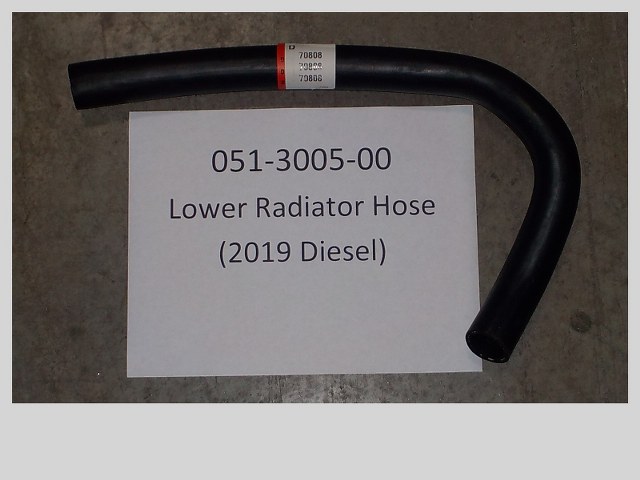

209 051-3005-00 051-3005-00 - Diesel Radiator Hose-Lower
$44.93

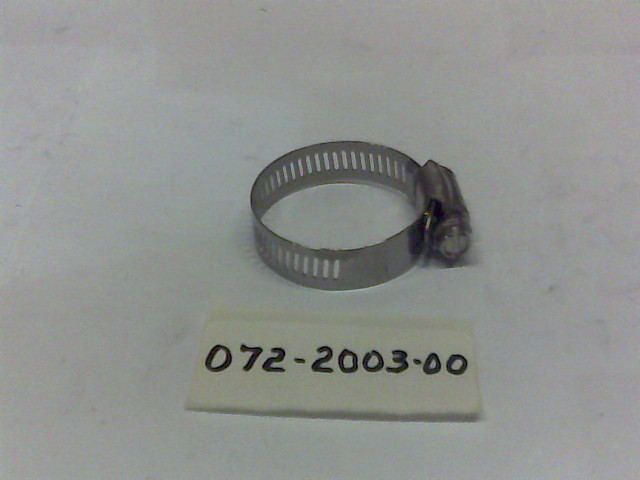

238 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82

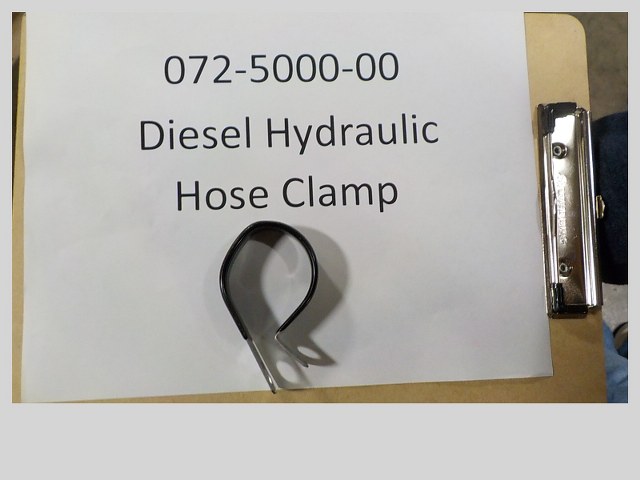

239 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28

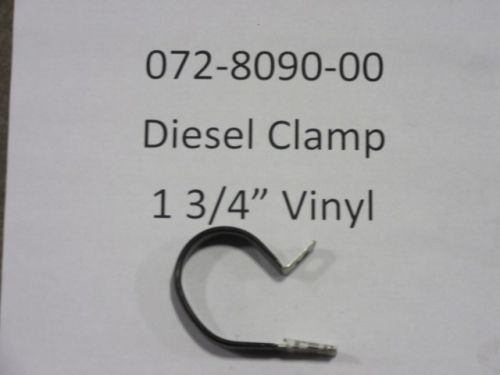

242 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63

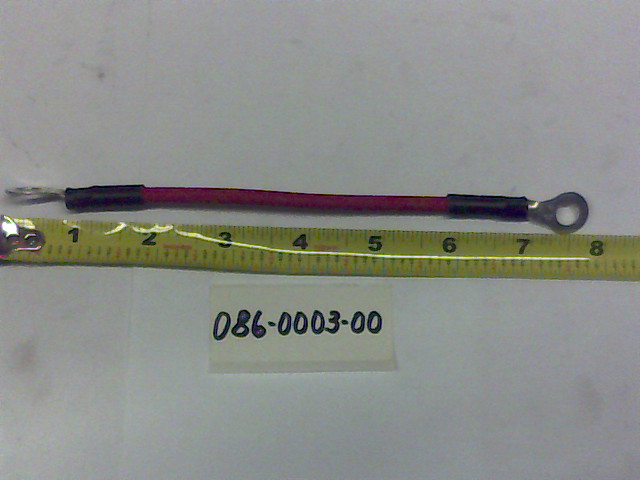

255 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79

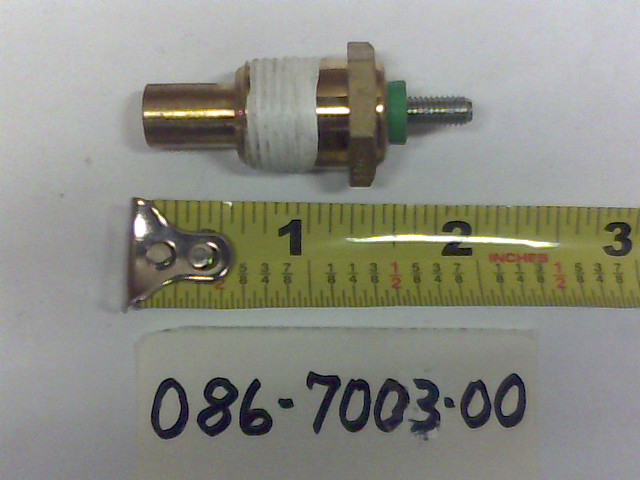

258 086-7003-00 086-7003-00 - Temperature Sender- 2012 Gauge
$31.17
259 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
290 201-8030-00 201-8030-00 - 2019 Diesel Motor Mount Weldment
$11.76
