2023 Renegade - Diesel - Floorboard, ROPS & Radiator

2023 Renegade - Diesel - Floorboard, ROPS & Radiator

The 2023 Renegade - Diesel Floorboard, ROPS & Radiator combination is crucial for the durability and safety of your mower. The floorboard provides stability for the operator, while the Roll-Over Protective Structure (ROPS) enhances safety by protecting against rollovers. The radiator, on the other hand, ensures that the engine stays cool during operation. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for the 2023 Renegade - Diesel Floorboard, ROPS & Radiator. Our Bad Boy Mower Part diagrams will guide you to the exact parts you need for repairs or replacements. We provide premium Bad Boy Lawn Mower Parts to ensure top-notch performance and safety. Plus, enjoy Free Shipping On Orders Over $100 to make maintaining your mower easy and affordable.

Bad Boy Mower Parts Lookup

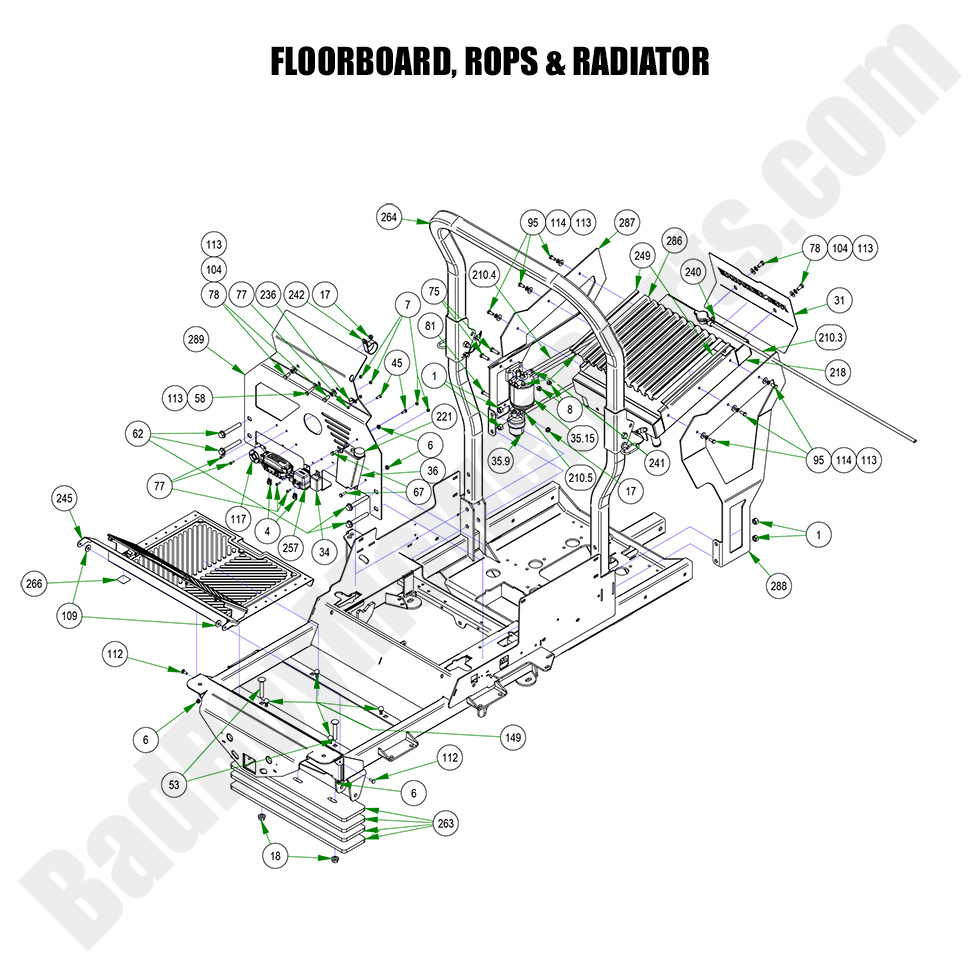

2023 Renegade - Diesel - Floorboard, ROPS & Radiator
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
7 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
8 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
34 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$699.99
35.9 015-0097-07 015-0097-07 - Fuel Pre-Filter for 015-0097-00
$32.09
35.15 063-2011-01 063-2011-01 - Perkins Fuel Filter
$26.96
36 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
45 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
53 018-0067-00 018-0067-00 - 1/2-13 x 3 Carriage Bolt
$3.29
58 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
62 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
67 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
75 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
77 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
78 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
81 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
95 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
104 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
112 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
117 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
149 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
210.3 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
210.4 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
210.5 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
218 061-5001-98 061-5001-98 - 2019 Diesel Radiator Kit No Longer Available
Obsolete.
221 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
236 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
240 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
242 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
249 084-4015-00 084-4015-00 - Rubber Trim
$10.99
257 086-0247-20 086-0247-20 - Wiring Harness (See Models Used On For Detail)
$509.41
264 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
266 091-0020-22 091-0020-22 - Anti-Wobble Patent Decal
$2.99
286 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
287 201-8026-00 201-8026-00 - 2019 Diesel Radiator Mount-Right
$42.79
288 201-8027-00 201-8027-00 - 2019 Diesel Radiator Mount-Left
$43.86
