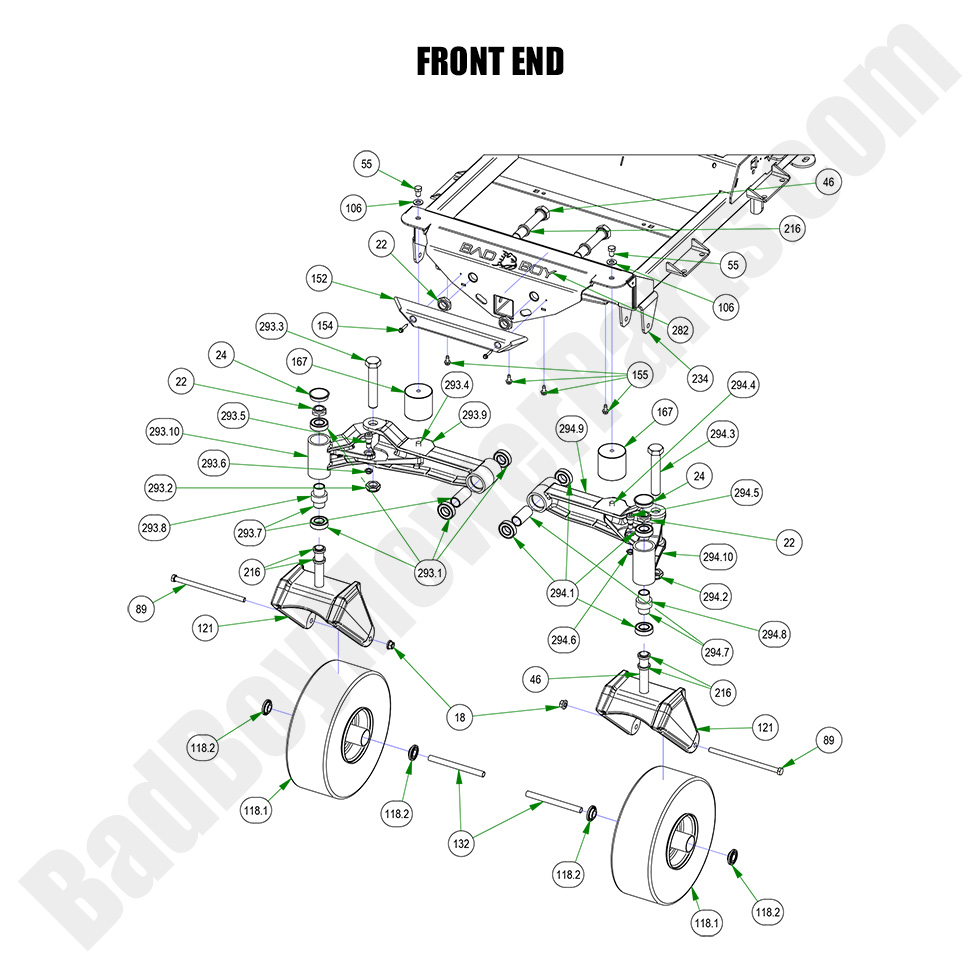

2023 Renegade - Diesel - Front End

2023 Renegade - Diesel - Front End

The 2023 Renegade - Diesel Front End is crucial for steering and controlling the mower, ensuring smooth navigation and optimal handling. If the front end components begin to wear or break, your ability to maneuver the mower will be affected. At BadBoyMowerParts.com, we offer an array of Bad Boy Mower Parts for the 2023 Renegade - Diesel Front End, from steering linkages to wheel assemblies. Our Bad Boy Mower Part diagrams help you find the precise components you need for maintenance or replacement. We specialize in high-quality Bad Boy Lawn Mower Parts designed to provide reliable performance. Plus, with Free Shipping On Orders Over $100, you can get your front end parts quickly and without the added cost.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Front End
  Position Number SKU Product Title Price
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
24 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
46 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
55 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
89 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
106 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
118.1 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
118.2 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
121 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
132 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
152 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
154 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
155 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
167 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
216 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
282 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
293.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
293.4 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
293.5 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
293.6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
293.7 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
293.8 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
293.9 250-0032-01 250-0032-01 - 61" & 72" Rogue Front Suspension Arm Inner RH
$269.99
293.10 250-0032-02 250-0032-02 - 61" & 72" Rogue Front Suspension Arm Outer RH
$269.99
294.9 250-0033-01 250-0033-01 - 61" & 72" Rogue Front Suspension Arm Inner LH
$229.99
294.10 250-0033-02 250-0033-02 - 61" & 72" Rogue Front Suspension Arm Outer LH
$209.99
