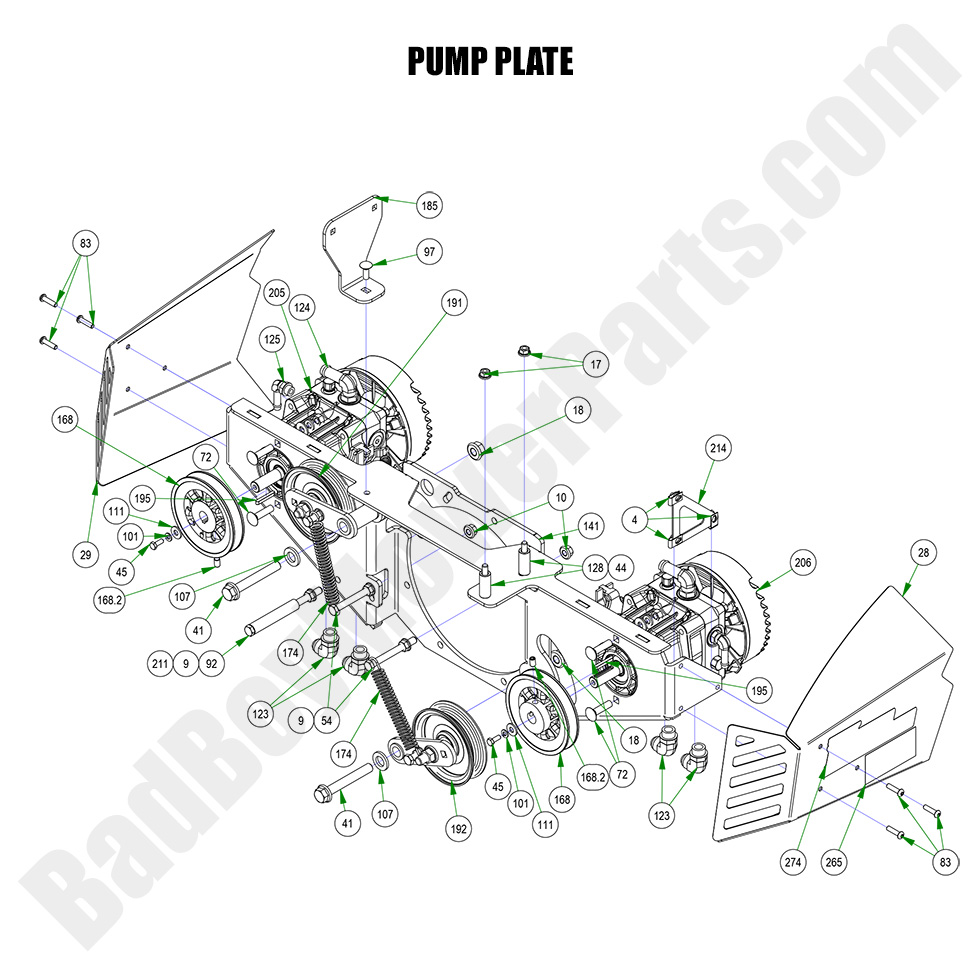

2023 Renegade - Diesel - Pump Plate

2023 Renegade - Diesel - Pump Plate

The 2023 Renegade - Diesel Pump Plate is a critical component of your mower’s hydraulic system. It supports the hydraulic pump and ensures that fluid flows properly to maintain optimal power and performance. If the pump plate becomes damaged or worn out, it could cause issues with your mower's ability to lift and maneuver. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts for the 2023 Renegade - Diesel Pump Plate. Our detailed Bad Boy Mower Part diagrams make it simple to find the exact part you need for repairs. We carry high-quality Bad Boy Lawn Mower Parts that are durable and built to last. Plus, enjoy the benefit of Free Shipping On Orders Over $100, so you can keep your hydraulic system functioning at its best without paying extra for shipping.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Pump Plate
  Position Number SKU Product Title Price
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

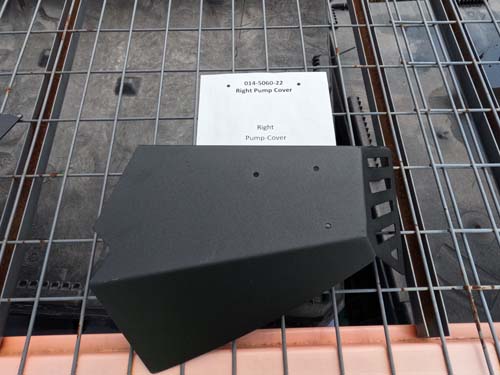

28 014-5060-22 014-5060-22 Pump Cover-RH-Black
$21.39

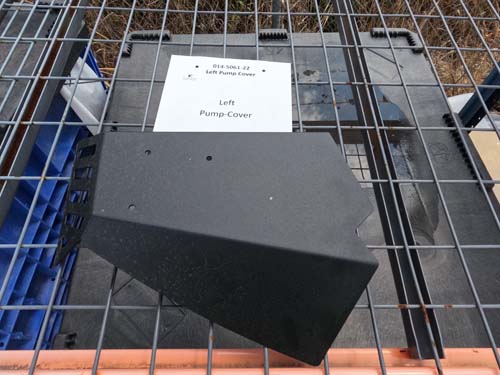

29 014-5061-22 014-5061-22 Pump Cover-LH-Black (See Models Used On For Details)
$32.09
41 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
44 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
45 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
54 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
72 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
83 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
92 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
97 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
101 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
107 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
111 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
123 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
124 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
125 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
128 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
141 026-8050-00 026-8050-00 - 2020 Diesel Pump Plate Weldment
$90.94

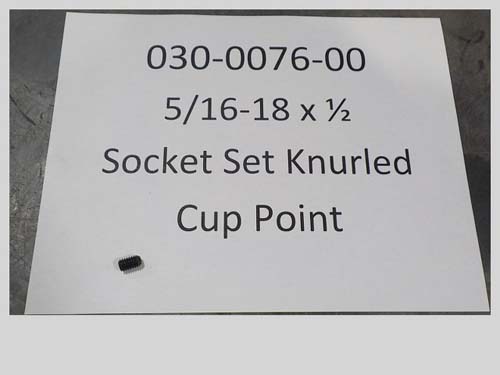

168.2 030-0076-00 030-0076-00 - 5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT
$2.99
168 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
174 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
185 039-1025-00 039-1025-00 - 2019 Diesel Muffler Bracket
$13.90
191 039-6950-94 039-6950-94 - 2020 and newer Diesel Pump Tensioner Assembly LH
$85.17
192 039-6950-95 039-6950-95 - 2020 and newer Diesel Pump Tensioner Assembly RH
$85.17

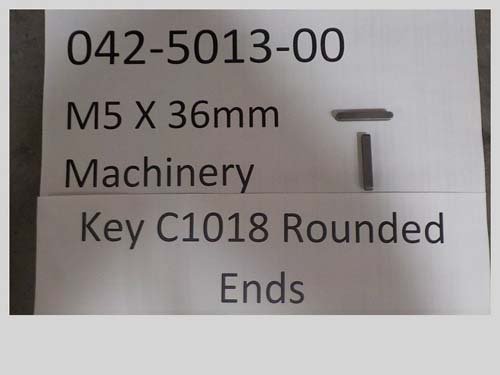

195 042-5013-00 042-5013-00 - M5 X 36MM Square Machinery Key C1018 ROUNDED ENDS
$2.99
205 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
206 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
211 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
214 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
265 091-0017-00 091-0017-00 - PERKINS Decal
$13.90
274 091-4012-00 091-4012-00 - 2019 Renegade 1100cc Pump Cluster
$12.48
