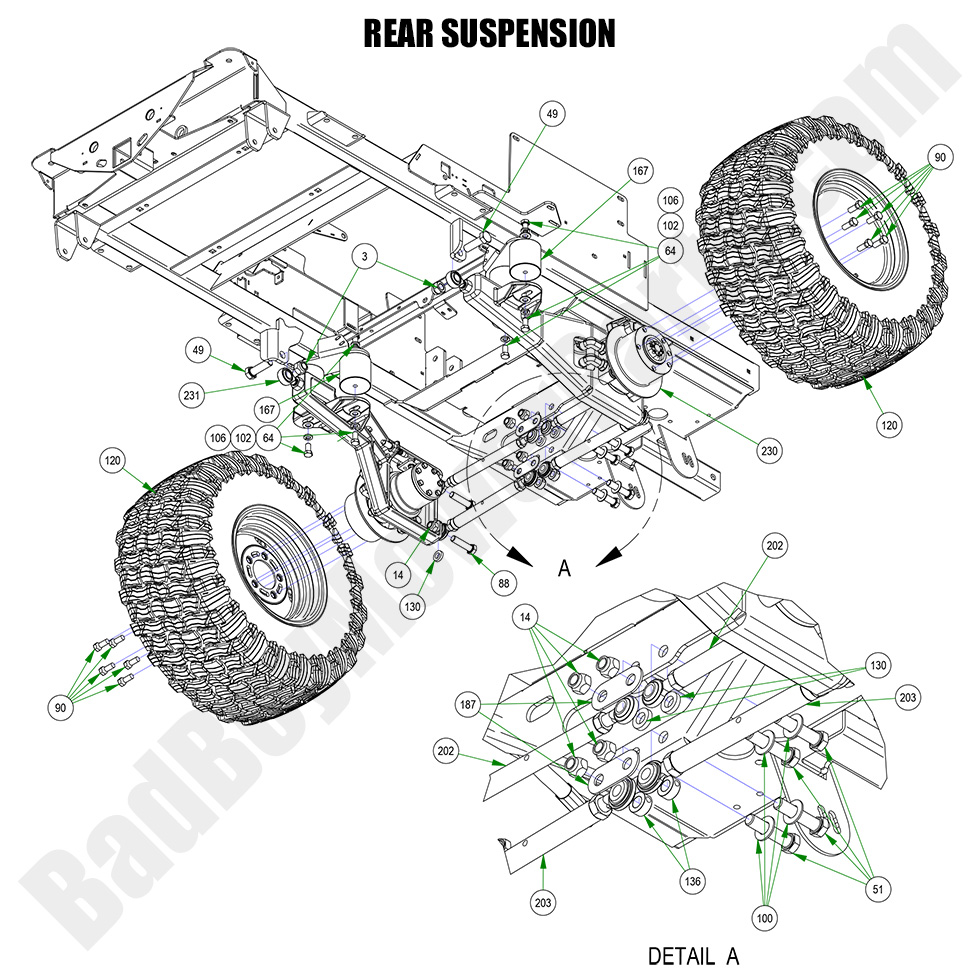

2023 Renegade - Diesel - Rear Suspension

2023 Renegade - Diesel - Rear Suspension

The 2023 Renegade - Diesel Rear Suspension is an essential part of your mower's comfort and performance. It helps absorb the bumps and vibrations from uneven terrain, allowing for a smoother ride and more precise control. A well-maintained rear suspension ensures that your mower stays stable and offers better handling during long hours of use. BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts to replace worn or damaged rear suspension components on your 2023 Renegade - Diesel. With our clear Bad Boy Mower Part diagrams, finding the exact parts you need is easy. We offer durable Bad Boy Lawn Mower Parts that maintain the quality and performance of your mower. Additionally, you can take advantage of Free Shipping On Orders Over $100, making it simple and affordable to keep your rear suspension in top condition.

Bad Boy Mower Parts Lookup

2023 Renegade - Diesel - Rear Suspension
  Position Number SKU Product Title Price
3 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
49 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
51 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
64 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
88 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
90 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
100 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
106 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
120 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
130 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
136 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
167 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
187 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
202 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
203 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
