2023 Renegade - Diesel - Seat & Brake

2023 Renegade - Diesel - Seat & Brake

The 2023 Renegade - Diesel Seat & Brake assembly is crucial for both comfort and safety. The seat provides a stable and comfortable place for the operator, while the brake system ensures that your mower can stop safely when needed. Both components work together to ensure a smooth and secure mowing experience. At BadBoyMowerParts.com, we provide an extensive selection of Bad Boy Mower Parts for the 2023 Renegade - Diesel Seat & Brake. Our Bad Boy Mower Part diagrams help you find the right parts quickly and easily. We offer high-quality Bad Boy Lawn Mower Parts that are built for durability and comfort. Additionally, enjoy Free Shipping On Orders Over $100, making it easy to get the parts you need without extra shipping costs.

Bad Boy Mower Parts Lookup

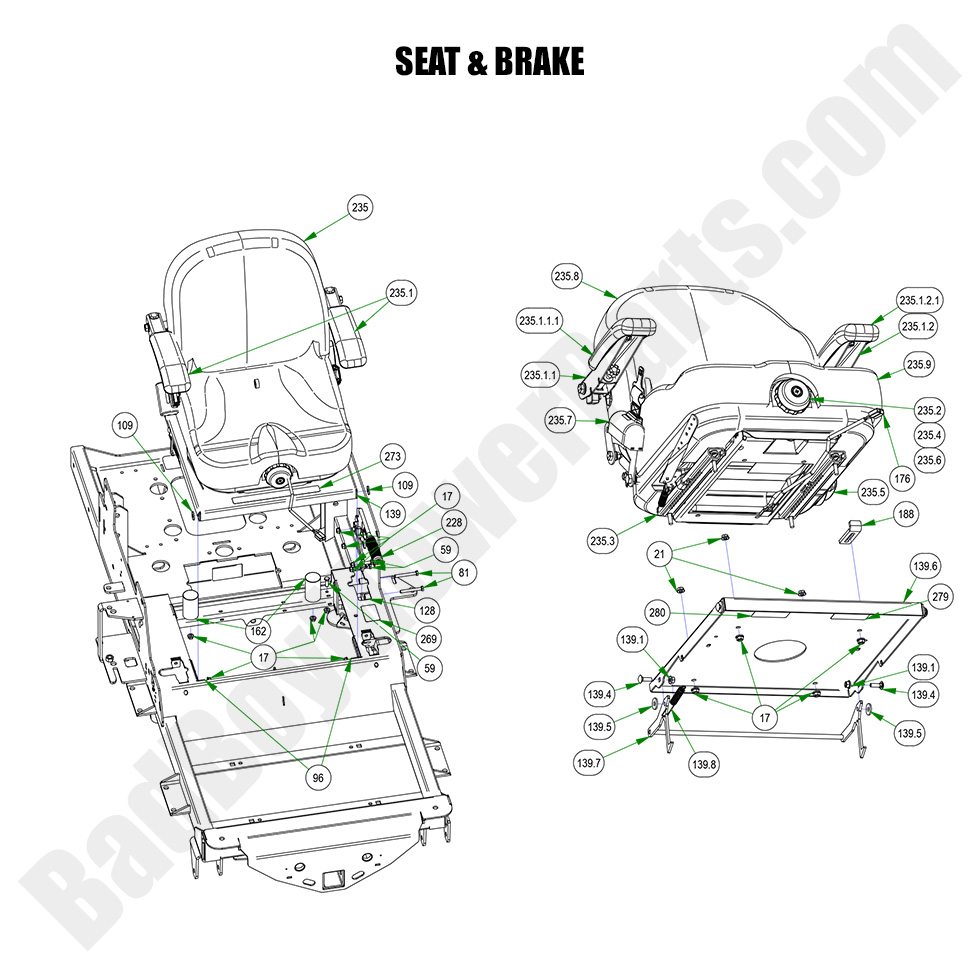

2023 Renegade - Diesel - Seat & Brake
  Position Number SKU Product Title Price
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
59 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
81 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
96 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
128 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
139.1 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
139.7 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
139.8 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48

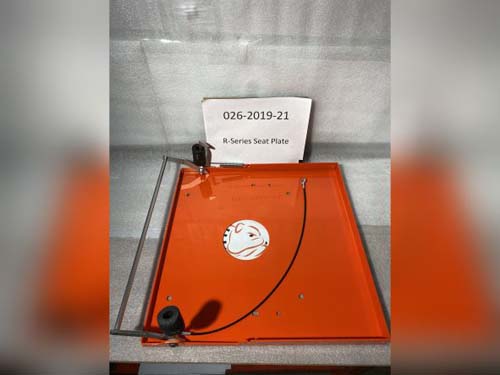

139 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
162 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41

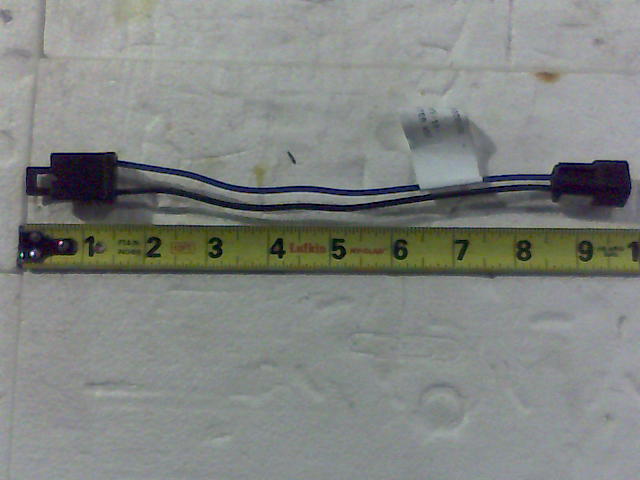

176 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55

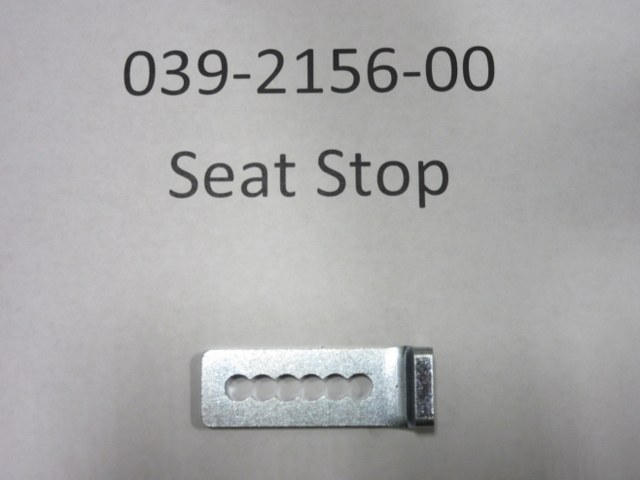

188 039-2156-00 039-2156-00 - Seat stop
$14.19
228 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
235.1.1.1 071-6065-03 071-6065-03 - Arm Pad for 071-6065-00
$33.16
235.1.1 071-6065-11 071-6065-11 RH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
235.1.2 071-6065-12 071-6065-12 - LH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
235.1 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
235.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
235.3 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
235.4 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
235.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
235.6 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
235.7 071-6063-00 071-6063-00 - Seatbelt Kit for 071-6065-00
$119.99
235.8 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
235.9 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
235 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
269 091-1101-18 091-1101-18 - Brake Decal (See Models Used On for Details)
$6.04
273 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
279 091-4038-00 091-4038-00 - Control Adj. Control Rod Decal
$6.04
280 091-4039-00 091-4039-00 - Control Adj. Control Dampener Decal
$6.04
