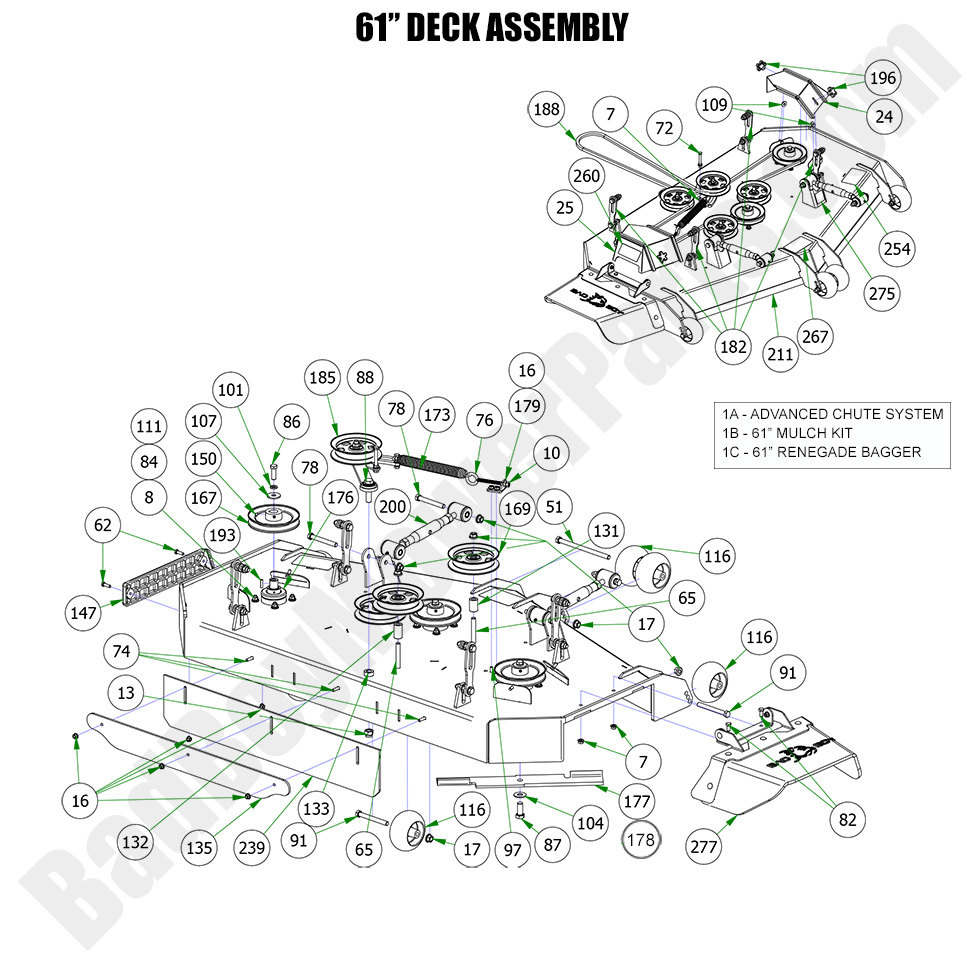

2023 Renegade - Gas - 61" Deck Assembly

2023 Renegade - Gas - 61" Deck Assembly

The 2023 Renegade - Gas 61" Deck Assembly is an important component that determines your mower’s cutting performance. If you need to replace or repair parts of your deck, Bad Boy Mower Part diagrams are available on our website to help guide you through the process. Bad Boy Mower Parts offers high-quality deck components, including blades, spindles, and pulleys, to ensure your mower operates at its best. Browse through the extensive selection of Bad Boy Lawn Mower Parts to find the specific parts you need. With BadBoyMowerParts.com, you can shop for Bad Boy Parts Online with ease, making part replacement quick and efficient. And with Free Shipping On Orders Over $100, you can complete your deck repairs at a great value. Ensure your mower’s deck assembly is in top condition to achieve a clean, even cut every time you mow.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
13 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
25 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
51 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
62 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
65 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
72 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
74 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
76 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
78 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
82 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
84 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
86 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
87 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
88 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
91 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
97 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
101 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
104 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
109 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
111 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
116 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
131 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
132 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
133 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
135 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
147 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
150 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
167 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
169 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
173 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
176 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
177 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
178 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
179 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
182 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
185 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
188 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
193 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
196 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
200 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
211 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
239 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
254 091-0917-18 091-0917-18 - 2018-2023 61" Deck Decal
$6.41
260 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
267 091-4033-00 091-4033-00 - 2019-2022 Renegade Deck Belt Route Decal
$9.61
275 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
277 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
