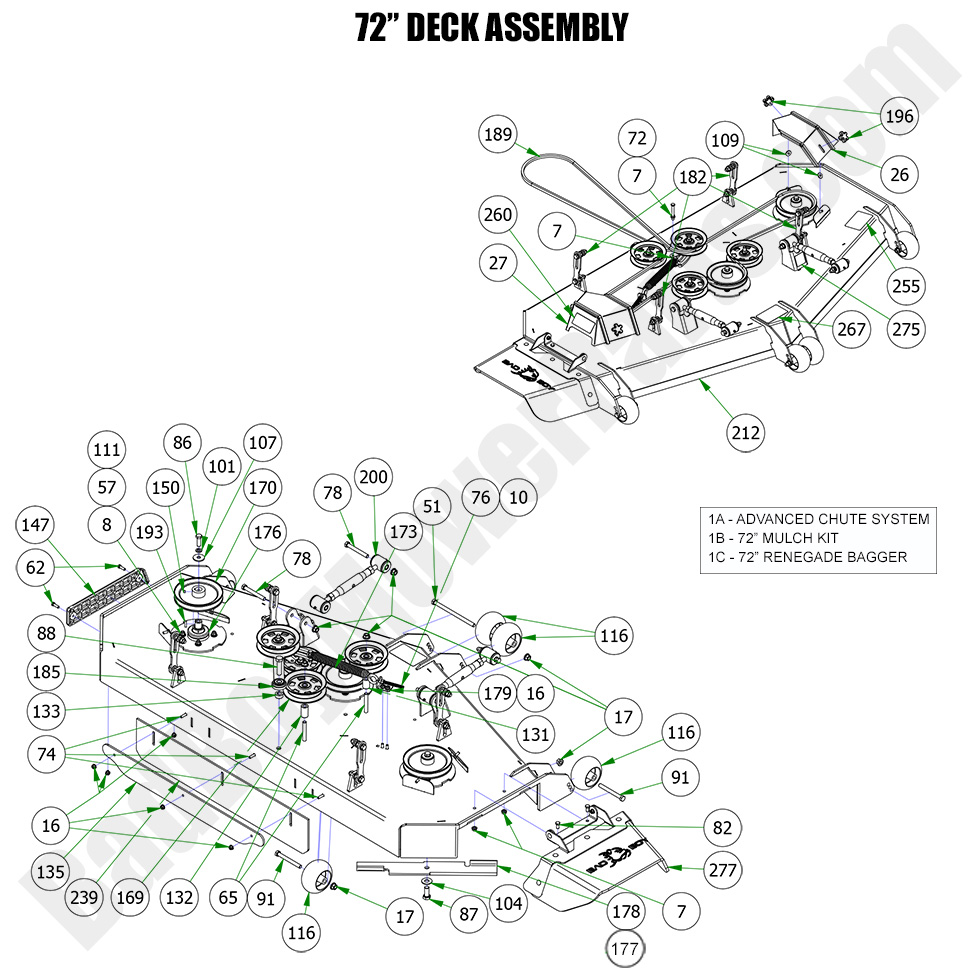

2023 Renegade - Gas - 72" Deck Assembly

2023 Renegade - Gas - 72" Deck Assembly

For larger lawn spaces, the 2023 Renegade - Gas 72" Deck Assembly offers enhanced cutting efficiency. Whether you're replacing a damaged component or upgrading your deck, Bad Boy Mower Part diagrams are a valuable tool for helping you identify and order the correct parts. From belt tensioners to blades, our Bad Boy Mower Parts inventory includes a range of products designed to fit your 72" deck assembly. With Bad Boy Lawn Mower Parts, you can trust that you're getting durable, high-performance components that ensure longevity. Shopping for Bad Boy Parts Online is made simple at BadBoyMowerParts.com, where you can easily navigate through the available parts. Plus, enjoy Free Shipping On Orders Over $100, making it easier and more cost-effective to keep your mower in prime working condition.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
27 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
51 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
57 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
62 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
65 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
72 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
74 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
76 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
78 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
82 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
86 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
87 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
88 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
91 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
101 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
104 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
109 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
111 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
116 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
131 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
132 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
133 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
135 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
147 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
150 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
169 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
170 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
173 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
176 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
177 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
178 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
179 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
182 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
185 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
189 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$131.30
193 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
196 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
200 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
212 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
239 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
255 091-0918-18 091-0918-18 - 2018-2022 72" Deck Decal
$6.41
260 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
267 091-4033-00 091-4033-00 - 2019-2022 Renegade Deck Belt Route Decal
$9.61
275 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
277 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
