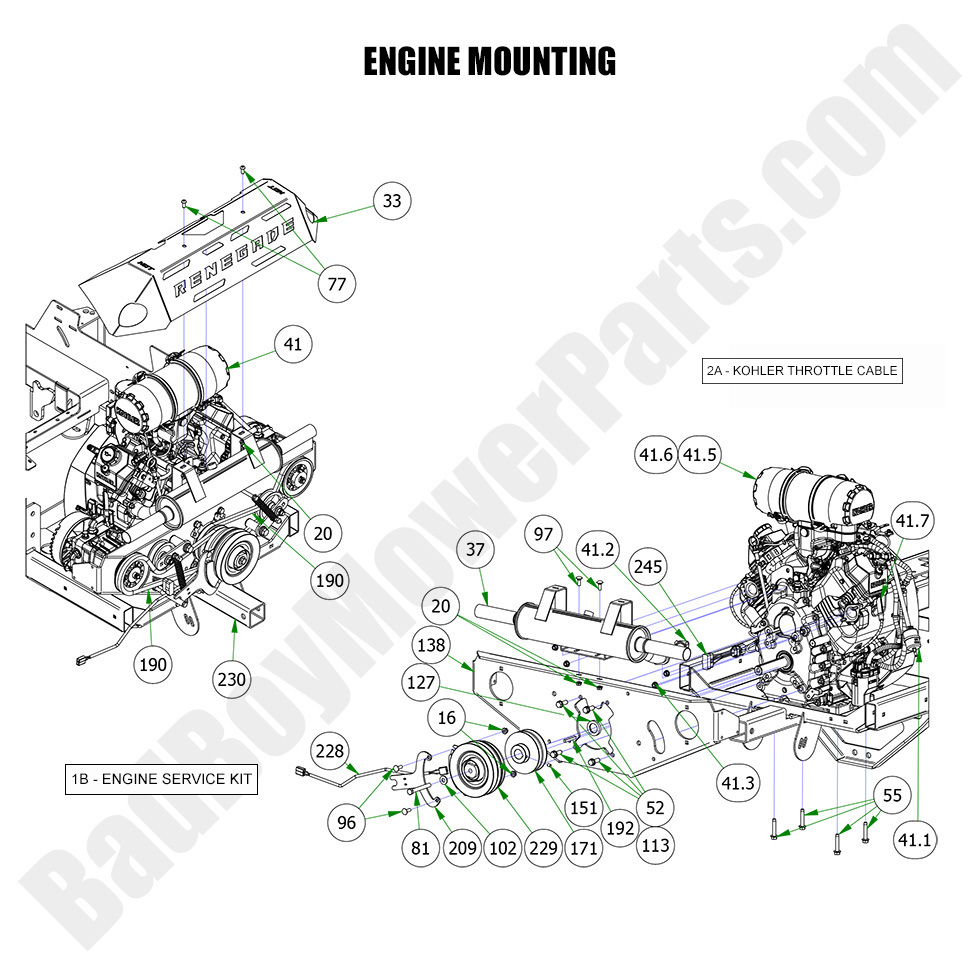

2023 Renegade - Gas - Engine - Kohler ECH980 EFI

2023 Renegade - Gas - Engine - Kohler ECH980 EFI

The 2023 Renegade - Gas Engine - Kohler ECH980 EFI is a powerful engine designed to provide optimal performance for your mower. To keep it running at its best, you’ll need access to quality replacement parts. At BadBoyMowerParts.com, we offer a detailed set of Bad Boy Mower Part diagrams that help you identify parts specific to the Kohler ECH980 EFI engine. Our selection of Bad Boy Mower Parts includes filters, spark plugs, and other essential engine components. Whether you need minor repairs or major engine overhauls, you can find all the necessary Bad Boy Lawn Mower Parts to keep your engine in top condition. By shopping Bad Boy Parts Online, you can easily purchase what you need, and with Free Shipping On Orders Over $100, you won’t have to worry about extra delivery costs.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - Engine - Kohler ECH980 EFI
  Position Number SKU Product Title Price
1A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
1B 063-2000-19 063-2000-19 - Kohler ECV980 & ECH980 Engine Service Kit
$138.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
33 014-5066-00 014-5066-00 - 2023 Renegade Muffler Cover--Orange
$21.39
37 015-1027-00 015-1027-00 - ECH980 Muffler
$154.99
41.1 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
41.2 015-9990-01 015-9990-01 - Muffler Gasket for 015-9990-00/015-9991-00
$10.99
41.3 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
41.5 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
41.6 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
41.7 015-8000-02 015-8000-02 - Spark Plug for ECV980 and ECH980
$7.69
41 015-9990-00 015-9990-00 - Kohler 38HP EFI 999 ECH 980
$4999.99
52 018-0053-00 018-0053-00 - 7/16-14 x 1 Hex Bolt Zinc
$2.99
55 018-0061-00 018-0061-00 - 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
$5.93
77 018-5007-00 018-5007-00 - 5/16-18 X 3/4 Button Head Sock et C/S 18-8 SS
$2.99
81 018-5052-21 018-5052-21 - 7/16-20x3.5 Hex Bolt GR 8 W/ Patch No Longer Available
Obsolete.
96 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
97 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
102 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
113 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
127 025-0076-00 025-0076-00 - Horizontal Engine Spacer
$9.89
138 026-8010-00 026-8010-00 - Pump Plate Horizontal Gas
$106.99
151 030-0075-00 030-0075-00 - 5/16-24 X 3/8 Set Screw
$2.99
171 033-8001-00 033-8001-00 - Renegade Horizontal Double V Pulley
$54.56
190 041-8001-00 041-8001-00 - Pump Belt (See Models Used On For Detail)
$80.24
192 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
209 057-5919-00 057-5919-00 - Renegade Clutch Bracket
$28.39
228 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
229 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
230 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
245 086-9009-00 086-9009-00 - Kohler ECH 980 Engine Adapter
$42.79
